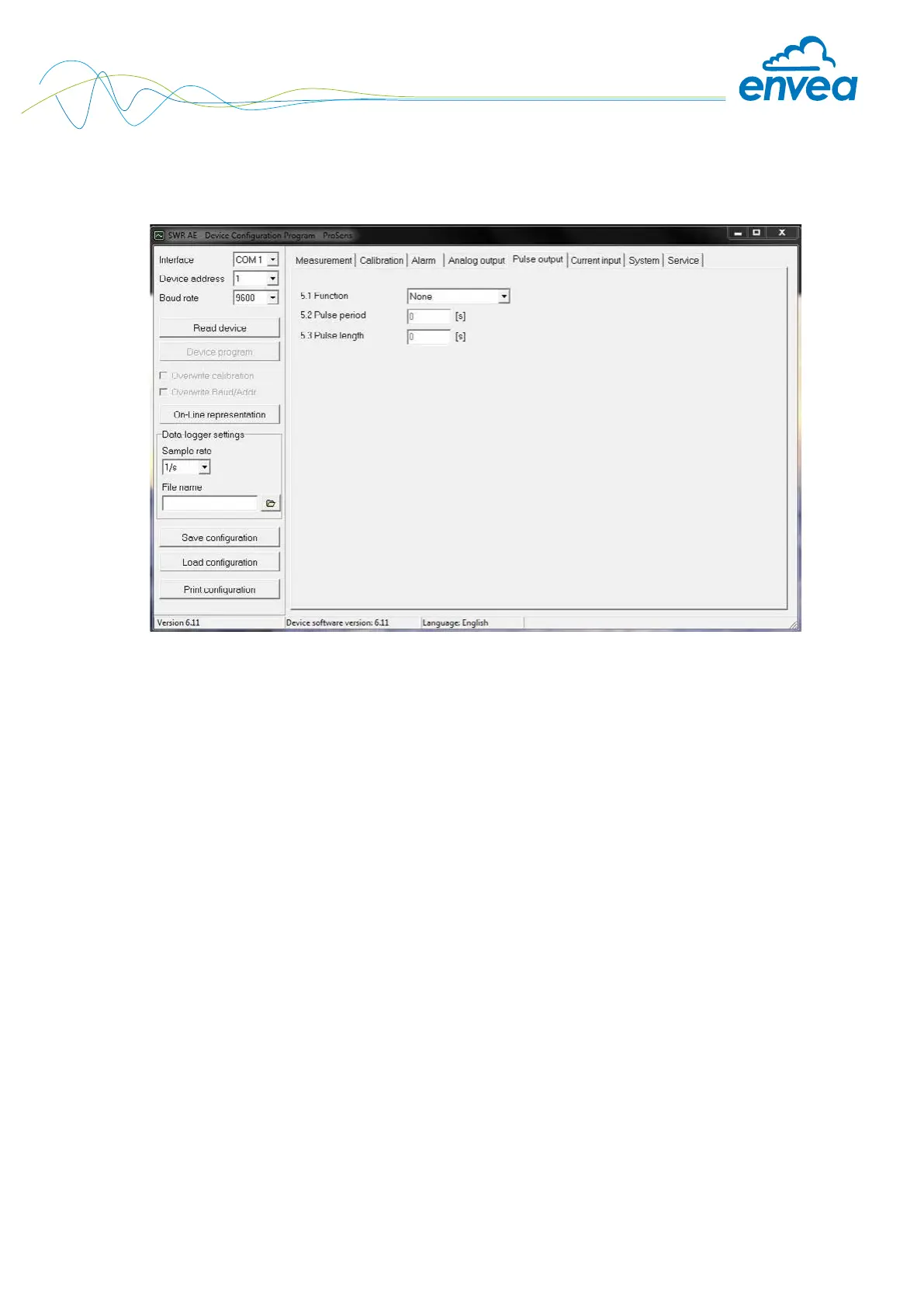

Tab 5: Pulse output
Passive signal for pulse cleaning or output of a totalisator.
5.1 Function Selection: OFF / Cleaning /
Quantity pulse OFF: No pulse output
Cleaning: Option for actuation of a solenoid
value for pneumatic air ushing.
5.2 Pulse period Input: 1 s … 600 s Duration between two pulses
5.3 Pulse length Input: 1 s … 60 s Length of the pulse
