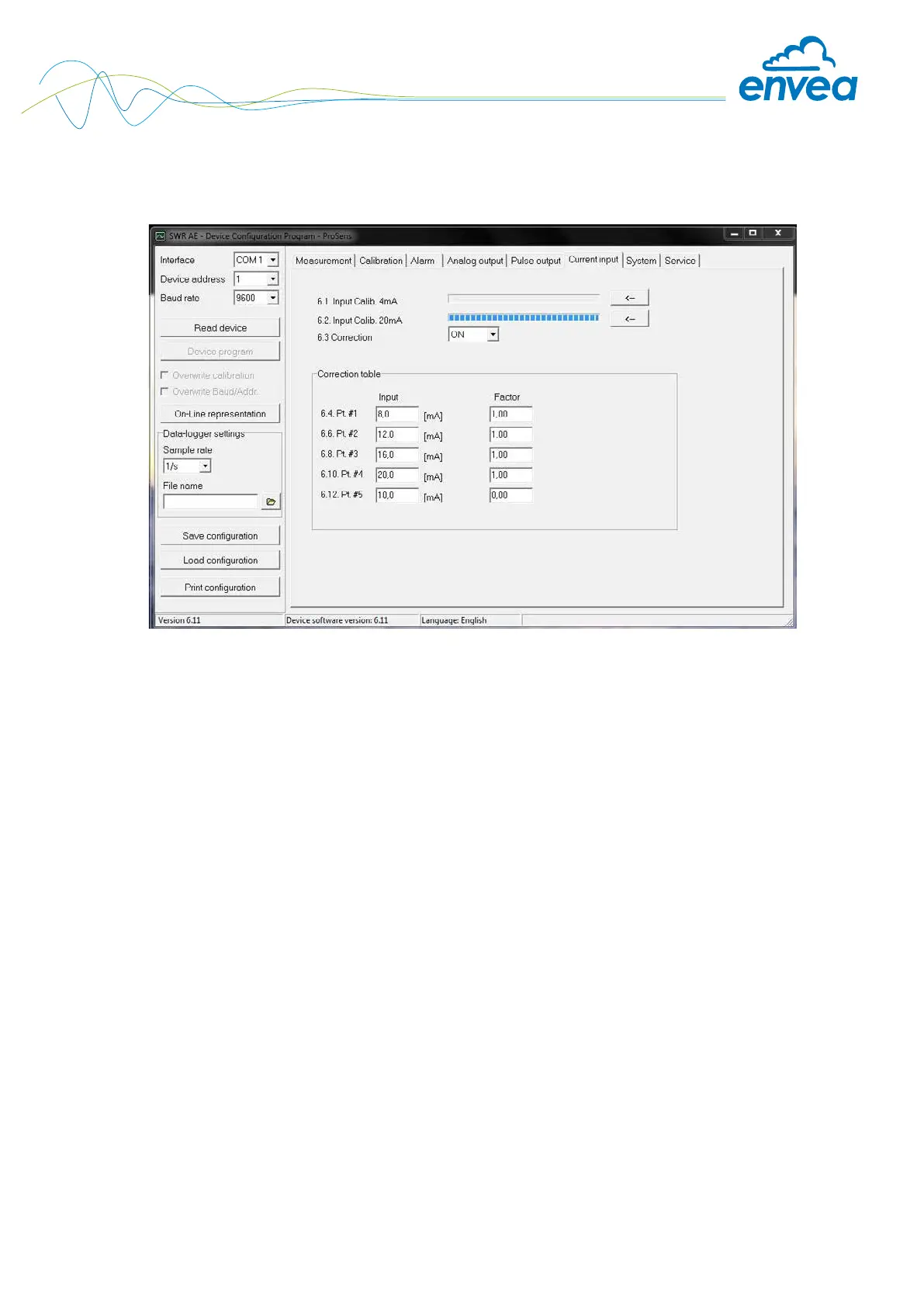

Tab 6: Current input
Option for auto-correction by external current signal. The signal is not electrically isolated.
6.1 Calibration 4 mA Selection:
Set input current The 4 mA signal can be read in via key
functions.
6.2 Calibration 20 mA Selection:
Set input current The 20 mA signal can be read in via key
functions.
6.3 Correction Selection: ON / OFF ON: Activation of the correction.
OFF: Deactivation of the correction.
6.4 P1 input Input: 4 mA … 20 mA Entry of the current that is to be used for
the correction.
6.5 P1 factor Input: 0.01 … 10 Factor for subsequent adjustment of the
actual measurement value.
6.n Pn input Input: 4 m A … 20 mA Option for further entry of current value and
correction factors.
6.n Pn factor Input: 0.01 … 10
To Next Page
