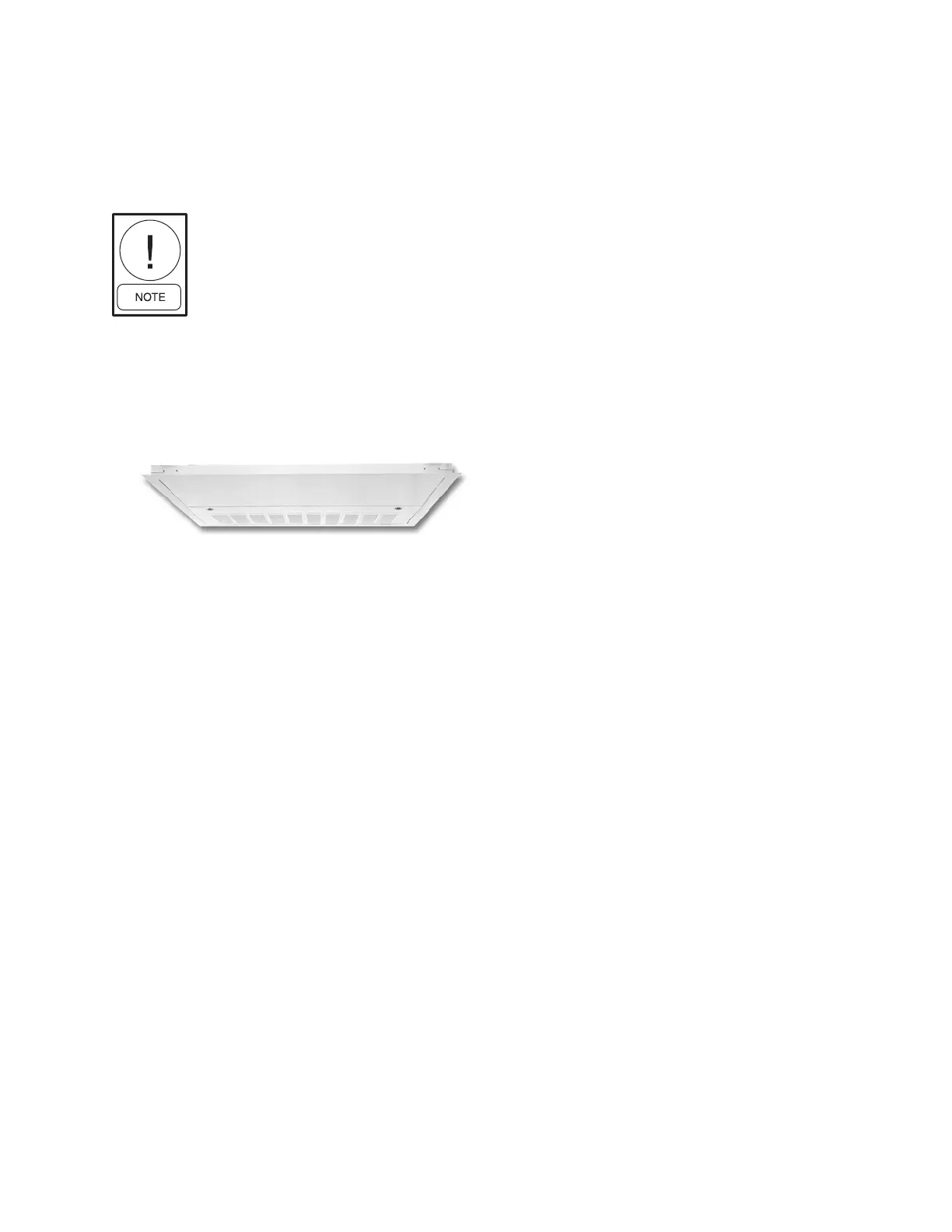

TELESCOPING BOTTOM PANEL
The telescoping bottom panel allows for fully recessing
the unit while permitting service access into the ceiling
plenum. The architectural ceiling panel is nished with
a durable powder coat paint.
Portions of the inlet louver not directly
below unit inlet may require cover-
ing in the eld on applications where
inltration of ceiling plenum air into
space is undesired. Telescoping skirt
and collar assembly must be eld ad-
justed to assure a proper t between
lter frame and louvered inlet panel
assembly. Refer to assembly submittal
drawings for specic dimensions.
START-UP
Before beginning any start-up operation, the start-
up personnel should familiarize themselves with the
unit, options and accessories, and control sequence to
understand the proper system operation. All personnel
should have a good working knowledge of general
start-up procedures and have the appropriate start-up
and balancing guides available for consultation.
The initial step in any startup operation should be a nal
visual inspection. All equipment, plenums, duct-work,
and piping should be inspected to verify that all systems
are complete and properly installed and mounted, and
that no debris or foreign articles such as paper or drink
cans are left in the units or other areas. Each unit should
be checked for loose wires, free blower wheel operation,
and loose or missing access panels or doors. Except as
required during start-up and balancing operations, no
fan coil units should be operated without all the proper
ductwork attached, supply and return grilles in place,
and all access doors and panels in place and secure.
A clean lter of the proper size and type must also be
installed. Failure to do so could result in damage to the
equipment or building and furnishings, and/or void all
manufacturers’ warranties.
Fan coils are not intended for temporary heat/cool or
ventilation. Units are not designed or equipped to
operate in dusty construction environments. Operation
of the units in conditions outlined above could result in
damage to the equipment or building and furnishings
and/or void all manufacturer’s warranties.
COOLING/HEATING SYSTEM
Prior to the water system start-up and balancing, the
chilled/hot water systems should be ushed to clean
out dirt and debris, which may have collected in the
piping during construction. During this procedure,
all unit service valves must be in the closed position.
This prevents foreign matter from entering the unit and
clogging the valves and metering devices. Strainers
should be installed in the piping mains to prevent
this material from entering the units during normal
operation.
During system filling, air venting from the unit is
accomplished by the use of the standard manual or
optional automatic, air vent tting installed on the coil.
In the case of the manual air vent tting, the screw
should be turned counterclockwise no more than 1-½
turns to operate the air vent. Automatic air vents may
be unscrewed one turn counterclockwise to speed initial
venting but should be screwed in for automatic venting
after start-up operations.Check to ensure that no leaks
are prevalent at the coils, coil connections, piping
packages, etc.
