Enviro HP Series User Manual

ENVIRO-TEC
20
FORM ET115.24-NOM1 (519)
HP Fan Calibration with ECM Variable Speed Motor

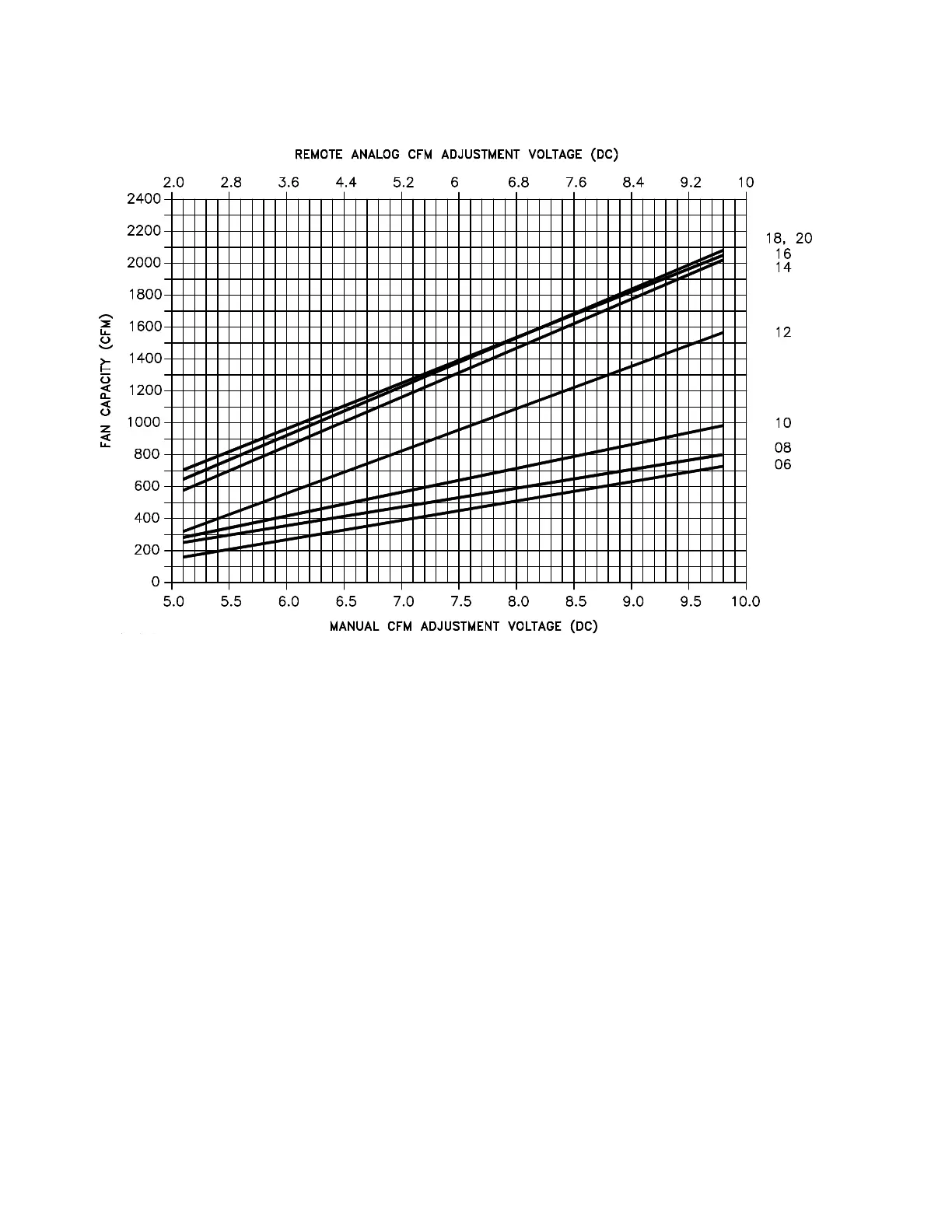

FIG. 2 - FAN CALIBRATION CURVES
NOTES:
1. MANUAL BALANCING: Do not set the manual CFM adjustment voltage lower than 5.0 VDC or higher
than 10.0 VDC. (For units shipped prior to April 2011, do not set voltage lower than 5.1 VDC or higher
than 9.9 VDC).
2. REMOTE BALANCING: Do not set the remote CFM adjustment voltage lower than 2.1 VDC or higher
than 10.0 VDC. (For units shipped prior to April 2011, do not set voltage lower than 2.1 VDC or higher
than 9.9 VDC).
3. WARNING: Input voltages which are less than or greater than the limits defined above may cause
erratic motor operation and eventual failure.
