6.6.2.4 Color Definitions

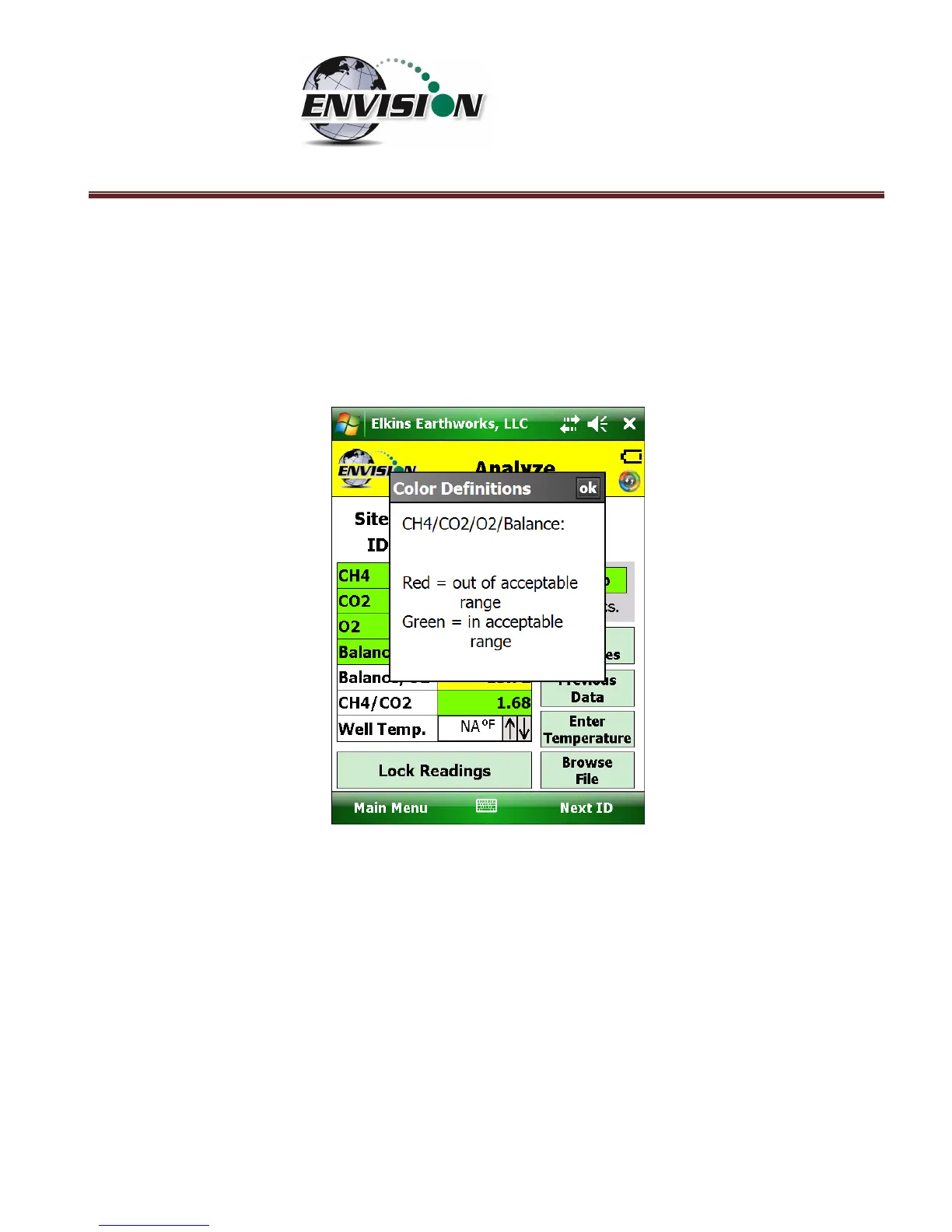

The Elkins Gas Analyzer software has been programmed to help the user make tuning decisions by using
acceptable ranges which have been set up using the Configuration Editor software. When the gas
sensor is in the acceptable range the gas quality text box will turn from red to green. The color key can
be displayed by touching the gas quality text box. Tap “OK” to close the color key.
These ranges are programmable for each well by utilizing the Configuration Editor as detailed in section
0.
