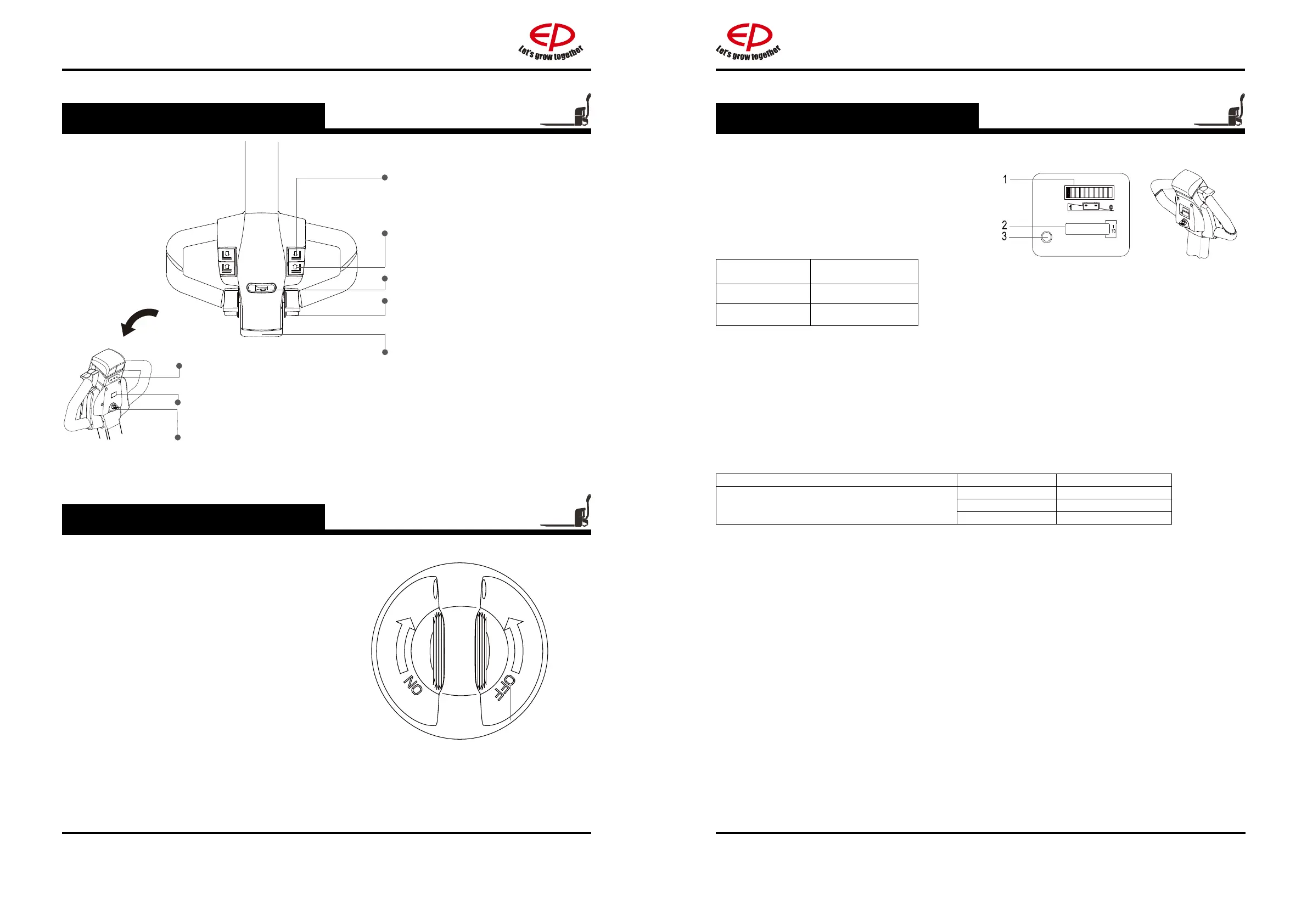

1.1.4 Display instrument
LCD (1) displays the residual electric charge
of the battery;
LCD (2) displays the total operation time of
the truck;
LCD (3) is a fault indicating light.
DISPLAY DESCRIPTION
Continuous red Normal
Flashing Truck failure.
Refer to relevant descriptions in “discharge
indicator and hour meter” for the display
functions of LCD (1).
The LCD display (2) show battery residual capacity.
When the truck has been released via the key switch, the battery charge status is displayed.
The colour of the LCD (2) represent the following conditions:
Component LCD colour residual capacity
Standard battery residual capacity
Green 70-100%
Orange 30-60%
Flashing Red 0-20%
If residual battery capacity is below 30%, One ashing Red segments.
If residual battery capacity is below 20%, Two ashing Red segments. The battery must be
charged.
Operating hours display(1)
Display range between 0.0 and 99,999.0 hours. Travel and lifting are logged. This is a backlit
display.
Power up test on power up the display shows:
• the operating hours.
• the charge status.
1.1.2 Control handle
Control handle
Lowering button
Lower loading parts
Lifting button
Lift loading parts
Horn button
Send out sound warning signals
Driving switch
Controls travel direction and speed
Emergency reverse button
Through touching the button, truck
drives away from operator.
Display instrument
Display the electric quantity of the truck
Key switch
Connect and interrupt control current
Creep speed button
Connect and interrupt control current.
• When the key rotates to gear “OFF”, the
control current of the truck will be interrupted;
• When the key rotates to gear “ON”, the control
current of the truck will be connected.
1.1.3 Key switch
