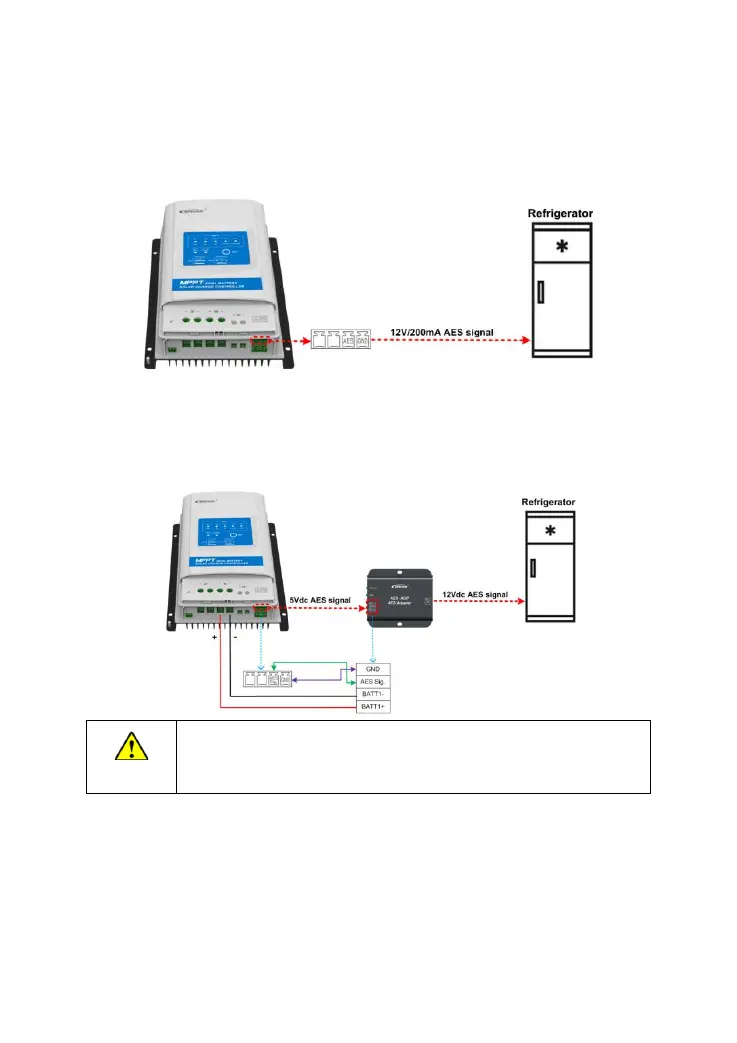

2) AES port of DR1106/2106/3106N-DDB/DDS
The AES port and the RS485 port are independent. The AES port output is
12V/200mA, and the voltage is the battery voltage. Connect the refrigerator. Refer to
the below picture.
3) AES signal port of DR1206/2206/3206/2210/3210N-DDB/DDS
The AES signal port and RS485 port share the power of 5VDC/Max.200mA. Connect the
accessories (AES-ADP adapter) when connecting the refrigerator; refer to the below
picture.
The AES signal port and RS485 port share the power of
5VDC/Max.200mA. The MT11 power consumption is 13mA when it
is ON and 4mA when it's off.
4) (Optional) AES-ADP adapter
The AES-ADP adapter converts the 5V-AES signal of the solar controller into a
12V-AES signal for the refrigerator. AN AES-ADP ADAPTER IS NECESSARY when
DR1206/2206/3206/2210/3210N-DDB/ DDS connects the refrigerator.
Appearance
