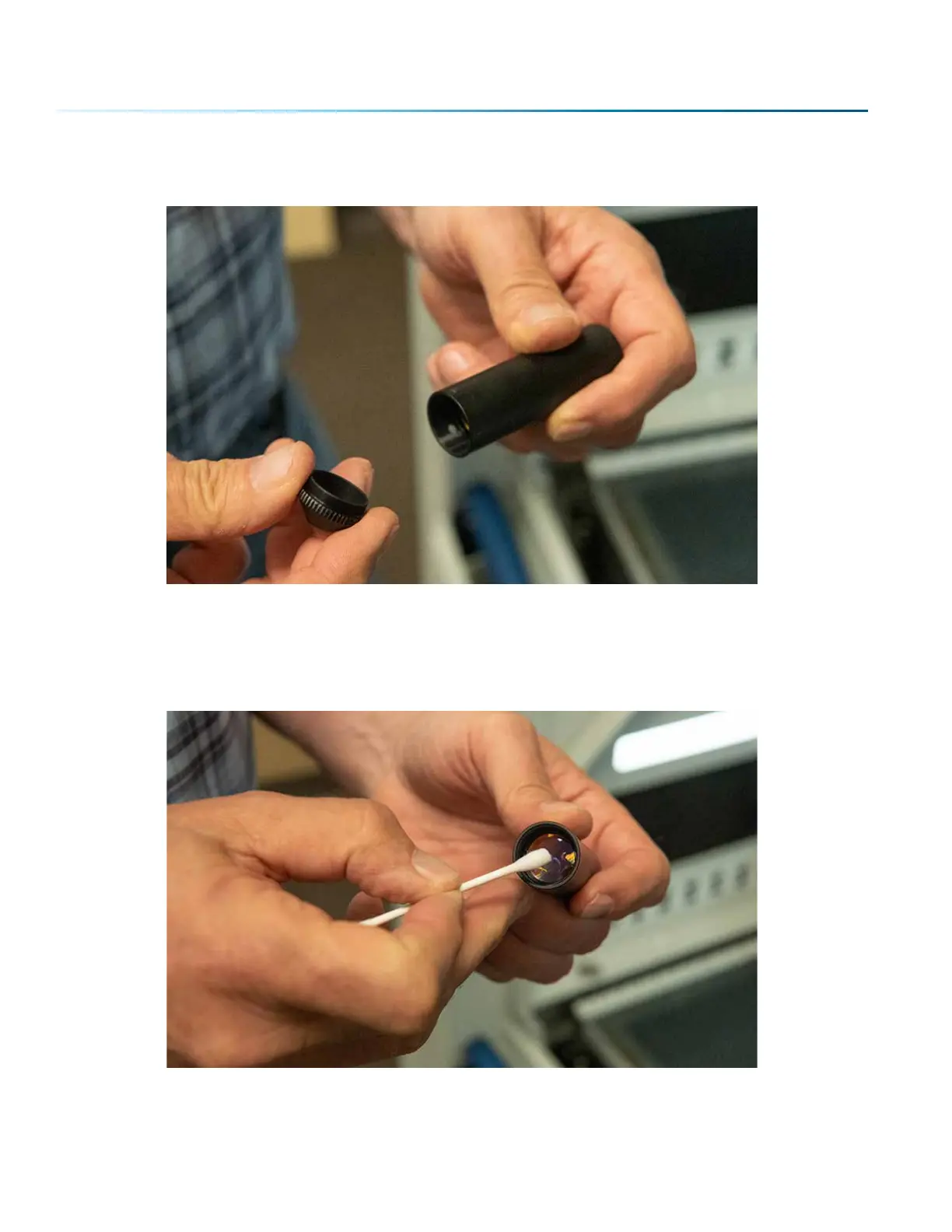

Once the captive screw comes out you may remove the lens tube. Twist o the cone piece at the bottom

of the tube to reveal the lens.

To clean the lens, use a high-quality cotton swab moistened with the optics cleaner supplied in the

accessory kit. Please read the label on the bottle carefully.

- 160 -

SECTION 10: SYSTEM MAINTENANCE
