Printing Error Message

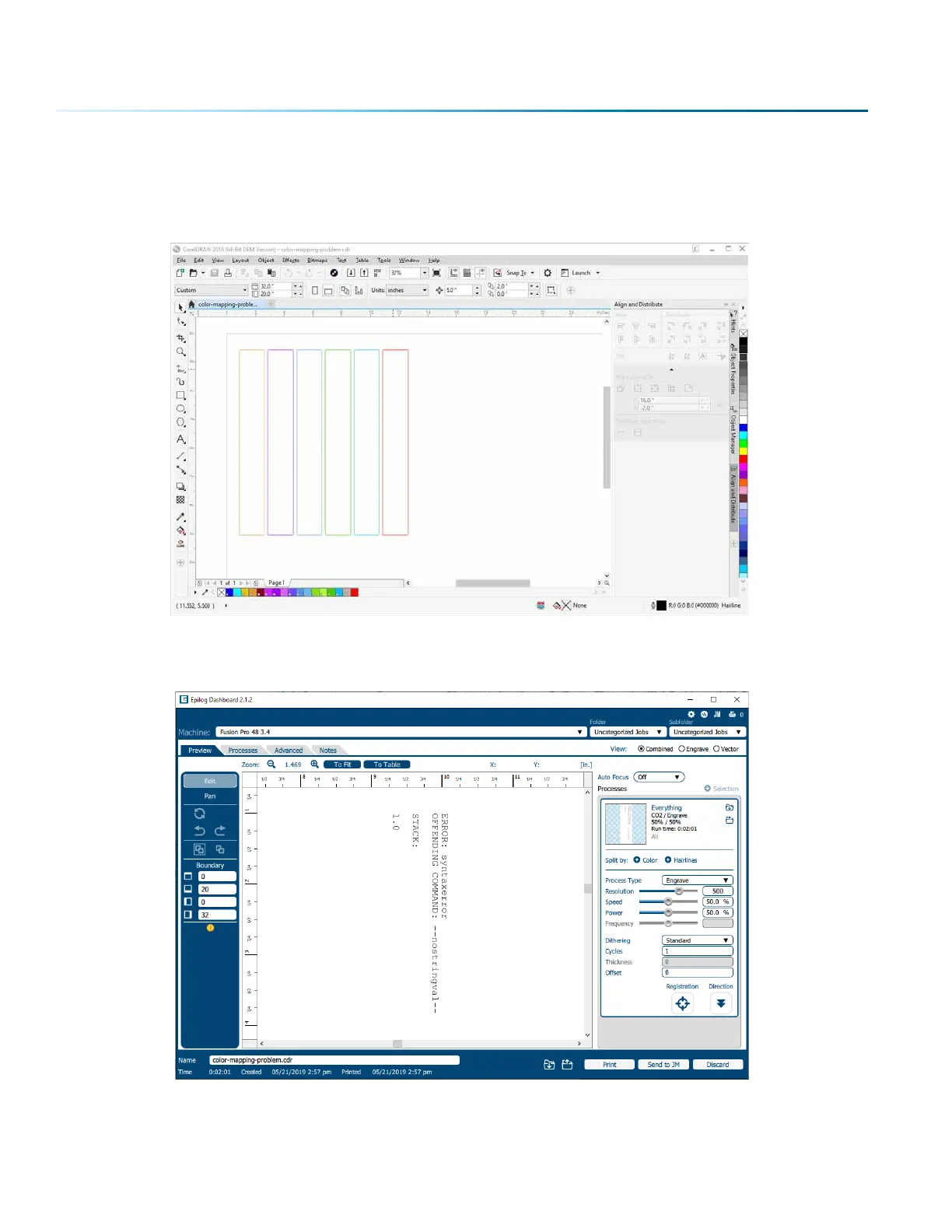

When printing coloul artwork to the Epilog Engraver, you may see an error message appear in the

Dashboard instead of your artwork.

The error message may look something like the example below in the Dashboard:

- 90 -

SECTION 5: THE LASER DASHBOARD

Default Chapter3
- Table of Contents3
Fire Warning7
Introduction8
- How to Use this Owner's Manual8
- Icons Used in this Manual8
Section 1: Safety9
- Laser Safety9
- Electrical Safety10
- Safety Features and Regulatory Compliance11
- Do and Don't17
Section 2: Getting Started19
- 1 Unpacking the Laser System20
- 2 Choose Where to Locate the System22
- 3 Connecting the Exhaust23
- 4 Connecting Electrical Power25
- 5 Connect the Laser to Your Computer25
- 6 Set the Fusion Pro's IP Address26
- 7 Sign up for Driver Updates and Register Your System27
Section 3: Software Installation29
- Epilog Job Manager Instructions29
- Uninstalling the Previous Job Manager29
- How to Install the Epilog Software Suite31
- Windows 8/10: Ethernet Installation37
- Windows 8/10: USB Installation39
- Troubleshooting the Job Manager39
- Important Job Manager Notes40
Section 4: the Job Manager41
- Using the Epilog Job Manager41
- Printing to the Epilog Job Manager42
- Organizing Your Print Jobs43
- Previewing Your Job46
- Searching for a Job47
- Finding Job History47
- Vector Sorting49
- Material Settings Tab50
- Job Settings Tab53
- Using the Material Setting Configurations55
- Changing Program Settings57
- Troubleshooting the Job Manager58
Section 5: the Laser Dashboard61
- Setting up Coreldraw for the Laser62
- Sending Your First Project63
- Setting up Adobe Illustrator for the Laser67
- Dashboard Settings69
- Presetting Your Cut Lines71
- Placing Your Artwork71
- Dividing Your Job into Processes72
- Editing Artwork with Live View81
- Saving Your Settings84
- File Settings85
- Settings in Detail86
- Guidelines88
- Processes Tab91
- Advanced Tab92
- Notes Tab92
- Additional Coreldraw Laser Dashboard Features93
- File Setup Faqs94
- Troubleshooting the Laser Dashboard94
Section 6: Control Panel99
- Display99
- Joystick107
- Job Storage107
Section 7: Quick Start Guide109
- Artwork Setup109
- Setting a Vector Cutting Line111
- Resolution111
- Landscape or Portrait113
Section 8: System Features115
- IRIS TM Camera Positioning System115
- Touch Screen115
- Air Assist116
- Auto Focus Vs Manual Focus116
- Key Switch118
- Image Dithering118
- Red Dot Pointer120
- Emergency Stop Button120
- Front Access Door120
- Task Plate/Vacuum Hold-Down Table121
- Exhaust Plenum121
- Center Engraving122
- Registration Camera125
Section 9: Optional Features133
- Vector Cutting Table/Slat Table133
- Fusion Pro Rim-Drive Rotary Attachment134
- 3-Jaw Chuck Rotary Attachment140
- Photolaser Plus154
Section 10: System Maintenance163
- Reduce Fire Risk with a Clean Laser163
- Cleaning the Optics165
- Replacing the Lens170
- Cleaning the Exhaust Plenum171
- Laser Tube171
- Removing the Pedestal from the Fusion Pro172
Section 11: Upgrading Firmware179
- How to Upgrade Your Firmware179
Section 12: Engraving Materials185
- CO2 Laser Materials/Techniques185
- Fiber Laser Materials/Techniques199
Section 13: Specifications203
- Fusion Pro Laser Technical Specifications203
- Compatibility204
- Recommended PC204
- About the CO2 Laser Source205
- About the Fiber Laser Source206
- Federal Communications Commission (FCC) Notice206
Section 14: Technical Support207
- Contacting Technical Support207
- Frequently Asked Questions208
- Join Epilog Laser's Online Community210
Section 15: Material Suppliers211
- Industry Material Supplier List211
Appendix A: Warranty Statement215
- Warranty Statement for the Fusion Pro Laser215
Appendix B: Material Settings217
- Fusion Pro Suggested Material Settings (CO2)217
- Fusion Pro Suggested Material Settings (Fiber)220
Appendix C: System Calibration223
- Camera Calibration223
- Calibrating the Auto Focus227
Index237
