Installing Options
21
4. Identify the installation slots for the Hard Disk Drive,
memory modules, and ROM module.
To install the Hard Disk Drive, proceed to the next section.
To install memory modules, skip to “Installing a memory
module” on page 23.
To install a ROM module, skip to “Installing a ROM Module”
on page 25.
Installing the Hard Disk Drive
The optional Hard Disk Drive allows you to expand the printer’s
network buffer, giving you additional memory for graphics
processing, and allowing faster multi-page, multi-output sorting.
This option also allows you to use the following functions:
❏ Storing print jobs using the Reserve Job function.
❏ Storing form overlay data using the form Overlay function.
c
Caution:
Before you install the Hard Disk Drive, be sure to discharge any
static electricity by touching a grounded piece of metal.
Otherwise, you may damage static-sensitive components.

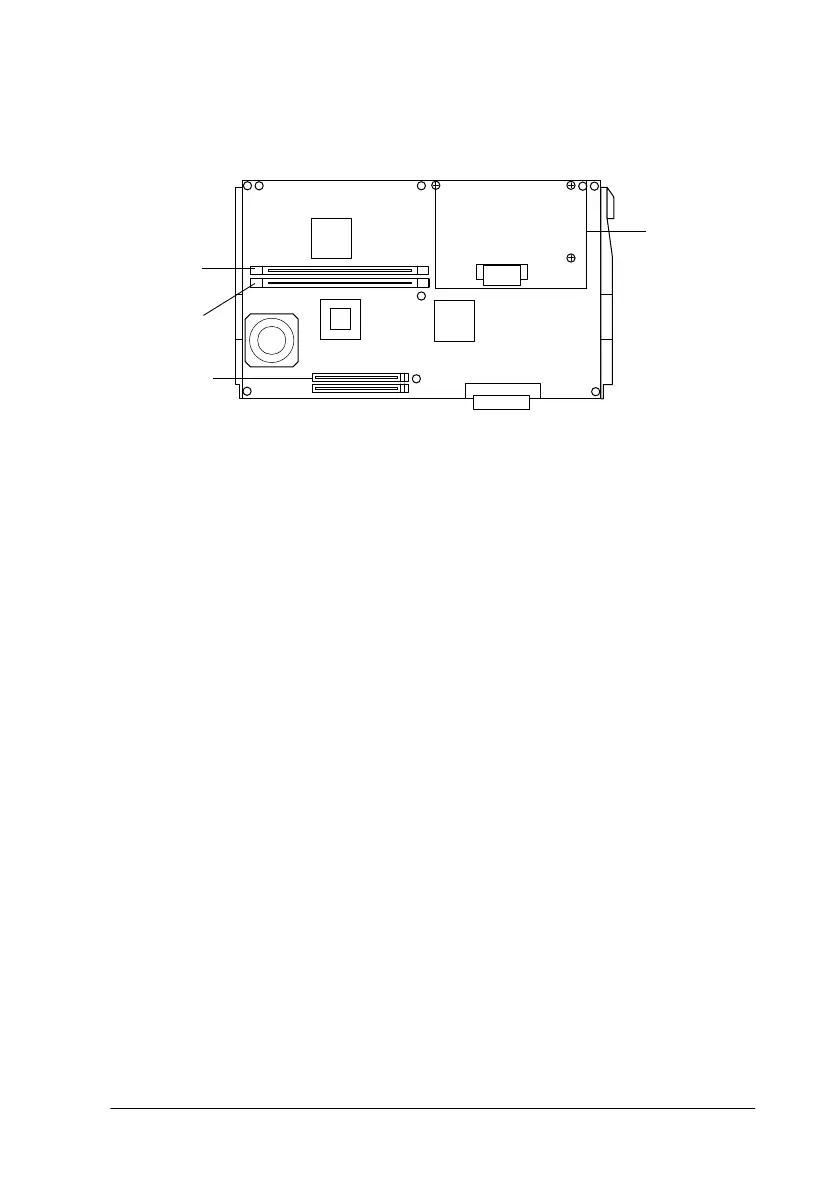

Hard Disk
Drive Socket
Memory
slot S0
ROM slot A
Memory
slot S1
