Installing Options
23

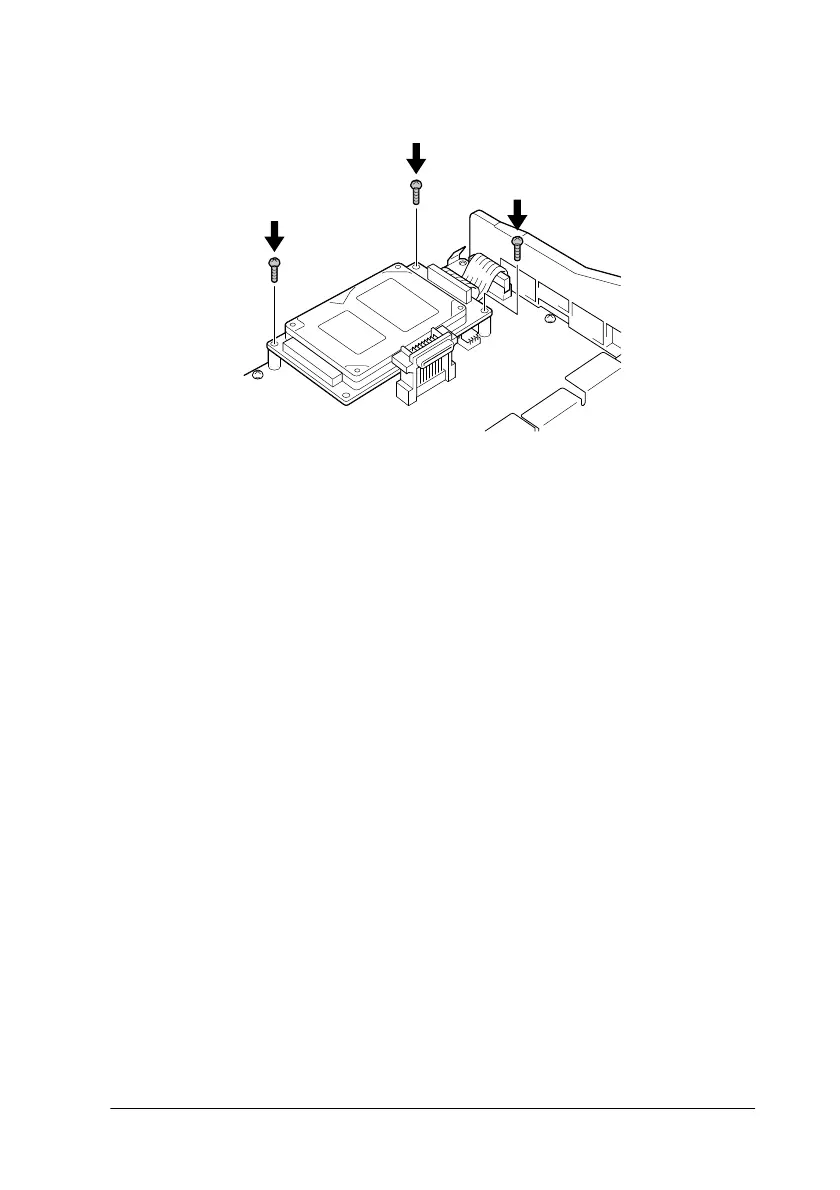

3. Secure the drive with the screws provided.
Note:
Be careful not to damage the cable when tightening the screws.
c
Caution:
Do not remove any modules from the circuit board. Otherwise,
the printer will not work.
If you do not install other options, skip to “Replacing the circuit
board tray” on page 27.
Installing a memory module
Increasing the printer’s memory allows you to print complex and
graphics-intensive documents. You can increase printer memory
up to 1024 MB.
This printer has two Memory slots, but one slot has a 64 MB
DIMM already installed in it at the time of manufacture. To
increase printer memory to more than 576 MB, you have to
remove the original 64 MB DIMM first and then install two
optional DIMMs.
