Epson BrightLink 455Wi Installation Guide

11
English
(8) After confirming your image size, use tape or a pencil to mark the distance (b) from the top of
the image area on the board to the bottom of the wall plate.
(9) Align the line (horizontal) on the template sheet with the (b) mark, then align the center
line on the template sheet with the center of the image area. Follow the instructions on page
17 to install the projector.
The tables on the following pages provide installation information for all supported image sizes. The
minimum ceiling height is based on an image 30 inches from the floor; if the image is lower, the minimum
ceiling height is reduced by the corresponding measurement.

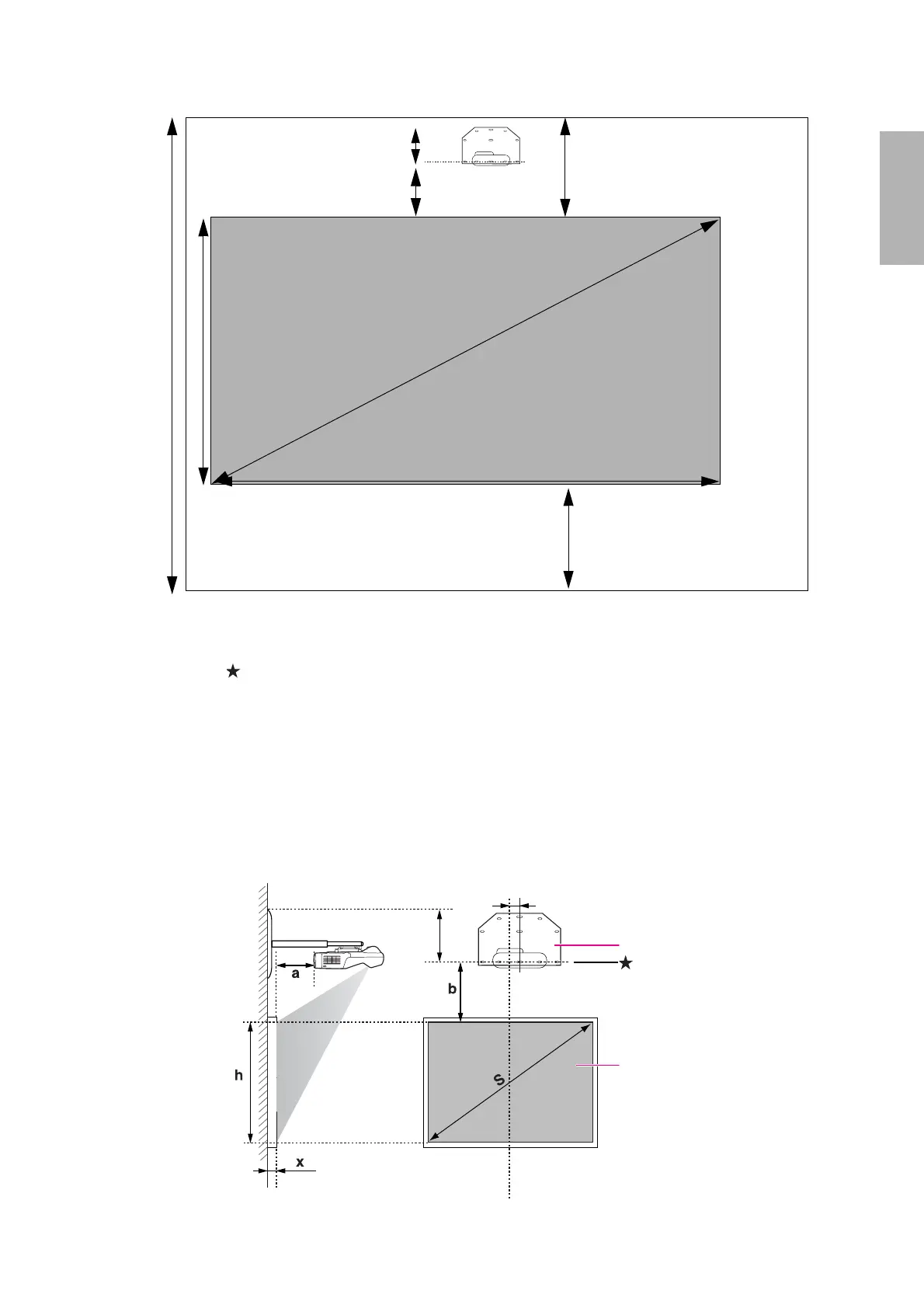

Use the worksheets, the illustration below, and the information in the tables on the following pages to
determine the projection distance and placement of the wall plate. The recommended range for projection
distance (a) is 2.76 to 14.57 inches (7 to 37 cm).
10 in. (254 mm) —height
of wall plate plus cover
Required distance from top
of image area to wall plate (b)
Diagonal image
size (S)
Ceiling
height
Distance from ceiling to
top of image area (c)
Width of image area (w)
Distance from floor to
bottom of image area (f)
Height of
image area (h)
Wall plate
Projection surface
Offset value for the position of
the center of the screen and the
center of the wall plate
Distance from wall of projection
surface or whiteboard
2.55 in. (65 mm)
10 in. (254 mm)
Line on template

Epson BrightLink 455Wi Specifications

Projection

white light output	2500 lumens
color light output	2500 lumens
native resolution	1280 x 800 (WXGA)
throw ratio range (16:10)	0.37 – 0.50
throw ratio range (4:3)	0.44 – 0.59
throw ratio range (16:9)	0.37 – 0.50

Lamp Specifications

lamp type	E-TORL 230 W UHE
lamp life (ECO mode)	up to 3500 hours
lamp life (normal mode)	up to 2500 hours

Power

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption	363 W
network on standby power	10 W
network off standby power	0.3 W

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)	35 dB
fan noise (ECO mode)	28 dB

Weight and Dimensions

dimensions	14.5" x 19.0" x 6.1" (W x D x H)
weight with slide plate	14.1 lb
weight without slide plate	12.9 lb
