4. Positioning the Projector
The BrightLink 455Wi can project up to 96 inches diagonally for a WXGA image or 85 inches diagonally for an
XGA image. You can project onto a pre-installed whiteboard or directly onto a plain wall. The height of the
included wall mount determines the maximum image size and how high the image appears on the wall or
whiteboard. The distance of the projector from the wall (once it is mounted on the adjustable arm of the
setting plate) also affects image size and position.
If you are planning to project on a whiteboard, the image may not fill the entire board, depending on the
aspect ratio. If you match the image height to the board’s height, gaps may appear on the sides of the board.
Use the following worksheets to determine the proper location of the wall plate on the wall. If you are
projecting onto a pre-installed whiteboard, use the worksheet below. If you are projecting on a plain wall, use
the worksheet on page 10.
Installation worksheet for projecting on a pre-installed wall-mounted
board
(1) Measure the ceiling height (distance from the floor to the ceiling).
(2) Measure the height of the board’s image area (h).
(3) Measure the width of the board’s image area (w).
(4) Measure the distance from the floor to the bottom of the board’s
image area (f).
(5) Measure the distance from the ceiling to the top of the board’s image area (c).
(6) Measure the thickness of the board (x).
_____
_____ (h)
_____ (w)
_____ (f)
_____ (c)
_____ (x)

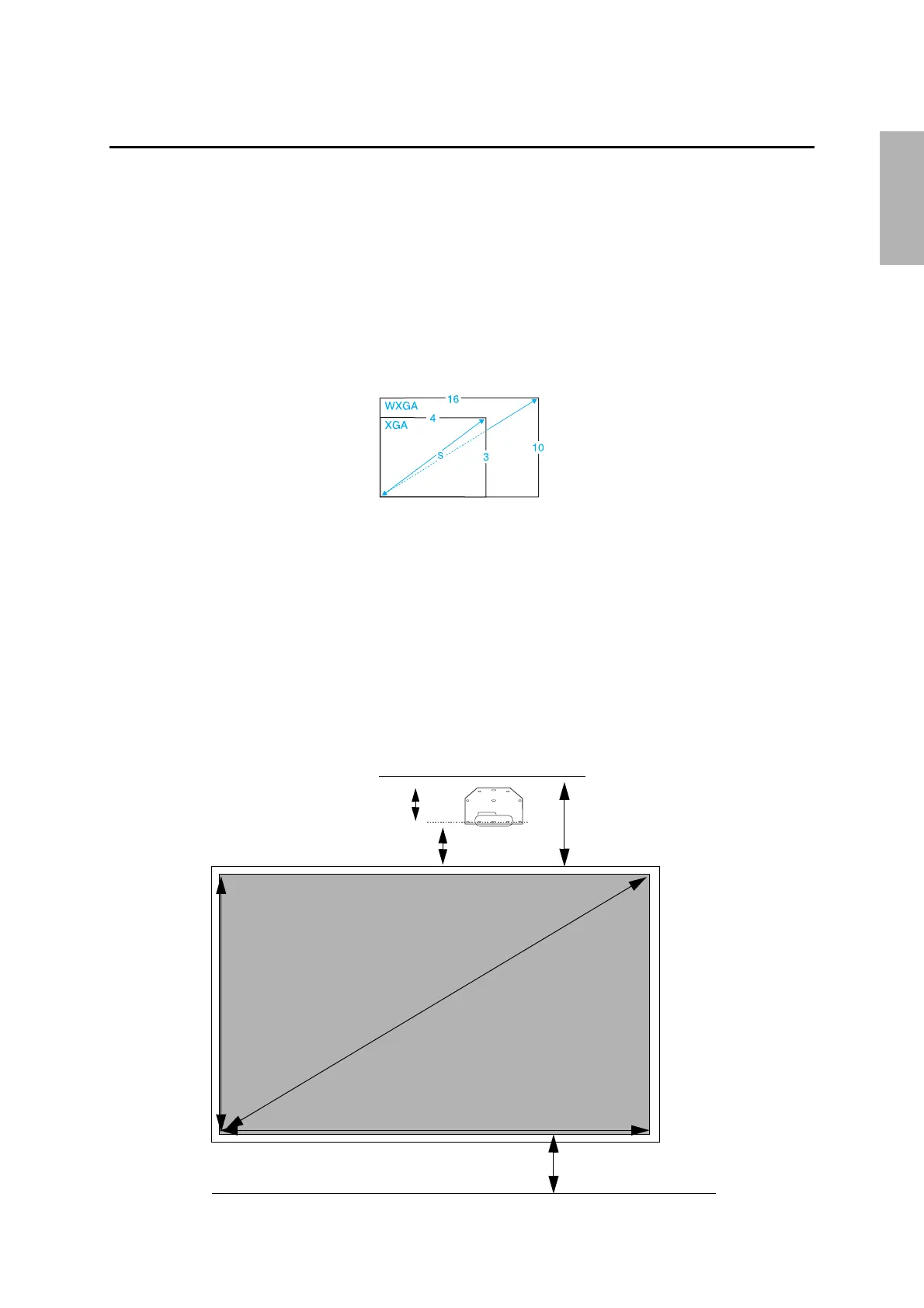

10 in. (254 mm)—height of
wall plate plus cover
Required distance from top
of image area to wall plate (b)
Diagonal size of
image area (S)
Height of
image area (h)
Distance from ceiling to
top of image area (c)
Width of image area (w)
Distance from floor to
bottom of image area (f)

Epson BrightLink 455Wi Specifications

Projection

white light output	2500 lumens
color light output	2500 lumens
native resolution	1280 x 800 (WXGA)
throw ratio range (16:10)	0.37 – 0.50
throw ratio range (4:3)	0.44 – 0.59
throw ratio range (16:9)	0.37 – 0.50

Lamp Specifications

lamp type	E-TORL 230 W UHE
lamp life (ECO mode)	up to 3500 hours
lamp life (normal mode)	up to 2500 hours

Power

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption	363 W
network on standby power	10 W
network off standby power	0.3 W

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)	35 dB
fan noise (ECO mode)	28 dB

Weight and Dimensions

dimensions	14.5" x 19.0" x 6.1" (W x D x H)
weight with slide plate	14.1 lb
weight without slide plate	12.9 lb
