Epson BrightLink 455Wi Installation Guide

25
English

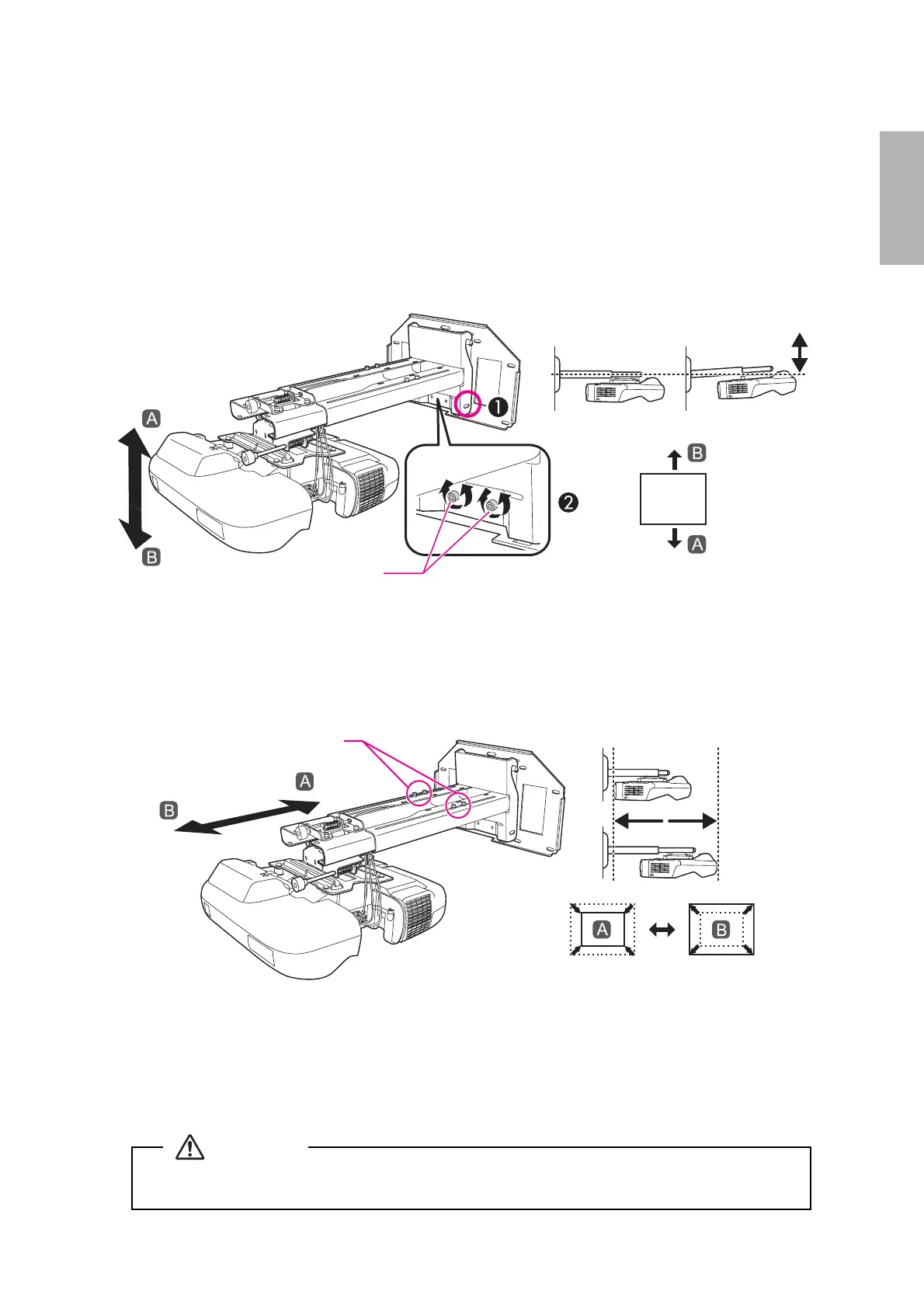

H Adjust the vertical position
(1) Adjust the vertical position, then tighten the two M8 x 15 mm hexagon socket head cap
bolts on the sides of the setting plate (
A).
(2) Tighten the two M8 x 45 mm hexagon socket head cap bolts at the bottom of the setting
plate to support your vertical adjustment (
B).
The projected image is raised or lowered accordingly. After you make this adjustment, you may need to
readjust the vertical tilt, as described on page 24.
I Adjust the forward/backward slide
Loosen the four screws and adjust the slider of the setting plate.
After you finish making all of the adjustments in steps
E to I, tighten the screws.
J Turn off the display of the test pattern or computer image
Press the Esc button on the remote control or control panel to turn off the test pattern.
M8 x 45 mm
hexagon socket
head cap bolts (2)
Screws (4)
Tighten all screws firmly. If the screws are not tightened firmly, the projector or setting plate
may fall and cause personal injury or property damage.
Warning

Epson BrightLink 455Wi Specifications

Projection

white light output	2500 lumens
color light output	2500 lumens
native resolution	1280 x 800 (WXGA)
throw ratio range (16:10)	0.37 – 0.50
throw ratio range (4:3)	0.44 – 0.59
throw ratio range (16:9)	0.37 – 0.50

Lamp Specifications

lamp type	E-TORL 230 W UHE
lamp life (ECO mode)	up to 3500 hours
lamp life (normal mode)	up to 2500 hours

Power

power supply voltage	100 – 240 V ±10%, 50/60 Hz
power consumption	363 W
network on standby power	10 W
network off standby power	0.3 W

Operating Environment

operating temperature	41 ˚ to 95 ˚F (5 ˚ to 35 ˚C)
fan noise (normal mode)	35 dB
fan noise (ECO mode)	28 dB

Weight and Dimensions

dimensions	14.5" x 19.0" x 6.1" (W x D x H)
weight with slide plate	14.1 lb
weight without slide plate	12.9 lb
