Epson DM-D500 Technical Reference Guide

42

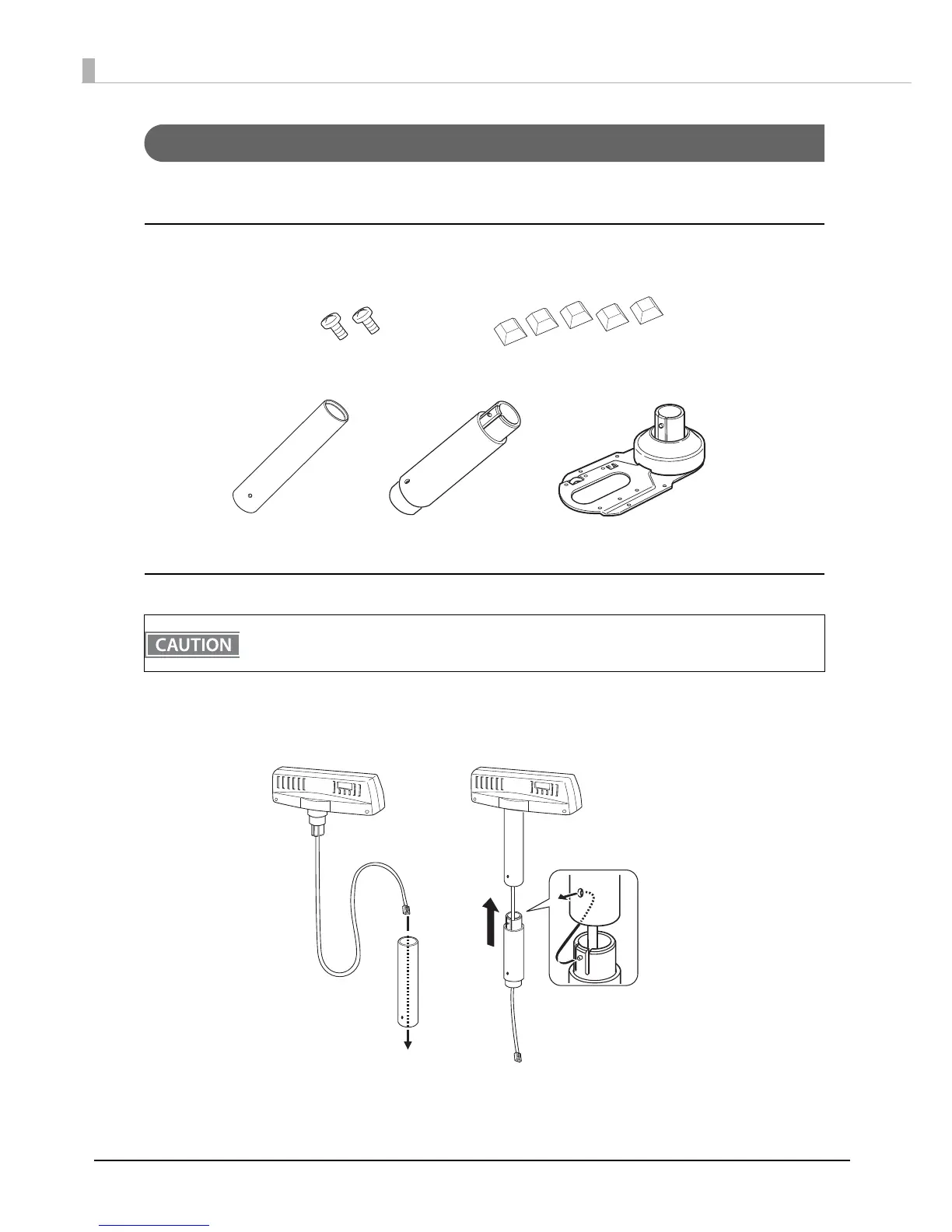

Attaching to DP-502 (TM-U950)
Attach DM-D500 directly to TM-U950 using DP-502.
Required items
The following are used to attach DM-D500 to TM-U950. These items are supplied with DP-502.
Attaching the customer display
1
Pass the DM-D500 connection cable through support C and insert the customer dis-
play into support C.
When using the extension support B, insert support B into support C all the way in until it clicks.
When connecting or disconnecting a cable, be sure the customer display and system are turned off.
Fixing plate A
Support B (extension)
Support C
Rubber feet (square)
Fixing screws for metal plate
When using support B (extension)
