System Configuration
Connection Patterns
There are several connection patterns to choose from depending on the customer's system and type of TM
printer to be used simultaneously.

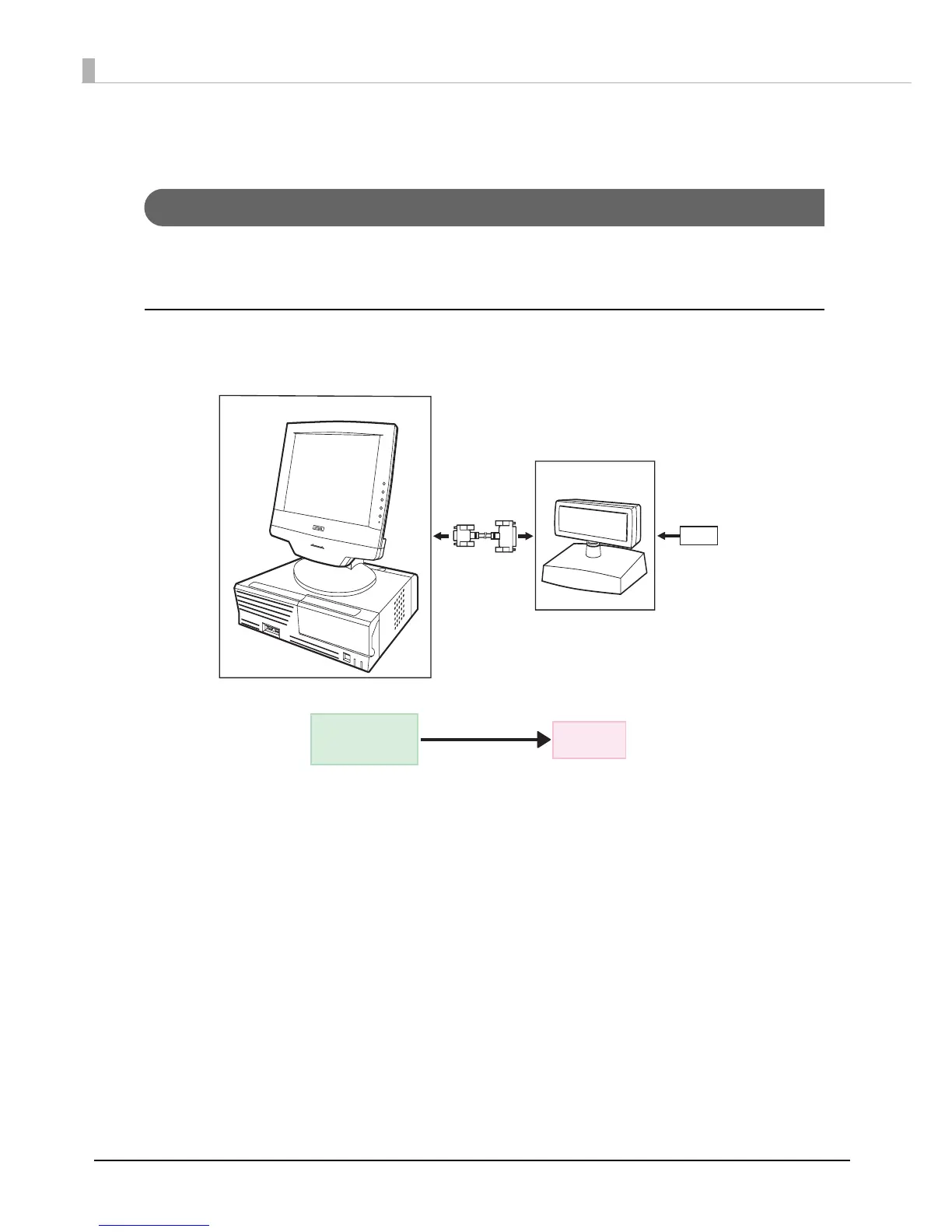

Stand-alone connection (Serial)
The stand-alone connection uses one serial port of the computer for the customer display. It requires the DP-
501 dedicated stand.
PS-180
DM-D500 + DP-501
Computer
Serial
Data flow in stand-alone connection
Computer
DM-D500
Serial
