Epson ds-570w User Manual

Back

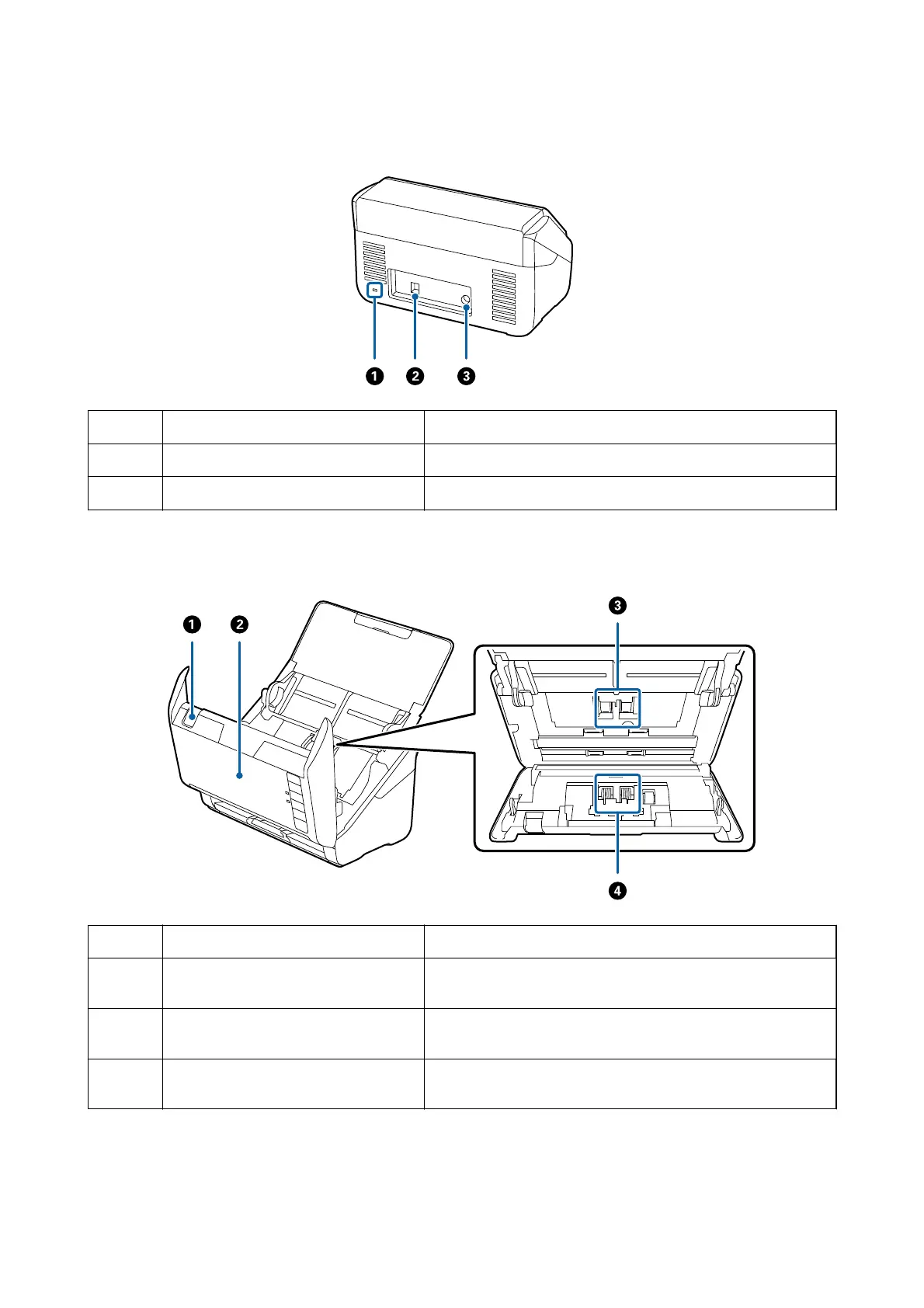

A
Security slot Inserts a security lock for theft prevention.
B
USB port Connects a USB cable.
C
DC inlet Connects the AC adapter.
Inside
A
Cover open lever Pull the cover open lever and open the scanner cover.
B
Scanner cover Pull the cover open lever and open the scanner cover when
cleaning inside of the scanner and removing jammed paper.
C
Pickup roller Feeds originals. This needs to be replaced when the number of
scans exceeds the service number of papers.
D
Separation roller Feeds originals separately one by one. This needs to be replaced
when the number of scans exceeds the service number of papers.
Related Information
&
“Cleaning Inside the Scanner” on page 91
&
“Replacing the Roller Assembly Kit” on page 96
User's Guide
Scanner Basics
11

Epson ds-570w Specifications

General

Optical Resolution	600 dpi
ADF Capacity	50 sheets
Duplex Scanning	Yes
Supported Operating Systems	Windows, Mac OS
Image Sensor	CIS (Contact Image Sensor)
Maximum Resolution	1200 dpi
Scan Speed (Color, A4, 300 dpi)	35 ppm / 70 ipm
Scan Speed (Black & White, A4, 300 dpi)	35 ppm / 70 ipm
Scanner Type	Sheetfed
Connectivity	Wi-Fi
Scan Speed	35 ppm
Scan to	Email, Cloud, USB
Scanning Method	Duplex
Interface	USB 3.0, Wi-Fi Direct
Daily Duty Cycle	4, 000 pages
Maximum Document Size	8.5 x 240 inches
