Projector Parts and Functions
23
Name Function
B
Battery indicator Press the button on the side of the pen to indicate the
remaining battery power.
• When the battery is charged, the indicator turns blue
until you release the button.
• When the battery is running low, the indicator
flashes blue until you release the button.
• Does not light when the battery is exhausted. Change
the battery.
C
Button Performs function assigned as the Pen Button
Function setting in the projector's Interactive menu.
Press the button to perform a right-click operation
while using the pen as a mouse.
D
Strap attachment
point
Allows you to attach a commercially available strap.
E
Battery cover Open this cover when replacing the battery.
gg Related Links
• "Replacing the Interactive Pen Tip" p.249
• "Using the Interactive Pens" p.91
• "Installing Batteries in the Pens" p.46

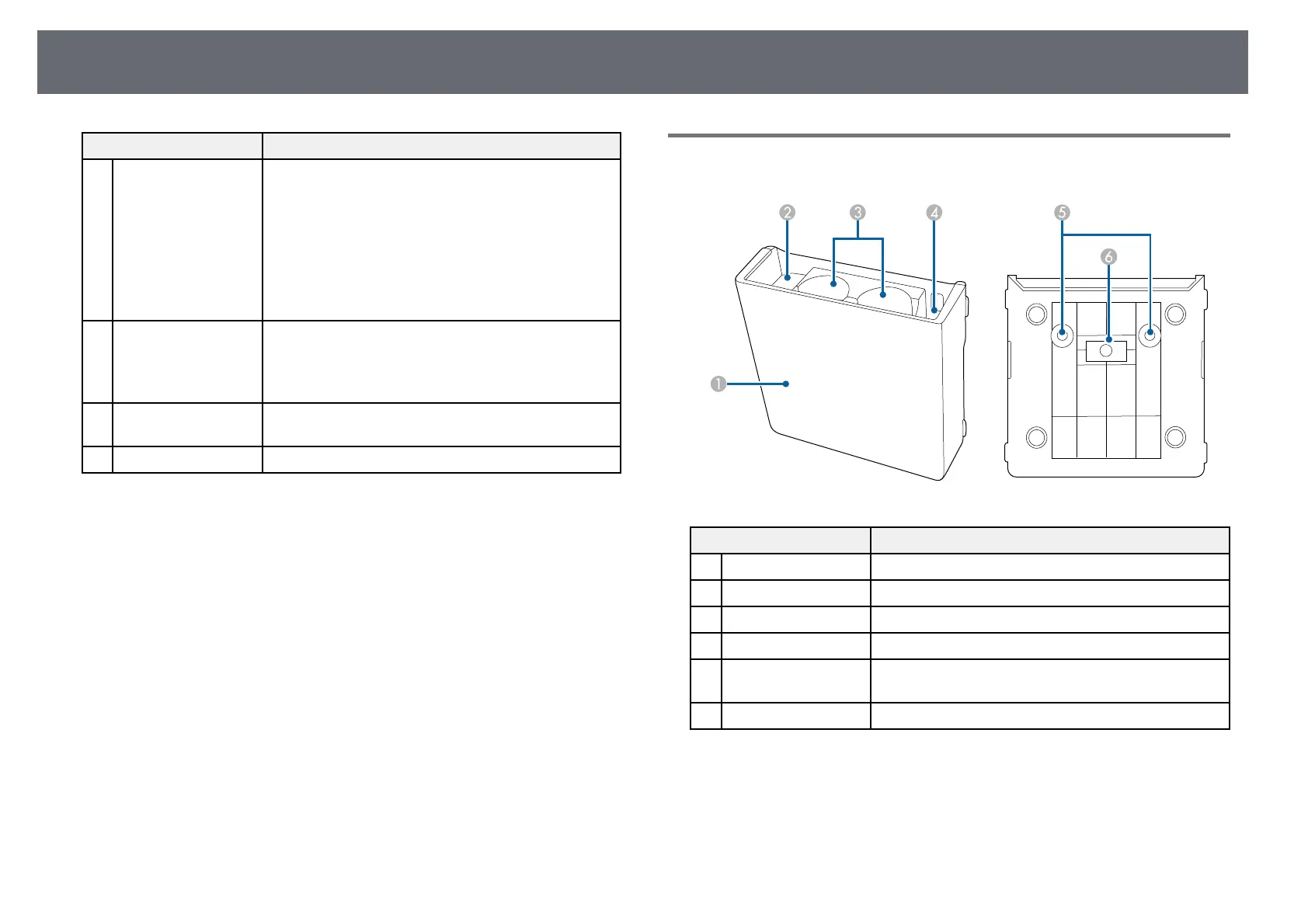

Projector Parts - Pen Stand
Name Function
A
Front cover Attach it after installing the pen stand.
B
Pen tip storage space Keep the pen tips here.
C
Pen storage space Keep the pens here.
D
Battery storage space Keep the AA batteries here.
E
Screw holes (for
installation)
The screw holes for securing the pen stand.
F
Installation magnets Magnets used for installation.
To Next Page
