Epson EB-1485Fi User Manual

Draw on the Projected Image Using Annotation Mode
103

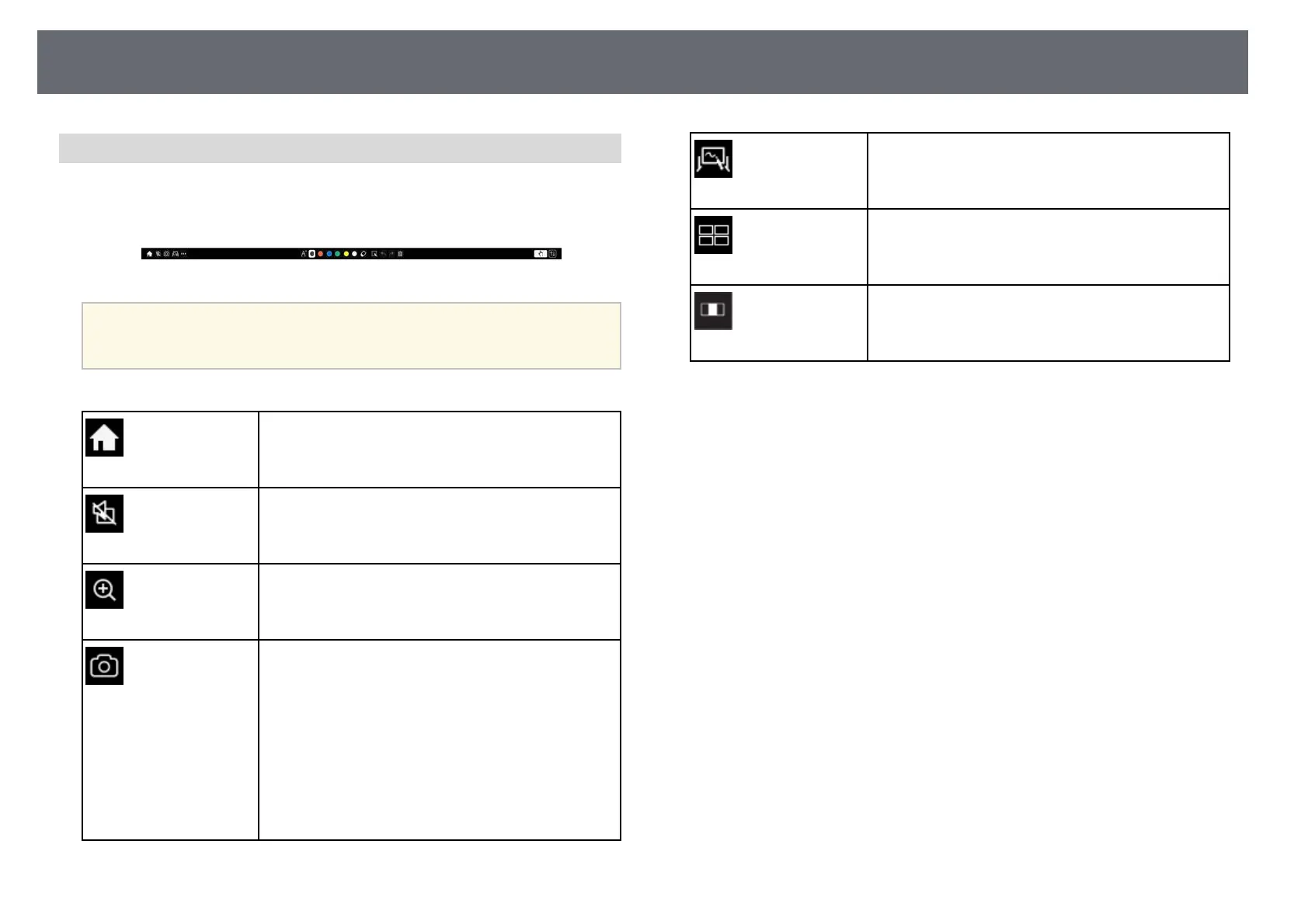

Annotation Mode Toolbar
The annotation mode toolbar lets you draw and write on the projected screen.
The appearance of the toolbar varies depending on how you are projecting
and whether you are projecting a shared image.
a
You can also use the mini toolbox by right-clicking anywhere in the
drawing area. You can switch the type of pen or eraser on the mini
toolbox.
Home
Displays the Home screen.
A/V Mute
Turns the video and audio off. Tap the button again to
turn the video and audio back on.
Zoom
(Not available when you have split the screen into
halves or quarters)
Enlarges or reduces the projected image.
Capture
Captures the current screen and copies it to the
whiteboard.
• Full Screen captures the entire screen image.
• Select Area lets you select a portion of the image to
capture.
If you want to capture the Screen Mirroring image, set
Capture to Enabled in the projector's Network menu
first.
s Network > Network Settings > Network
Projection > Screen Mirroring > Capture
Whiteboard
(Not available when you have split the screen into
halves or quarters, or turned on the Scale setting)
Switches to Whiteboard Mode.
Split Screen
(Available only when you have split the screen into
halves or quarters)
Specifies the split screen settings.
Image Shift
(Available only when Screen Type is set to 16:6)
Specifies the horizontal position of the image inside the
ultra-wide display.

Epson EB-1485Fi Specifications

General

Matrix size	0.62 \
Heat dissipation	1244 BTU/h
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	0 - 0.78 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	2500000:1
Screen size compatibility	65 - 100 \
Projection distance (tele)	0 - 0.6 m
Projection distance (wide)	0 - 0.4 m
Projector native resolution	1080p (1920x1080)
Keystone correction, horizontal	-3 - 3 °
Projector brightness (economic mode)	3500 ANSI lumens
Focus	Manual
Throw ratio	0.27 - 0.37:1
Zoom capability	Yes
Fixed focal length	3.9 mm
Power source	AC
AC input voltage	220-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.5 W
Power consumption (typical)	366 W
Power consumption (economy mode)	262 W
Light source type	Laser
Service life of light source	20000 h
Service life of light source (economic mode)	30000 h
DVI port	No
Composite video in	0
HDMI connector type	Full-size
HDMI ports quantity	3
Serial interface type	RS-232C
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	1
Mobile High-Definition Link (MHL)	-
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Noise level	36 dB
Country of origin	China
Interactive input supported	Interactive pen/Touch
Noise level (economic mode)	27 dB
Compatible operating systems	Linux, Mac OS 10.10.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Ubuntu 14.10, Ubuntu 15.04, Windows 10, Windows 10 (32/64 bit), Windows 2000
Placement	Wall
Product type	Ultra short throw projector
Product color	White
Market positioning	Business
Cable lock slot type	Kensington
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB, DICOM simulation mode
Supported video modes	1080p
Supported graphics resolutions	1920 x 1080 (HD 1080)
RMS rated power	16 W
Storage temperature (T-T)	-10 - 60 °C
Bundled software	Easy Interactive Tools, EasyMP Multi PC Projection, Epson Projektor Management
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	6 pc(s)
Quantity per pallet (UK)	12 pc(s)
Harmonized System (HS) code	85286200
Supported network protocols	HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Sustainability certificates	TCO
Software support	via: AMX, Crestron (Network), Extron, Crestron (RS-232C only), Crestron Integrated Partner, Crestron RoomView, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Windows operating systems supported	Windows 10, Windows 10 x64, Windows 2000

Weight and Dimensions

Depth	375 mm
Width	458 mm
Height	210 mm
Weight	9300 g
Package depth	590 mm
Package width	472 mm
Package height	640 mm
Package weight	27700 g
