Epson EB-535W User Manual

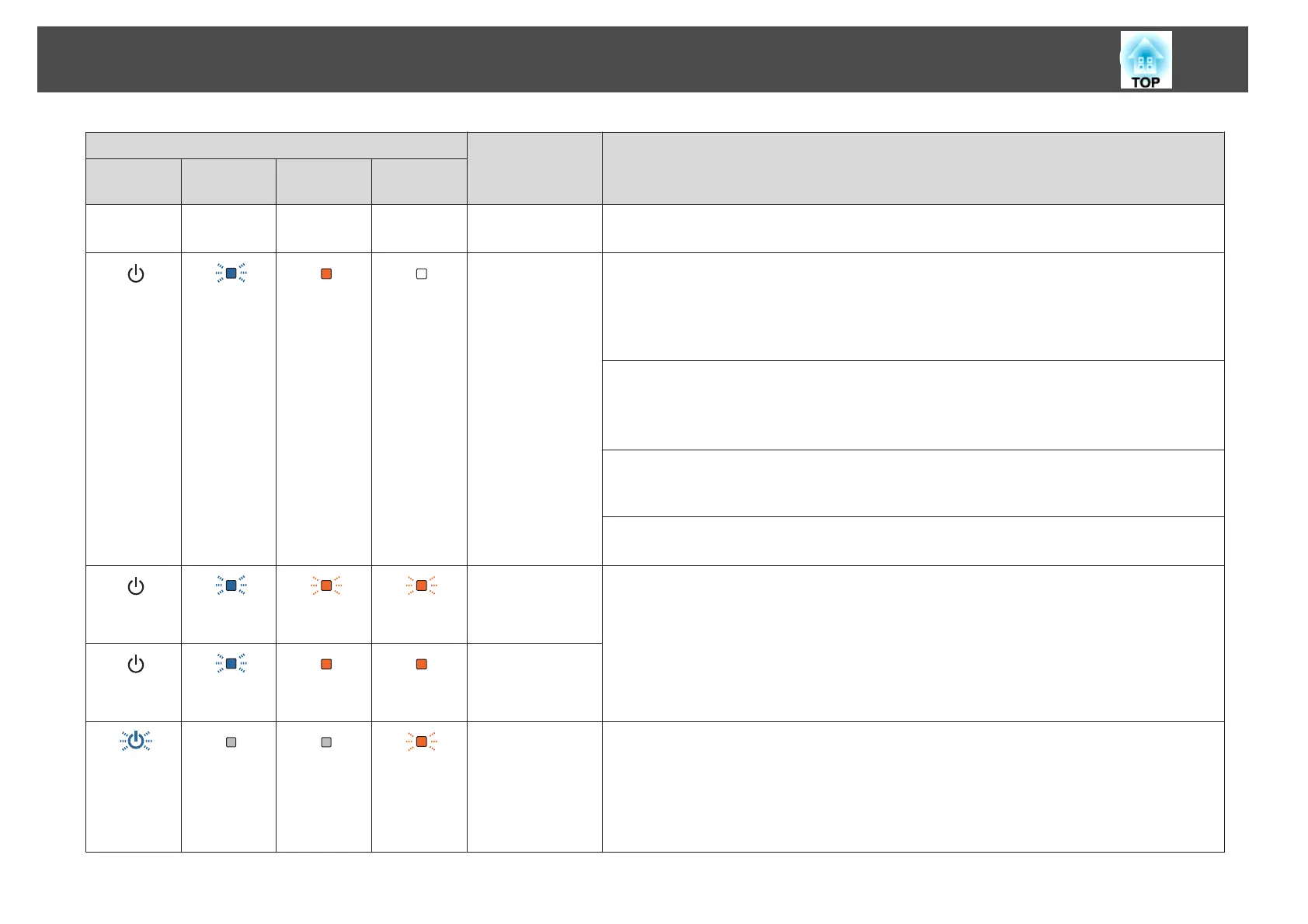

Indicators Cause Remedy or Status
Power sup-
ply
Status Lamp Tempera-
ture
When using at an altitude of 1500 m or more, set High Altitude Mode to On.
s "Extended Menu" p.120
Off Blue - Flash‐
ing
Orange - Lit Off
Lamp Error
Lamp Failure
Check the following two points.
 Take out the lamp and check if it is cracked.
s "Replacing the Lamp" p.166
 Clean the air filter.
s "Cleaning the Air Filter" p.163
If the lamp is not cracked: Reinstall the lamp and plug in the power cord.
If the error continues: Stop using the projector, remove the power plug from the electrical outlet, and
contact your local dealer or the nearest address provided in the Epson Projector Contact List.
s Epson Projector Contact List
If the lamp is cracked: Contact your local dealer or the nearest address provided in the Epson
Projector Contact List. (Images cannot be projected until the lamp is replaced.)
s Epson Projector Contact List
When using at an altitude of 1500 m or more, set High Altitude Mode to On.
s "Extended Menu" p.120
Off Blue - Flash‐
ing
Orange -
Flashing
Orange -
Flashing
Auto Iris Error Stop using the projector, remove the power plug from the electrical outlet, and contact your local
dealer or the nearest address provided in the Epson Projector Contact List.
s Epson Projector Contact List
Off Blue - Flash‐
ing
Orange - Lit Orange - Lit
Power Err.
Blue - Flash‐
ing
State de‐
pendent in‐
dication
State de‐
pendent in‐
dication
Orange -
Flashing
High Temp Warn‐
ing
(This is not an abnormality. However, if the temperature rises too high again, projection stops
automatically.)
 Check that the air filter and air exhaust vent are clear, and that the projector is not positioned
against a wall.
 If the air filter is clogged, clean or replace it.
s
"Cleaning the Air Filter" p.163, "Replacing the Air Filter" p.169
Problem Solving
145

Epson EB-535W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	0.5 - 1.2 m
Vertical scan range	50 - 85 Hz
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	16000:1
Screen size compatibility	53 - 116 \
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-15 - 15 °
Projector brightness (economic mode)	1900 ANSI lumens
Focus	Manual
Throw ratio	0.48 - 0.65:1
Focal length range	6.4 mm
Lamp power	215 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Analog signal format system	NTSC, NTSC 4.43
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
RMS rated power	16 W
Placement	Desktop
Product type	Short throw projector
Product color	White, Grey
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.28 W
Power consumption (typical)	298 W
Power consumption (PowerSave)	221 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Bundled software	iProjection, Epson Projector Management
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	60 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	85286200
Quantity per pallet layer (UK)	6 pc(s)
USB display function	3 in 1: Image / Mouse / Sound
Sustainability certificates	TCO

Weight and Dimensions

Depth	315 mm
Width	344 mm
Height	94 mm
Weight	3700 g
Package depth	497 mm
Package width	386 mm
Package height	215 mm
Package weight	5860 g
