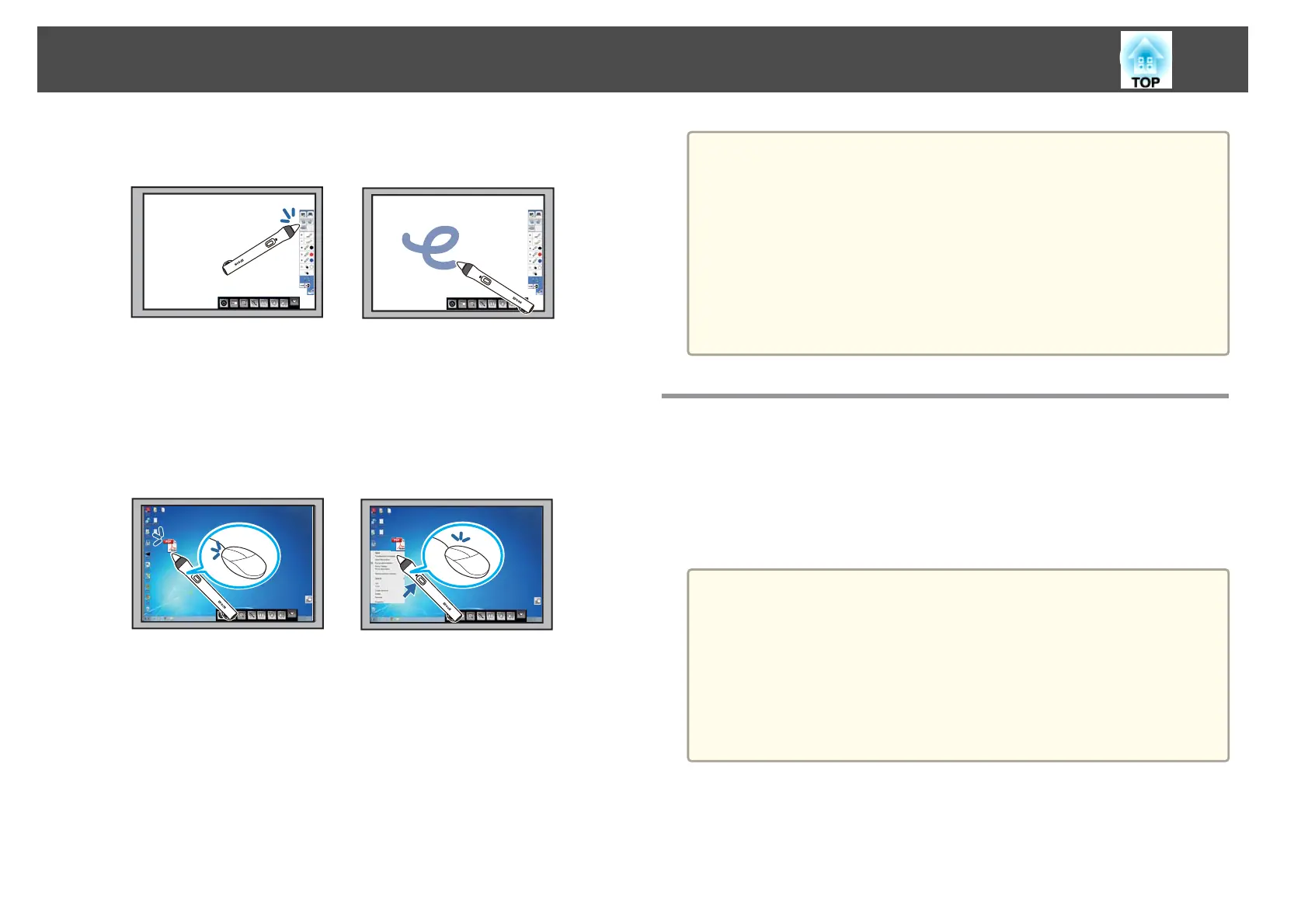

Write or draw on the projection surface in annotation mode and
whiteboard mode.
To select a projected item, such as an icon, tap the projection
surface with the pen tip.
To draw on the projected screen, tap the projection surface with
the pen and drag it as necessary.
To move the projected pointer, hover over the surface without
touching it.
Use the pen as a mouse in computer interactive mode.
To left-click, tap the board with the pen tip.
To double-click, tap twice with the pen tip.
To click and drag, tap and drag with the pen.
To move the cursor, hover over the board without touching it.
a
If you do not want to use the hovering feature, you can turn it off
using the Easy Interactive Function setting in the projector's
Extended menu.
s Extended - Easy Interactive Function - Hovering p.123
To make a long press of the pen act as a right-click, select the
following settings in the Easy Interactive Function setting in the
projector's Extended menu.
- Set the Pen Operation Mode to Two Users/Mouse or One
User/Mouse.
- Set Enable Right Click to On.
Pen Calibration
Calibration coordinates the positioning of the pen with the location of your
cursor. You only need to calibrate the first time you use your projector.
You can use Auto Calibration to calibrate the system, but Manual
Calibration is also available for finer adjustments or if Auto Calibration
failed.
a
Move any pen you are not using away from the projection screen
while calibrating the system.
Calibrate the system again if you notice any discrepancy in
positioning after doing any of the following:
- Performing Keystone correction
- Adjusting the image size
- Changing the projector position
The calibration results remain until you recalibrate.
Calibrating Automatically
You need to calibrate the first time you use your projector, and you do not
need the pens or a computer for Auto Calibration.
Using the Interactive Pens
68
