a
We recommend using a smooth, board type screen without any
unevenness. If the projection screen is uneven, there may be
distortions in the projected image.
Distortions may occur in the projected image depending on the
material of the screen and the installation method.
When installing the projector on a wall or on the ceiling, make sure
you use the correct tools for the installation method.
s "Optional Accessories" p.172
The default Projection setting is Front. You can change from Front
to Rear from the Configuration menu.
s Extended - Projection p.120
You can change the Projection mode as follows by pressing down
the [A/V Mute] button on the remote control for about five seconds.
FrontWFront/Ceiling
RearWRear/Ceiling
Installation Methods

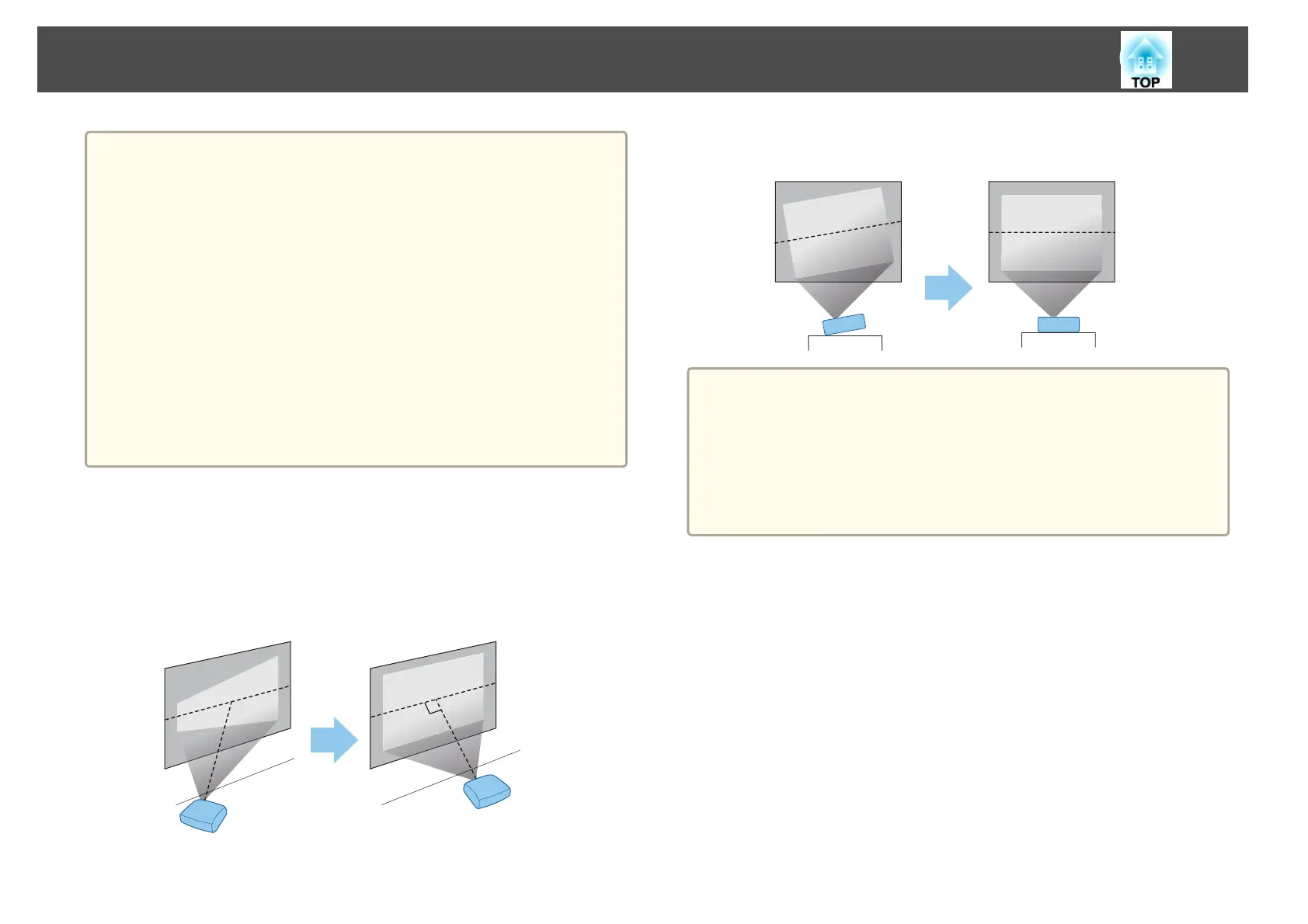

Install the projector as follows.
Install the projector so that it is parallel to the screen.
If the projector is installed at an angle to the screen, keystone distortion
occurs in the projected image.
Place the projector on a level surface.
If the projector is tilted the projected image is also tilted.
a
See the following if you cannot install the projector parallel to the
screen.
s "Correcting Keystone Distortion" p.48
See the following if you cannot install the projector on a level
surface.
s "Adjusting the Horizontal Tilt" p.52
s "Correcting Keystone Distortion" p.48
When Using the Interactive Features (EB-536Wi only)
Project from in front of the screen when using the interactive features. Set
the Projection mode to Front or Front/Ceiling.
Install the projector so that the angle of tilt is ±7° vertically and ±5°
horizontally against the projection side.
Installing the Projector
24
