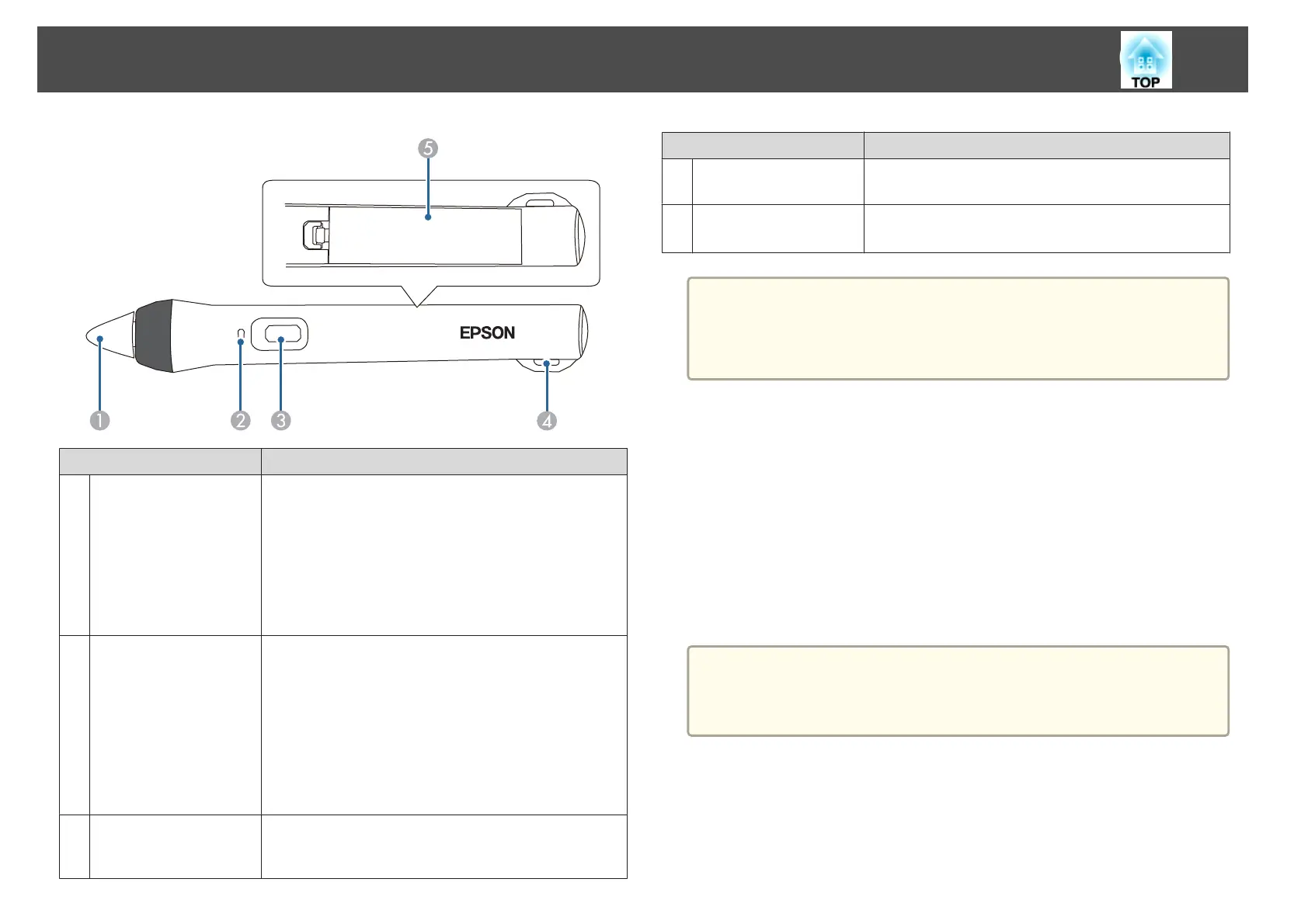

Name Function
A
Pen Tip
 Turn on the interactive pen. When turned on, it takes
approximately one second before the interactive pen is
operational.
 Hold the pen close to the projected image, and press to
use.
s "Using the Interactive Features (EB-536Wi only)"
p.58
s "Optional Accessories" p.172
B
Battery light
Press the button on the side of the pen to indicate the
remaining battery power.
 When the battery is charged, the light is lit green until
you release the button.
 When the battery is running low, the light flashes green
until you release the button.
 Does not light when the battery is exhausted. Change
the batteries.
s "Replacing the Battery for the Interactive Pen" p.20
C
Button
Turn on the interactive pen. When turned on, it takes
approximately one second before the interactive pen is
operational.
Name Function
D
Attachment for
optional strap or cord
Allows you to attach a commercially available strap.
E
Battery cover
Open this cover when replacing the battery.
s "Replacing the Battery for the Interactive Pen" p.20
a
The interactive pen turns off automatically after 20 minutes of
inactivity.
To use the pen again, tap the pen tip or press the button on the side
to turn on the power.
Replacing the Battery for the Interactive Pen
When you press the button, the battery light on the interactive pen lights or
flashes. Does not light or flash when the battery is exhausted. When the
light no longer lights or flashes, replace the battery. Use one of the
following types of battery. Other chargeable batteries cannot be used.
 AA size manganese battery
 AA size alkaline manganese battery
 eneloop
®
*
(HR-3UTG/HR-3UTGA/HR-3UTGB/BK-3MCC)
* eneloop
®
is a registered trademark of the Panasonic Group.
Attention
Make sure you read the following manual before handling the batteries.
s Safety Instructions
Part Names and Functions
20

Epson EB-535W Specifications

General

Number of colors	1.07 billion colors
Native aspect ratio	16:10
Projection distance	0.5 - 1.2 m
Vertical scan range	50 - 85 Hz
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	16000:1
Screen size compatibility	53 - 116 \
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-15 - 15 °
Projector brightness (economic mode)	1900 ANSI lumens
Focus	Manual
Throw ratio	0.48 - 0.65:1
Focal length range	6.4 mm
Lamp power	215 W
Light source type	Lamp
Service life of light source	5000 h
Service life of light source (economic mode)	10000 h
Full HD	No
HD-Ready	Yes
Video processing	10 bit
Analog signal format system	NTSC, NTSC 4.43
USB connector type	USB Type-A, USB Type-B
Serial interface type	RS-232
USB 2.0 ports quantity	2
VGA (D-Sub) ports quantity	3
Ethernet LAN data rates	10, 100 Mbit/s
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
RMS rated power	16 W
Placement	Desktop
Product type	Short throw projector
Product color	White, Grey
Market positioning	Presentation
Cable lock slot type	Kensington
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.28 W
Power consumption (typical)	298 W
Power consumption (PowerSave)	221 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA
Bundled software	iProjection, Epson Projector Management
Pallet weight	0 g
Quantity per pack	1 pc(s)
Quantity per pallet	40 pc(s)
Quantity per pallet (UK)	60 pc(s)
Quantity per pallet layer	4 pc(s)
Harmonized System (HS) code	85286200
Quantity per pallet layer (UK)	6 pc(s)
USB display function	3 in 1: Image / Mouse / Sound
Sustainability certificates	TCO

Weight and Dimensions

Depth	315 mm
Width	344 mm
Height	94 mm
Weight	3700 g
Package depth	497 mm
Package width	386 mm
Package height	215 mm
Package weight	5860 g
