3.3.13 Lower Case
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Rear Foot. (p.61)
4. Remove the Front Foot. (p.62)
5. Remove the Upper Case (assembly). (p.62)
6. Remove the MA Board (assembly). (p.74)
7. Remove the Speaker. (p.81)
8. Remove the Optical Engine. (p.82)
9. Remove the Lamp Fan. (p.86)
10. Remove the EX Duct (assembly). (p.87)
11. Remove the BA Power Supply (assembly). (p.89)
12. Remove the INT Duct (assembly). (p.96)
13. Remove the FB Insulation Sheet from the Lower Shield Plate.
14. Remove the Lower Shield Plate from the Lower Case.
15. Remove the two screws ( ) and remove the
Lamp Connector Holder.

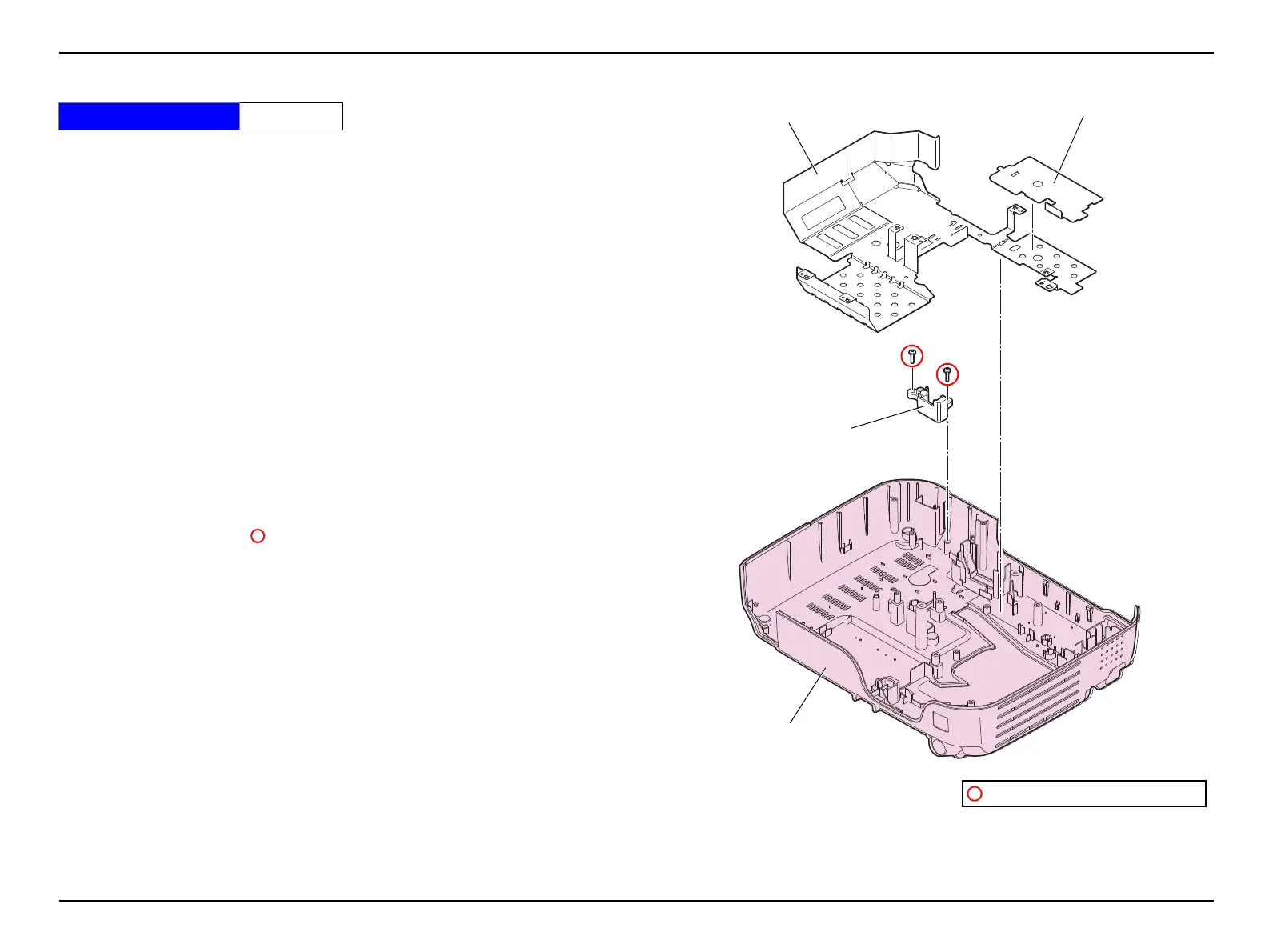

Figure 3-38.
Standard Operation Time 17 Min.
FB Insulation Sheet
Lower Shield Plate
Lower Case
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
Lamp Connector Holder
