Epson EB-X14G Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 72 Revision C
3.3.5.4 Upper Case
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the SW Board. (p.67)
5. Remove the HK Assy. (p.69)
6. Remove the Shutter Switch. (p.70)
7. Remove the two screws ( ) and remove the EX Louver.
8. Remove the six screws ( ) and release the two hooks on the Upper Case to
remove the Front Slit.
9. Remove the two screws ( ) and remove the Upper Case Cover.
10. Remove the following parts from the Upper Case.
• PLATE NUT M3
• Air Filter Cover Band

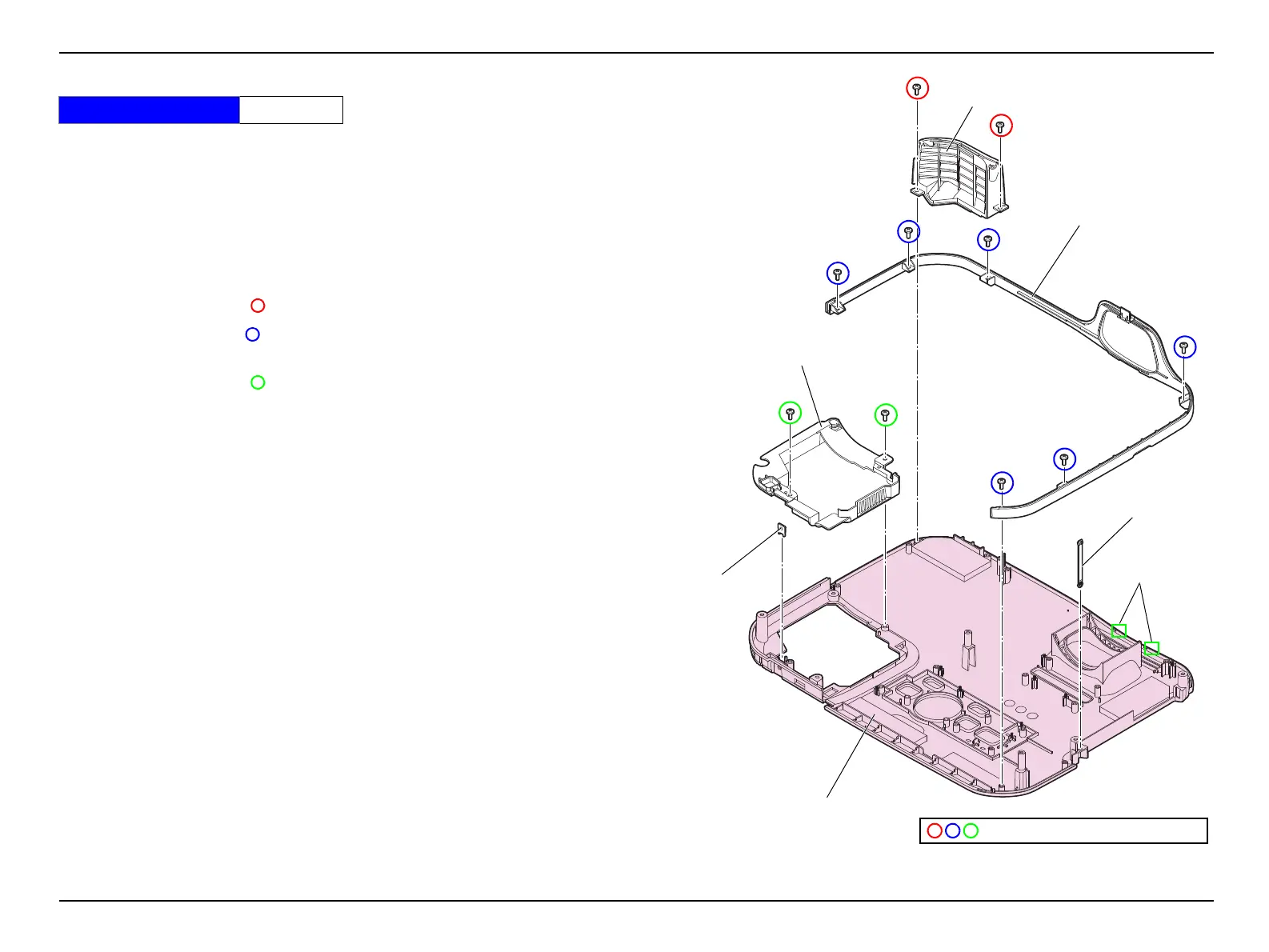

Figure 3-12.
Standard Operation Time 13 Min.
C.B.P-TITE SCREW,2.5X6,F/ZN-3C
Upper Case
PLATE,NUT;M3
Upper Case Cover
EX Louver
Front Slit
Air Filter Cover Band
Hooks
