Epson EB-X14G Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 89 Revision C
3.3.11 BA Power Supply (assembly)
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the Optical Engine. (p.82)
6. Remove the Lamp Fan. (p.86)
7. Remove the EX Duct (assembly). (p.87)
8. Remove the Kensington Shade Sheet from Lower Case.
9. Remove the EMC Sheet.
10. Remove the screw ( ) and release the lamp connector.
11. Remove the six screws ( ) ( ) ( ) and remove the BA Power Supply
(assembly).

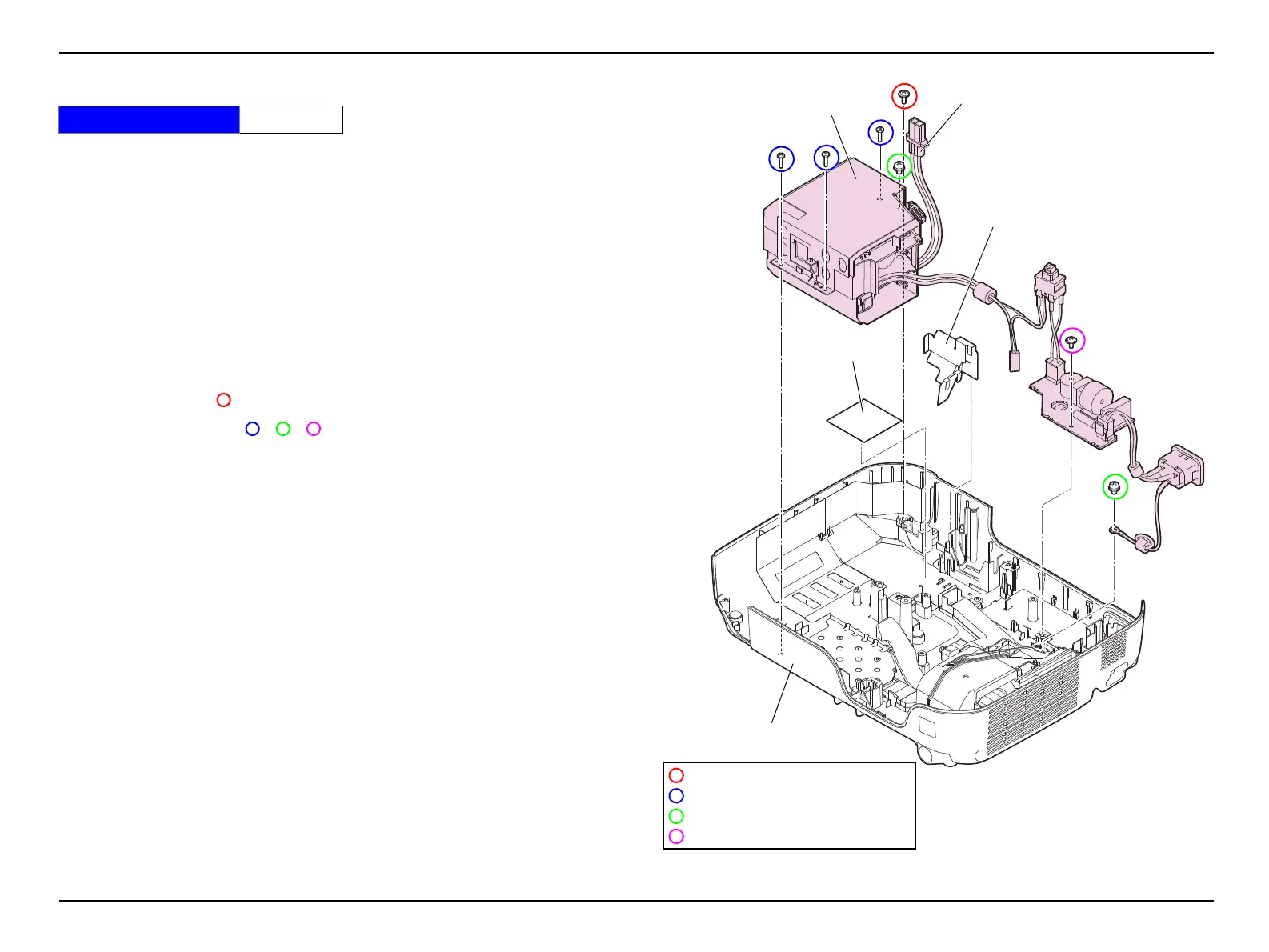

Figure 3-31.
Standard Operation Time 12 Min.
Kensington
Shade Sheet
EMC Sheet
BA Power Supply (assembly)
Lower Case
C.C.P-TITE SCREW,3X8,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
C.P.(O)SCREW,4X6,F/NI
C.C.SCREW,3X6,F/ZN-3C
Lamp connector
