EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Maintenance CONFIDENTIAL
SEIKO EPSON 125 Revision C

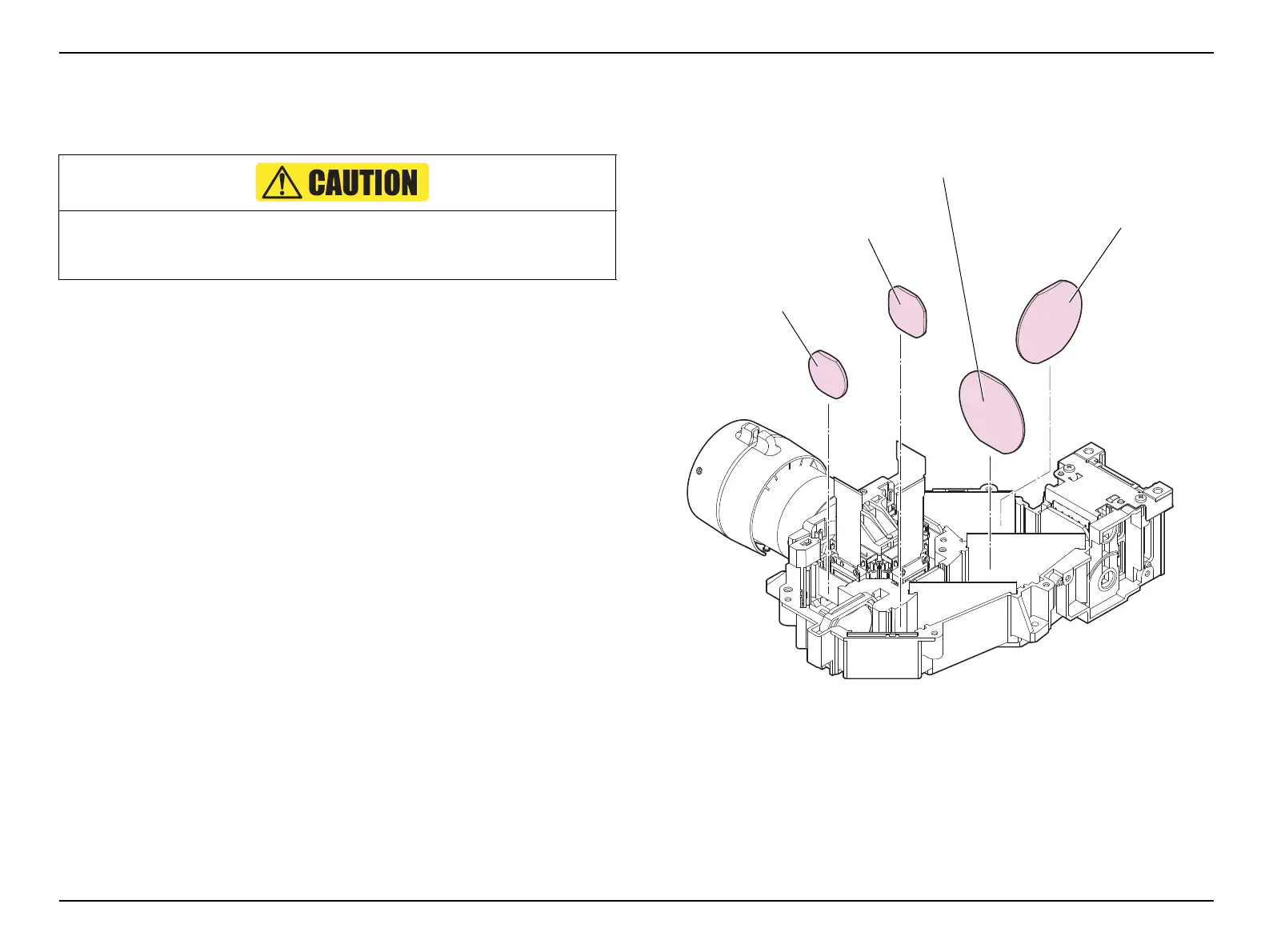

4.2.2 CONDENSER LENS;D/FB/FG2/R
1. Remove the LIGHT GUIDE,UPPER. (p.122)
2. Remove the CONDENSER LENS;D.
3. Remove the CONDENSER LENS;FB.
4. Remove the CONDENSER LENS;FG2.
5. Remove the CONDENSER LENS;R.
Figure 4-10.
Some of the condenser lenses used for this projector are different according to
the models. Check the correct lenses for your model referring to the table below.
 Condenser Lenses according to the Models
(p126)
CONDENSER
LENS;D
CONDENSER
LENS;R
CONDENSER
LENS;FB
CONDENSER
LENS;FG2
