Epson EB-X14G Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 88 Revision C
3.3.10.1 TH Board (2) / EX Fan
1. Remove the Air Filter. (p.59)
2. Remove the Lamp. (p.60)
3. Remove the Upper Case (assembly). (p.62)
4. Remove the MA Board (assembly). (p.74)
5. Remove the Optical Engine. (p.82)
6. Remove the EX Duct (assembly). (p.87)
7. Remove the two screws ( ) and remove the PS Duct.
8. Remove the TH Board (2) from the Inner EX Duct.
9. Remove the TH Cable from the TH Board (2).
10. Remove the two screws
() and remove the Inner EX Duct.
11. Remove the Shutter Cushion A (x 2) from the Inner EX Duct.
12. Remove the
EX Fan from the EX Fan Holder.

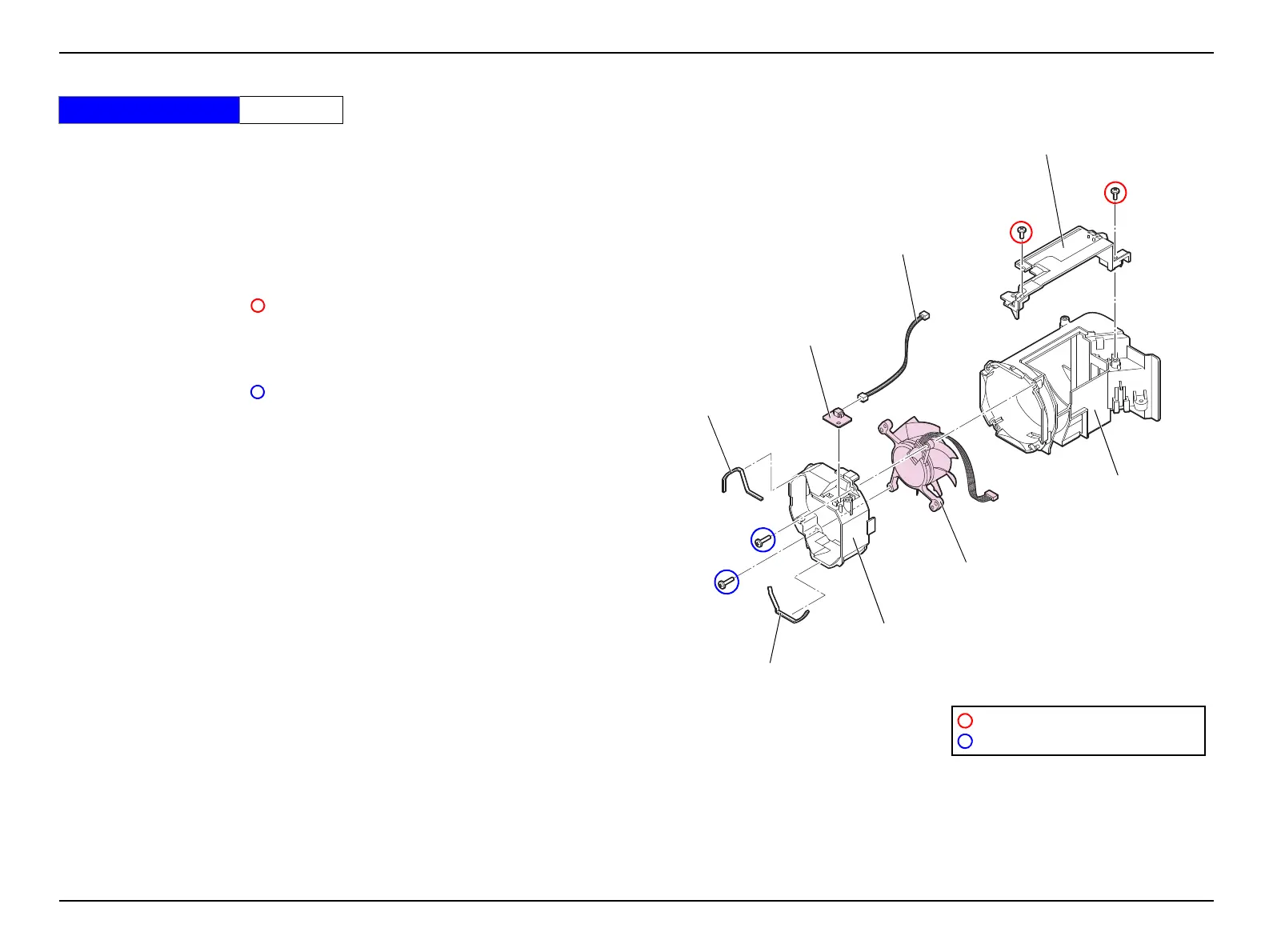

Figure 3-30.
Standard Operation Time 11 Min.
C.B.P-TITE SCREW,2.5X6,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
PS Duct
TH Board (2)
TH Cable
Shutter Cushion A
Shutter Cushion A
Inner EX Duct
EX Fan
EX Fan Holder
