Epson EB-X14G Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 90 Revision C

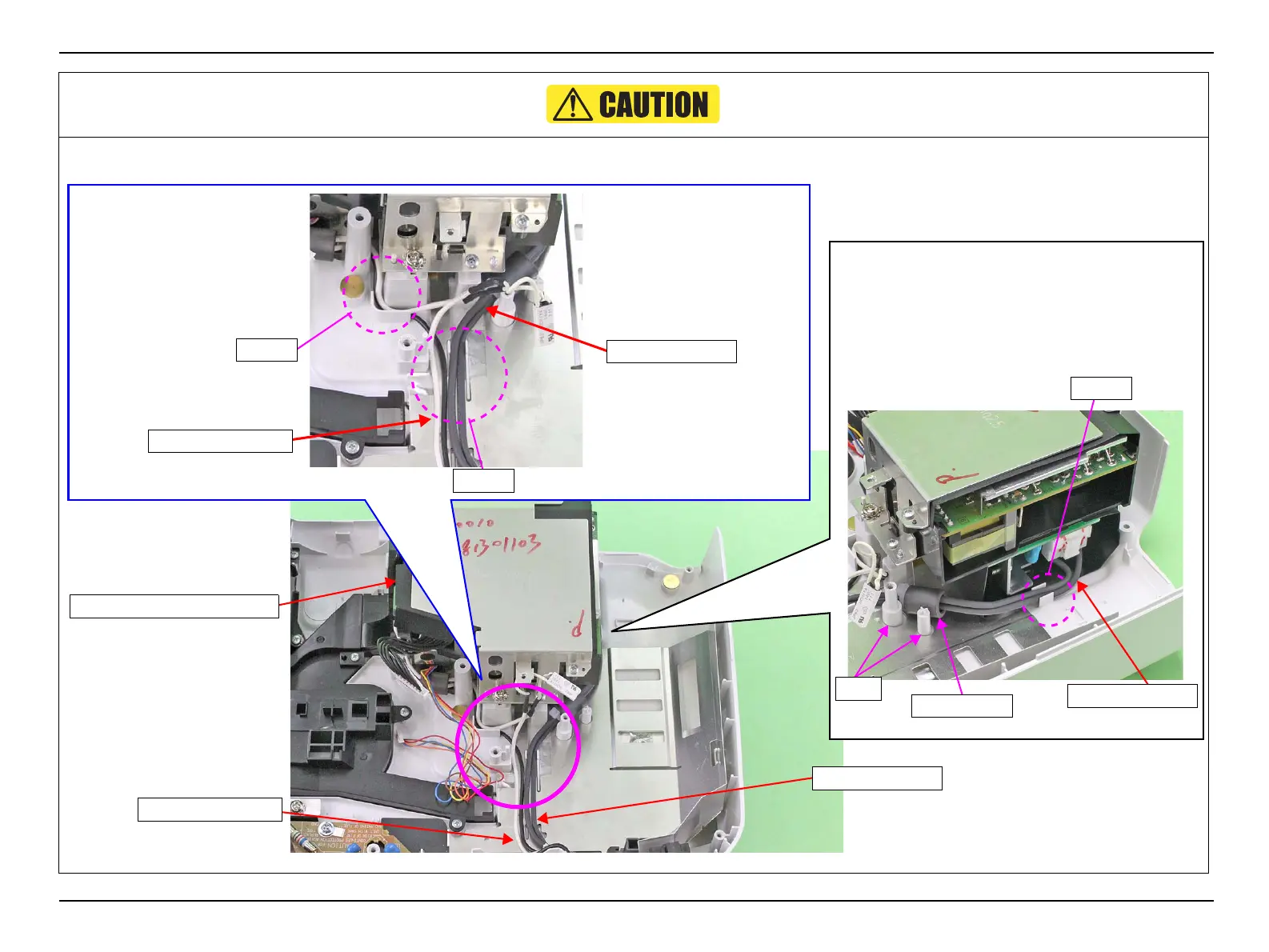

 Route the BA Lamp Cable and the cable (PS Filter) according to the instructions below. (BA Power Supply (assembly) side)
Rib(1)
Routing the cable (PS
Filter)
Route the cable through
the rib (1).
Routing the BA Lamp Cable
• Route the cable between the ribs.
• Place the ferrite core in the position as shown
below.
Boss
Ferrite Core
BA Power Supply (assembly)
Routing the BA Lamp
Cable
Route the cable through
the rib (2).
BA Lamp Cable
PS Filter cable
Rib(2)
Ribs
BA Lamp Cable
BA Lamp Cable
PS Filter cable
