Epson EB-X14G Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 71 Revision C

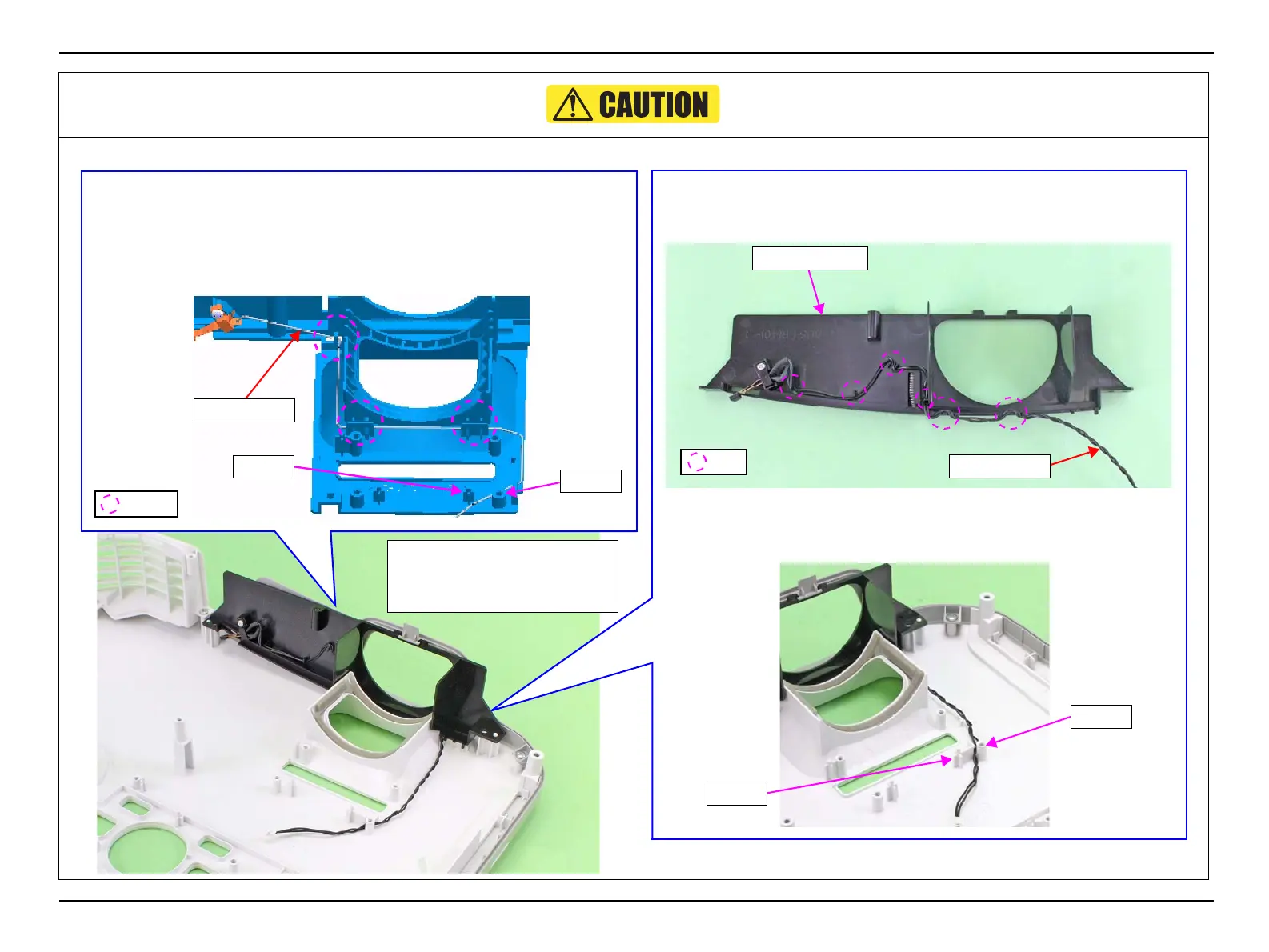

Route the Shutter Switch cable according to the instructions by model below.
 EB-S11/X11/S12/S12H/X12/W12/X14
(1) Route the Shutter Switch through the five ribs of Shutter Frame as
shown below.
Rib
(2) Then route the Shutter Switch between the boss and the rib of Upper
Case (assembly) as shown below.
Upper Case (assembly)
(photo:EB-S11/X11/S12/S12H/
X12/W12/X14)
 EB-S01/W01/X14G/S02/S02H/X02/W02
(1) Route the Shutter Switch through three rib As of Upper Case (assembly).
(2) Then route the Shutter Switch between the boss and rib B of Upper Case
(assembly).
Boss
Rib
Boss(2)
Rib A
Shutter Switch
Rib B
Boss
Shutter Switch
Shutter Frame
