EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 75 Revision C

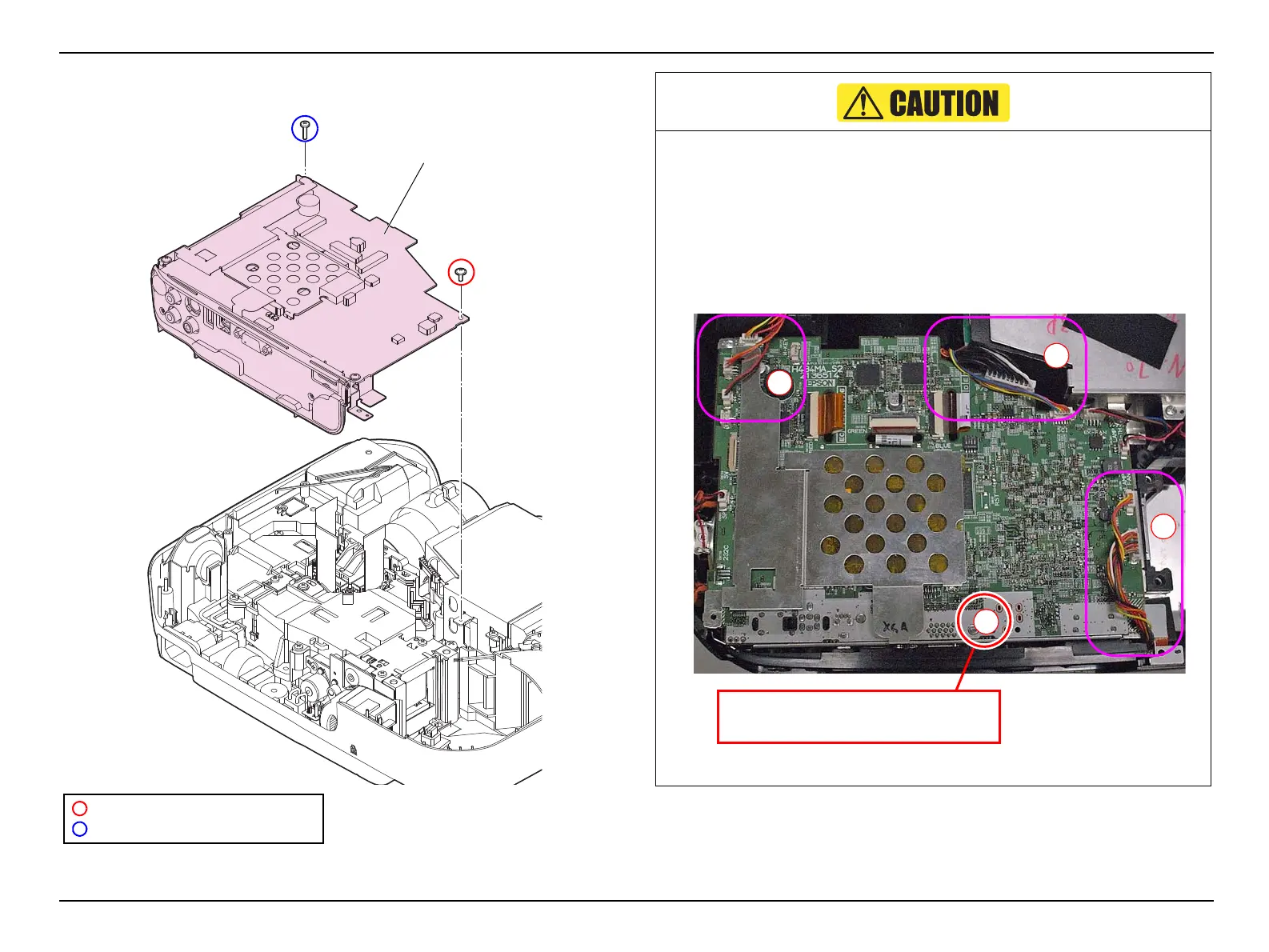

5. Remove the two screws and remove the MA Board (assembly).
Figure 3-15.
C.C.SCREW,2.5X6,F/ZN-3C
C.B.P-TITE SCREW,2.5X10,F/ZN-3C
MA Board (assembly)
Routing around the MA Board (assembly) (Routing 1 to 4)
According to the cautions below, route the following cables around the
MA
Board
(assembly).
1. Routing of INT Fan cable, RC cable, TH cable
2. Routing of PS Filter cable, SCI Cable
3. Routing of Auto Iris cable, Lamp Fan cable
4. Routing of Auto Iris cable (* Before installing the MA Board
(assembly)
)
Figure 3-16.
1
2
3
4
* Make sure to perform #4 routing before
installing the MA Board (assembly).
To Next Page
