Maintenance
90
j

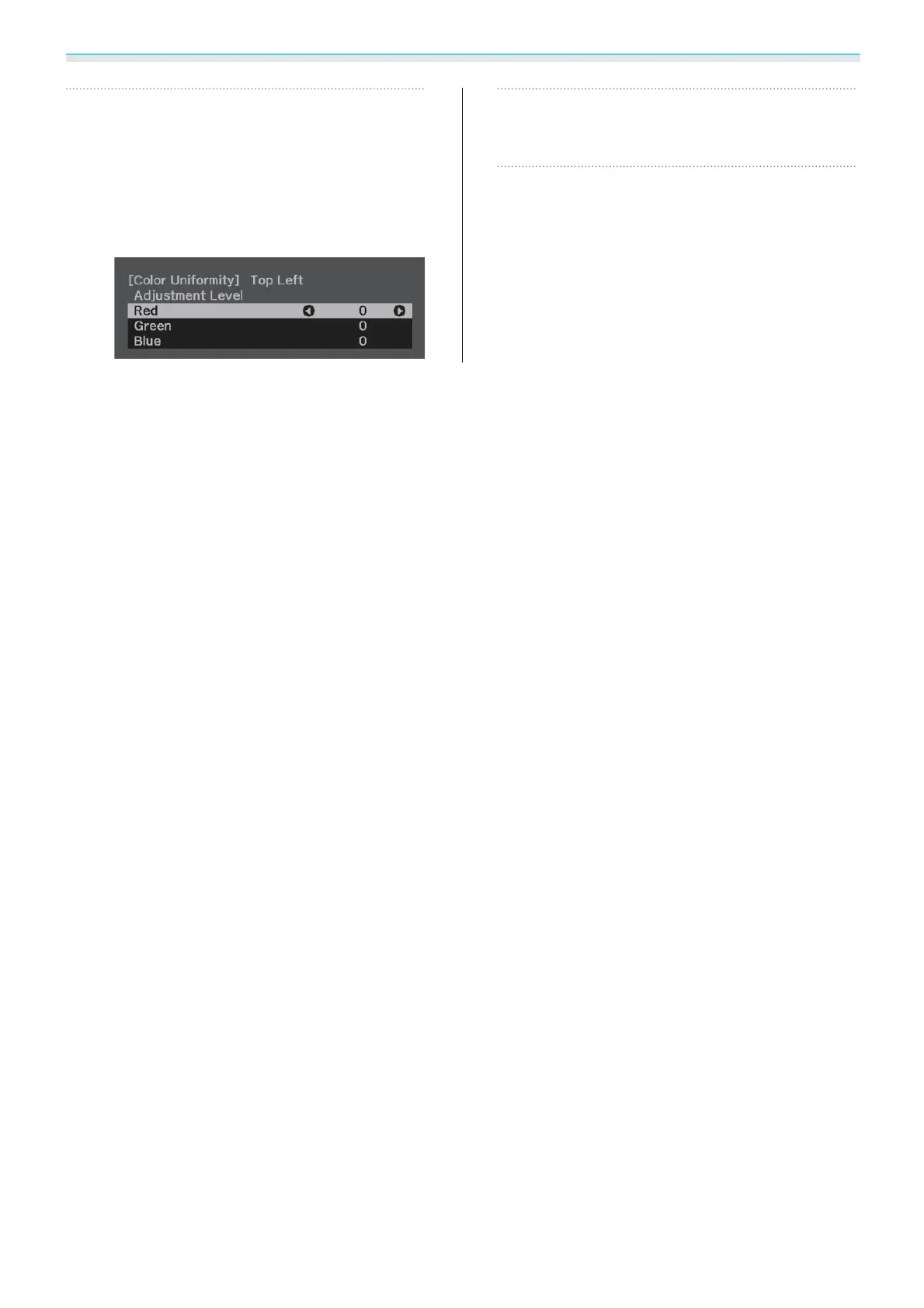

Use the up and down buttons to select
the color you want to adjust, and then
use the left and right buttons to adjust.
Press the left button to weaken the color
tone. Press the right button to strengthen
the color tone.
k
Return to step 5 an
d adjust each level.
l
To complete the adjustment, press the
[Menu] button.
90
92
Table of Contents
Organization of the Guide and Notations in the Guide
2
Using each Guide
2
Notations Used in this Guide
3
Safety Indications
3
General Information Indications
3
About the Use of "This Product" or "This Projector
3
Table of Contents
4
Introduction
7
Projector Features
7
Project Large Images Even When Near a Wall
7
Project Images from Mobile Devices
7
Other Useful Functions
7
Part Names and Functions
8
Front/Top
8
Rear/Top
9
Connector Ports
10
Base
11
Control Panel
12
Remote Control
13
Preparing
15
Installing
15
Projected Image and Position of Projector
15
Installing in Parallel with the Screen
15
Installing the Projector Horizontally by Adjusting the Height of Either Side
16
Screen Size and Projection Distance
17
Connecting a Device
18
Connecting a Streaming Media Player
18
Connecting Video Equipment
19
Connecting a Computer
20
Connecting to the LAN Port
20
Attaching the Wireless LAN Unit
20
Connecting External Speakers
21
Connecting an ARC Compatible AV System
21
Preparing the Remote Control
22
Installing the Remote Control Batteries
22
Remote Control Operating Range
22
Operating Range (Left to Right)
22
Operating Range (Top to Bottom)
22
Basic Operations
23
Projecting Images
23
Turning on the Projector
23
If the Target Image Is Not Projected
24
Using the Home Screen
25
Turning off
26
Adjusting the Projected Image
27
Adjusting the Focus
27
Adjusting the Projection Size (Adjust Zoom)
27
Adjusting the Position of the Image (Image Shift)
28
Correcting Vertical Distortion in the Image
28
Correcting Keystone Distortion
29
Correct Using the Keystone Buttons
29
Correcting with Quick Corner
30
Adjusting the Volume
31
Hiding the Image and Muting the Audio Temporarily (A/V Mute)
31
Adjusting the Image
32
Selecting the Projection Quality (Color Mode)
32
Switching the Screen between Full and Zoom (Aspect)
32
Adjusting the Sharpness
34
Adjusting Image Resolution (Image Enhancement)
35
Adjusting the Luminance for Images
36
Setting Frame Interpolation
36
Setting the Image Processing Speed
37
Adjusting the Color
38
Adjusting the Color Temp
38
Adjusting the RGB (Offset and Gain)
38
Adjusting Hue, Saturation, and Brightness
39
Adjusting the Gamma
40
Select and Adjust the Correction Value
40
Adjust Using the Gamma Adjustment Graph
41
Viewing the Image at the Saved Image Quality (Memory Function)
42
Saving a Memory
42
Loading, Deleting, and Renaming a Memory
43
Useful Functions
44
Enjoying 3D Images
44
Preparing to View 3D Images
44
If the 3D Image Cannot be Viewed
44
Using 3D Glasses
45
Warnings Regarding Viewing 3D Images
45
Using the HDMI Link Function
47
HDMI Link Function
47
HDMI Link Settings
47
Connecting
48
Using the Projector on a Network
49
Projecting Using Wired LAN
49
Selecting Wired Network Settings
49
Projecting Using Wireless LAN
51
Selecting Wireless Network Settings Manually
51
Selecting the Computer's Wireless LAN Settings
54
Selecting Wireless Network Settings in Windows
54
Selecting Wireless Network Settings in os X
54
Setting up Wireless Network Security
54
Projecting in Epson Iprojection (Ios/Android)
55
Operating Using a Smartphone (Remote Control Function)
56
Configuration Menu
58
Configuration Menu Functions
58
Configuration Menu Operations
58
Configuration Menu Table
59
Image Menu
59
Signal Menu
60
Settings Menu
62
Extended Menu
64
Network Menu
66
Info Menu
70
Reset Menu
70
Troubleshooting
71
Problem Solving
71
Handling Problems
71
Reading the Indicators
71
Indicator Status During an Error/Warning
72
Indicator Status During Normal Operation
73
When the Indicators Provide no Help
74
Check the Problem
74
Problems Relating to Images
75
Noise Problems
78
Problems When Projection Starts
78
Problems with the Remote Control
79
Problems with the Control Panel
79
Problems with 3D
79
Problems with HDMI
80
Problems with a Streaming Media Player
81
Network Problems
81
About Event ID
83
Maintenance
84
Cleaning the Parts
84
Cleaning the Air Filter
84
Cleaning the Main Unit
86
Cleaning the Lens
86
Replacement Periods for Consumables
86
Air Filter Replacement Period
86
Replacing Consumables
86
Replacing the Air Filter
86
Panel Alignment
88
Color Uniformity
90
About Pjlink
92
Appendix Optional Accessories and Consumables
93
Optional Items
93
Consumables
93
Appendix
93
Supported Resolutions
94
Unique Aspect
94
Specifications
99
Eh-Ls500W/Eh-Ls500B
99
Appearance
102
List of Safety Symbols
103
Safety Instructions for Laser Products
105
Laser Warning Labels
106
Glossary
107
General Notes
108
General Notice
109
