Epson EH-TW550 User Manual

Name Function
E
A/V mute slide
Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.59
F
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.41
G
Zoom ring
Adjusts the image size.
s "Adjusting the Image Size" p.40
H
Remote receiver
Receives signals from the remote control.
I
Sensor (EB-W16 only)
Sensor for detecting the screen frame.
J
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.98
K
Air filter cover section
Place your finger to open the air filter cover.
s "Replacing the Air Filter" p.103
L
Speaker
Outputs audio.
M
Security slot
The security slot is compatible with the Microsaver
Security System manufactured by Kensington.
s "Anti-Theft Lock" p.68
N
Indicators
Indicates the projector's status.
s "Reading the Indicators" p.84
O
Control panel
Operates the projector.
s "Control Panel" p.13
P
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.100
Q
Horizontal keystone
adjuster (EH-TW550/
EH-TW510 only)
Corrects horizontal distortion in the projected image.
s "Correcting manually" p.35

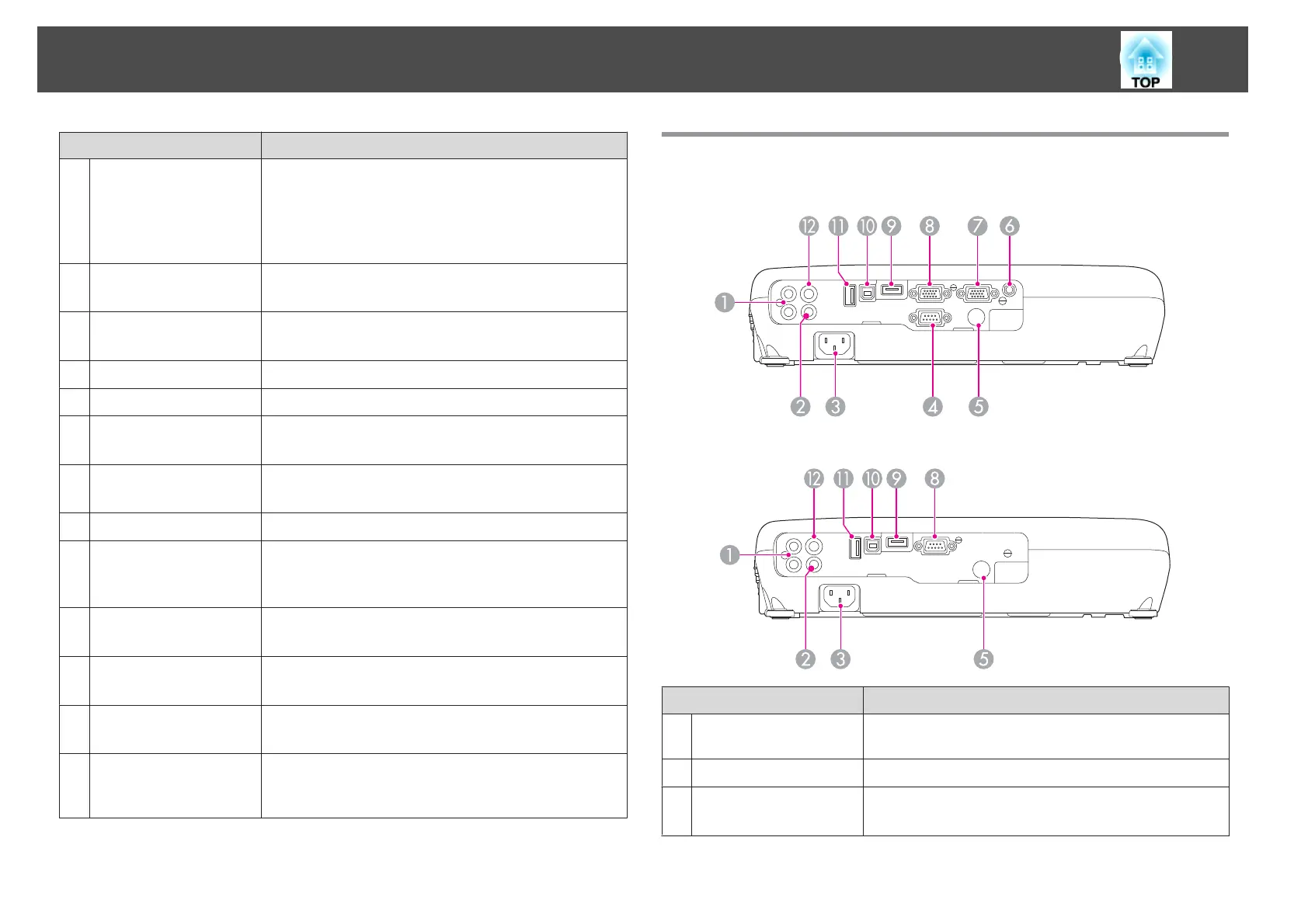

Rear
EB-W16
EH-TW550/EH-TW510
Name Function
A
Audio-L/R port
Inputs audio from equipment connected to the Computer
port, the S-Video port, or the Video port.
B
Video port
Inputs composite video signals from video sources.
C
Power inlet
Connects the power cord to the projector.
s "From Installation to Projection" p.28
Part Names and Functions
11

Epson EH-TW550 Specifications

General

Matrix size	0.59 \
Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	16:10
Projection technology	3LCD
Contrast ratio (typical)	5000:1
Screen size compatibility	33 - 318 \
Projection distance (tele)	1.1 - 10.8 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-30 - 30 °
Focus	Manual
Offset	10 %
Focal length range	1.58 - 1.72 mm
Aperture range (F-F)	17 - 20
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
Full HD	No
HD-Ready	Yes
Color modes (2D)	Cinema, Dynamic
Video processing	17 bit
Video color modes	Cinema, Dynamic, Game, Living room
Supported 3D formats	Frame packing, Side by side, Top and bottom
HDMI version	1.4
Composite video in	1
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
2D/3D frequency image	240 Hz
Noise level (economic mode)	29 dB
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.47 W
Power consumption (typical)	311 W
Power consumption (economy mode)	258 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	243 mm
Width	325 mm
Height	77 mm
Weight	2600 g
