a
• Auto H/V-Keystone only works when Projection is set to Front
from the Configuration menu.
s Extended - Projection p.78
• If you do not want to use the Auto H/V-Keystone function, set Auto
H/V-Keystone to Off.
s Settings - Keystone - H/V-Keystone - Auto H/V-Keystone
p.77
Auto V-Keystone (EH-TW550/EH-TW510 only)
For the EH-TW550/EH-TW510, only vertical keystone distortion is
corrected automatically. Use the horizontal keystone adjuster when
correcting horizontal keystone distortion.
You can use Auto V-Keystone to correct the projected image under the
following conditions.
Correction angle: approx. 30˚ up and down
a
• Auto V-Keystone works only when Projection is set to Front from
the Configuration menu.
s Extended - Projection p.78
• If you do not want to enable Auto V-Keystone, set Auto V-
Keystone to Off.
s Settings - Keystone - H/V-Keystone - Auto V-Keystone
p.77
Correcting manually
You can manually correct keystone distortion.
You can use H/V-Keystone to correct the projected image under the
following conditions.
Correction angle: approx 30˚ right and left/approx. 30˚ up and down

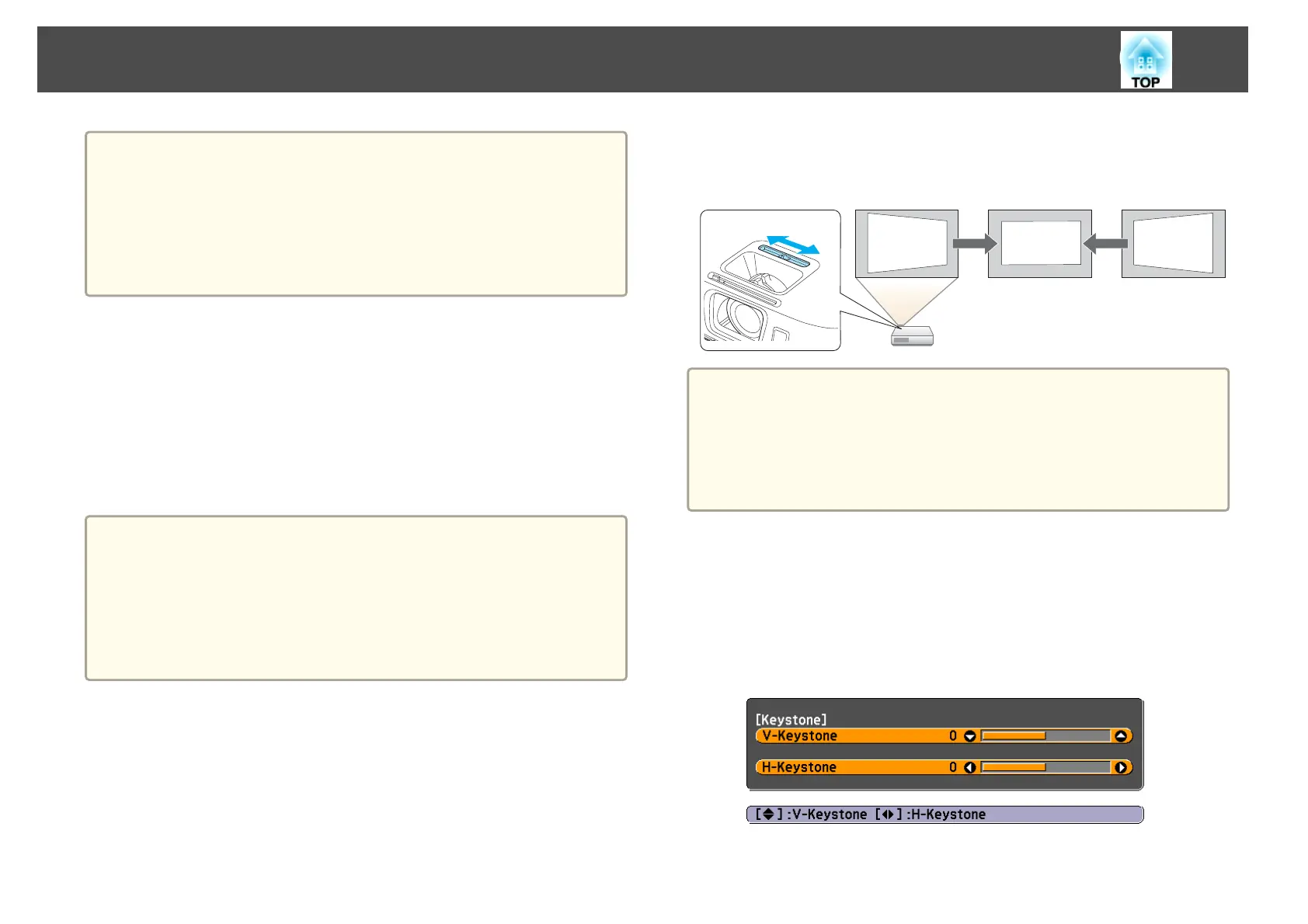

H-Keystone Adjuster (EH-TW550/EH-TW510 only)
Move the horizontal keystone adjuster to the right or left to perform
horizontal keystone correction.
a
• When using horizontal keystone adjuster, set H-Keystone Adjuster
to On.
s Settings - Keystone - H/V-Keystone - H-Keystone Adjuster
p.77
• You can also correct keystone distortion in the horizontal direction
using H/V-Keystone.
H/V-Keystone
Manually correct distortion in the horizontal and vertical directions
independently.
a
Press the [
w
] or [
v
] button on the control panel during
projection to display the Keystone screen.
Adjusting Projected Images
35
