Epson EH-TW550 User Manual

Name Function
D
RS-232C port (EB-W16
only)
When controlling the device from a computer, connect it
to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands (EB-W16 only)" p.69
E
Remote receiver
Receives signals from the remote control.
F
Audio Out port (EB-
W16 only)
Outputs audio from the currently projected image to an
external speaker.
G
Monitor
Out/Computer2 port
(EB-W16 only)
• Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
• When Monitor Out Port is set to Computer2 from the
Configuration menu, image signals from a computer
and component video signals from other video sources
are input.
H
Computer1 or
Computer port
Inputs image signals from a computer and component
video signals from other video sources.
I
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
s "Connecting Equipment" p.22
J
USB(TypeB) port
• Connects the projector to a computer using a USB cable,
and projects the images on the computer.
s "Projecting with USB Display" p.30
• Connects the projector to a computer using a USB cable
to use the Wireless Mouse function.
s "Using the Remote Control to Operate the
Mouse Pointer (Wireless Mouse)" p.62
K
USB(TypeA) port
• Connects a USB memory device or a digital camera and
projects movies or images using PC Free.
s "Projecting Without a Computer (PC Free)"
p.53
• Connects the optional Document Camera.
Name Function
L
S-Video port
Inputs S-Video signals from video sources.

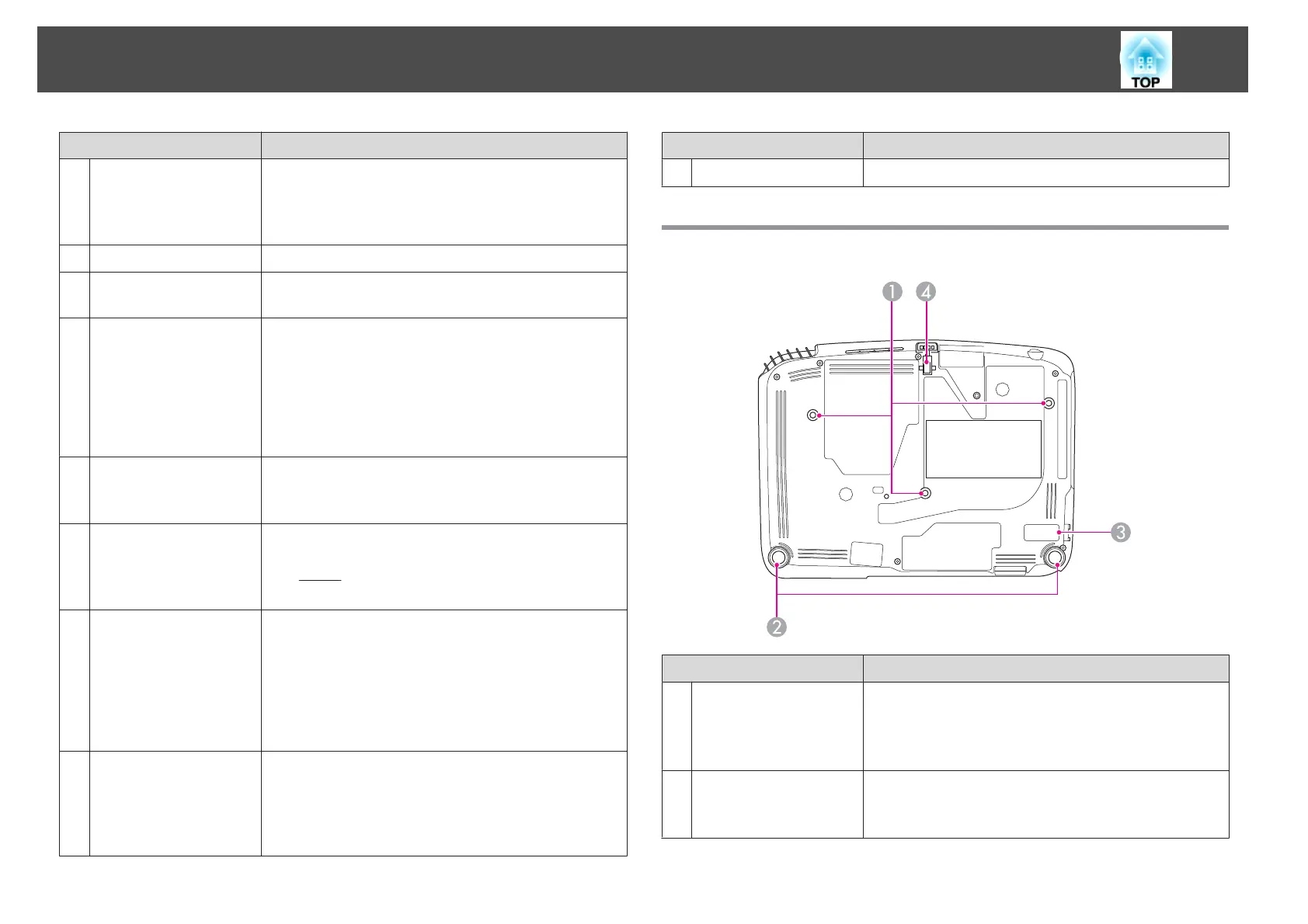

Base
Name Function
A
Ceiling mount fixing
points (three points)
Attach the optional Ceiling Mount here when suspending
the projector from a ceiling.
s "Installing the Projector" p.20
s "Optional Accessories" p.106
B
Rear feet
When setup on a surface such as a desk, turn to extend and
retract to adjust the horizontal tilt.
s "Adjusting the Horizontal Tilt" p.41
Part Names and Functions
12

Epson EH-TW550 Specifications

General

Matrix size	0.59 \
Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	16:10
Projection technology	3LCD
Contrast ratio (typical)	5000:1
Screen size compatibility	33 - 318 \
Projection distance (tele)	1.1 - 10.8 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-30 - 30 °
Focus	Manual
Offset	10 %
Focal length range	1.58 - 1.72 mm
Aperture range (F-F)	17 - 20
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
Full HD	No
HD-Ready	Yes
Color modes (2D)	Cinema, Dynamic
Video processing	17 bit
Video color modes	Cinema, Dynamic, Game, Living room
Supported 3D formats	Frame packing, Side by side, Top and bottom
HDMI version	1.4
Composite video in	1
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
2D/3D frequency image	240 Hz
Noise level (economic mode)	29 dB
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.47 W
Power consumption (typical)	311 W
Power consumption (economy mode)	258 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	243 mm
Width	325 mm
Height	77 mm
Weight	2600 g
