Epson EH-TW550 User Manual

Connecting External Equipment (EB-W16 only)
You can output images and audio by connecting an external monitor or speaker.
A

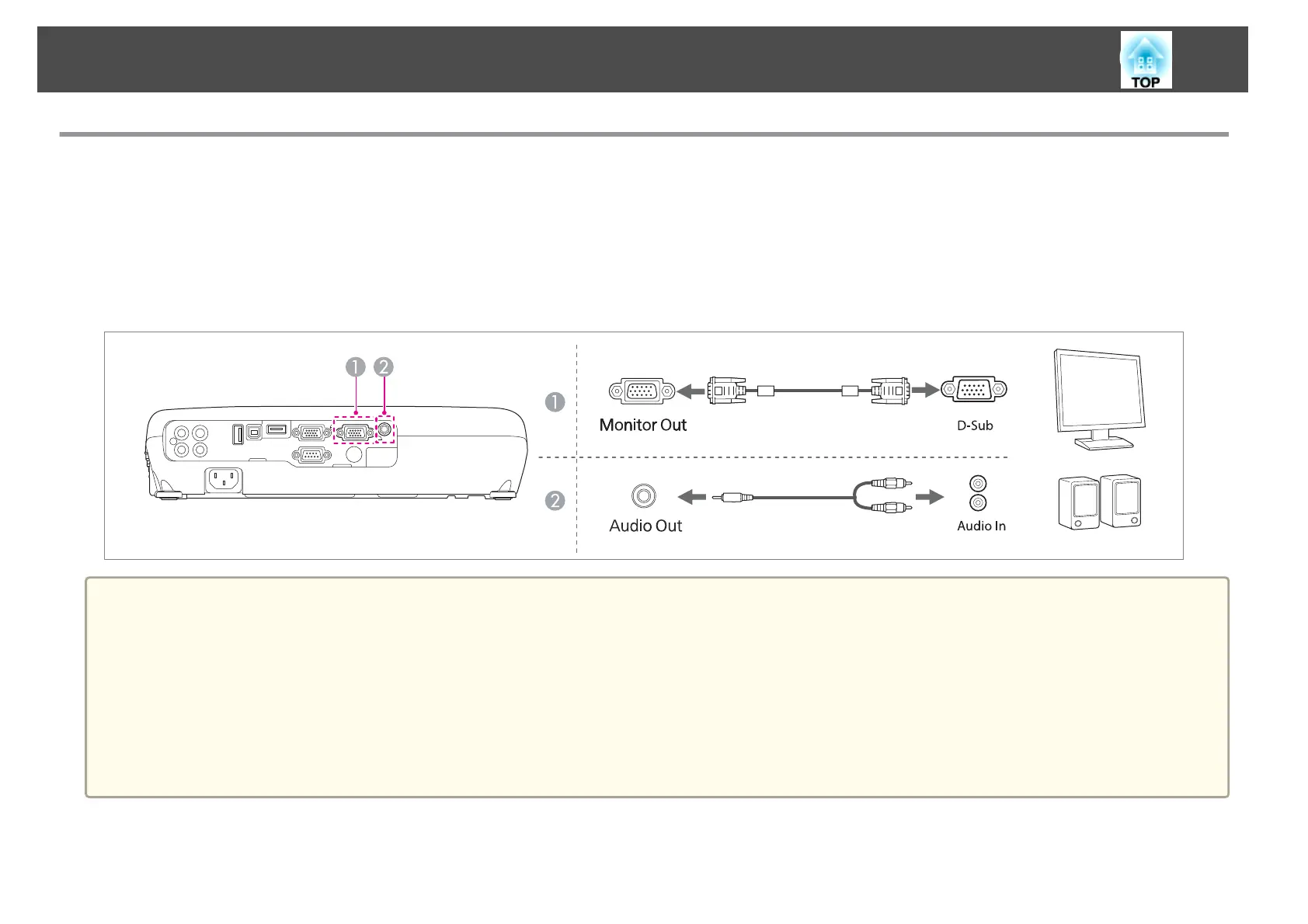

When outputting images to an external monitor
Connect the external monitor to the projector's Monitor Out/Computer2 port using the cable supplied with the external monitor.
B
When outputting audio to an external speaker
Connect the external speaker to the projector's Audio Out port using a commercially available audio cable.
a
• When outputting images to an external monitor, set Monitor Out Port to Monitor Out from the Configuration menu.
s Extended - Operation - Monitor Out Port p.78
• If you set Standby Mode to Communication On, you can output images to an external monitor even if the projector is in standby mode.
s Extended - Standby Setup - Standby Mode p.78
• Only analog RGB signals from the Computer port can be output to an external monitor. You cannot output signals input from other ports or component video
signals.
• Setting gauges for functions such as Keystone, Configuration Menu, or Help screens are not output to the external monitor.
• When the audio cable jack is inserted into the Audio Out port, audio stops being output from the projector's built-in speakers and switches to external
output.
Connecting Equipment
26

Epson EH-TW550 Specifications

General

Matrix size	0.59 \
Matrix type	3-panel (p-Si TFT active)
Native aspect ratio	16:10
Projection technology	3LCD
Contrast ratio (typical)	5000:1
Screen size compatibility	33 - 318 \
Projection distance (tele)	1.1 - 10.8 m
Projection distance (wide)	0.9 - 9 m
Projector native resolution	WXGA (1280x800)
Keystone correction, horizontal	-30 - 30 °
Focus	Manual
Offset	10 %
Focal length range	1.58 - 1.72 mm
Aperture range (F-F)	17 - 20
Lamp power	200 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
Full HD	No
HD-Ready	Yes
Color modes (2D)	Cinema, Dynamic
Video processing	17 bit
Video color modes	Cinema, Dynamic, Game, Living room
Supported 3D formats	Frame packing, Side by side, Top and bottom
HDMI version	1.4
Composite video in	1
USB connector type	USB Type-A, USB Type-B
USB 2.0 ports quantity	2
2D/3D frequency image	240 Hz
Noise level (economic mode)	29 dB
RMS rated power	2 W
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black
Market positioning	Home cinema
Cable lock slot type	Kensington
Power source	AC
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.47 W
Power consumption (typical)	311 W
Power consumption (economy mode)	258 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	243 mm
Width	325 mm
Height	77 mm
Weight	2600 g
