EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 54 Revision A
3.3 Disassembly
This section explains one of the shortest way to reach the target part to be repaired. The
parts to be removed before the titled part are in italic with their reference pages, so
remove those parts referring to their pages before starting.
3.3.1 Air Filter Assembly
1. Release the two hooks and remove the Air Filter Cover.
2. Remove the Air Filter Assembly.

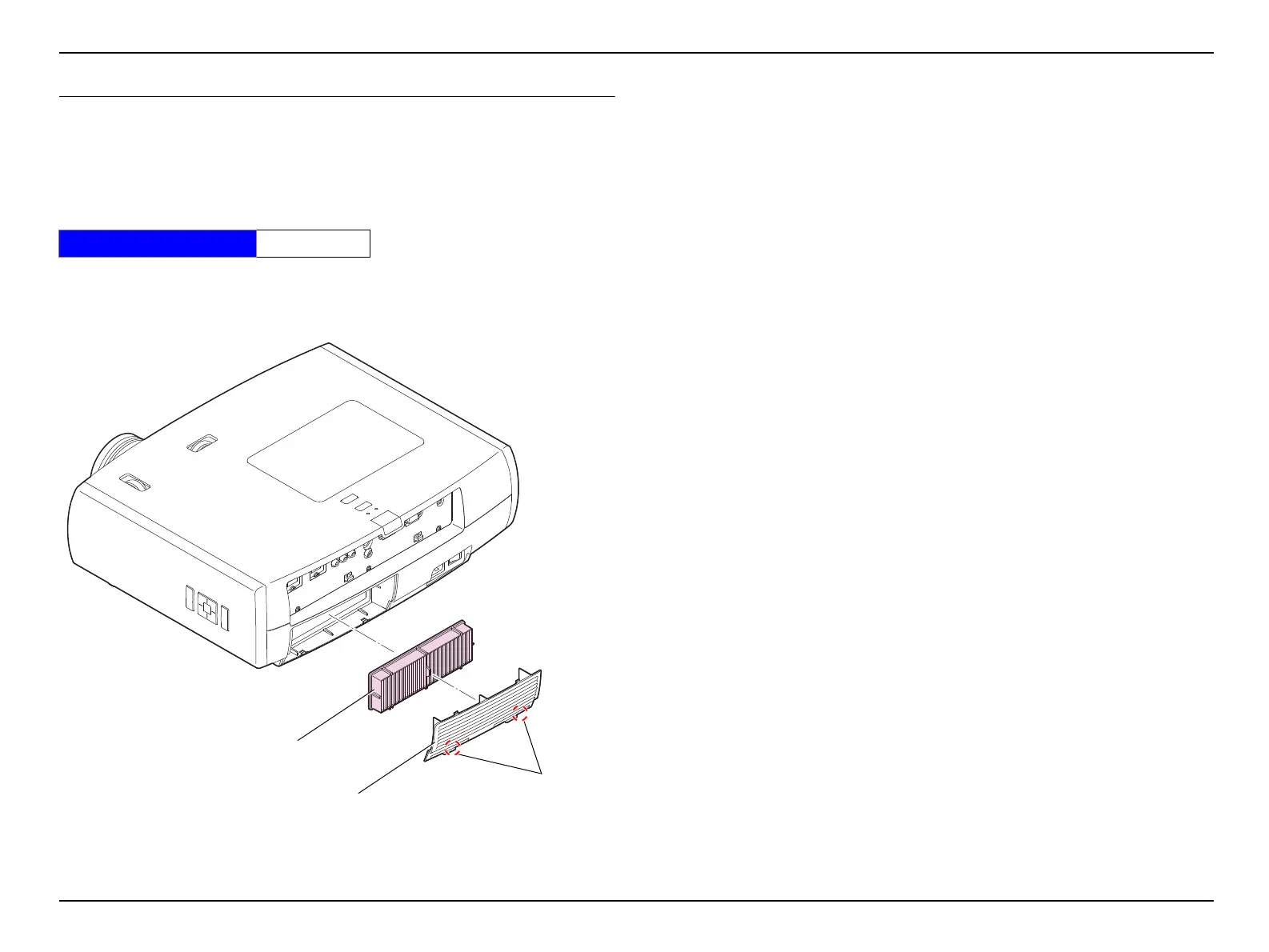

Figure 3-1.
Standard Operation Time - Min.
Air Filter Assembly
Air Filter Cover
Hooks
To Next Page
