EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 71 Revision A
3.3.8.1 IF Case
1. Remove the Lamp. (p.55)
2. Remove the Side Cover L/Side Cover R. (p.57)
3. Remove the Upper Case (assembly). (p.59)
4. Remove the MA Board (assembly). (p.68)
5. Remove the four screws, and remove the IF Case.
6. Peel off the IF Label.
7. Peel off the IF Shading Sheet.

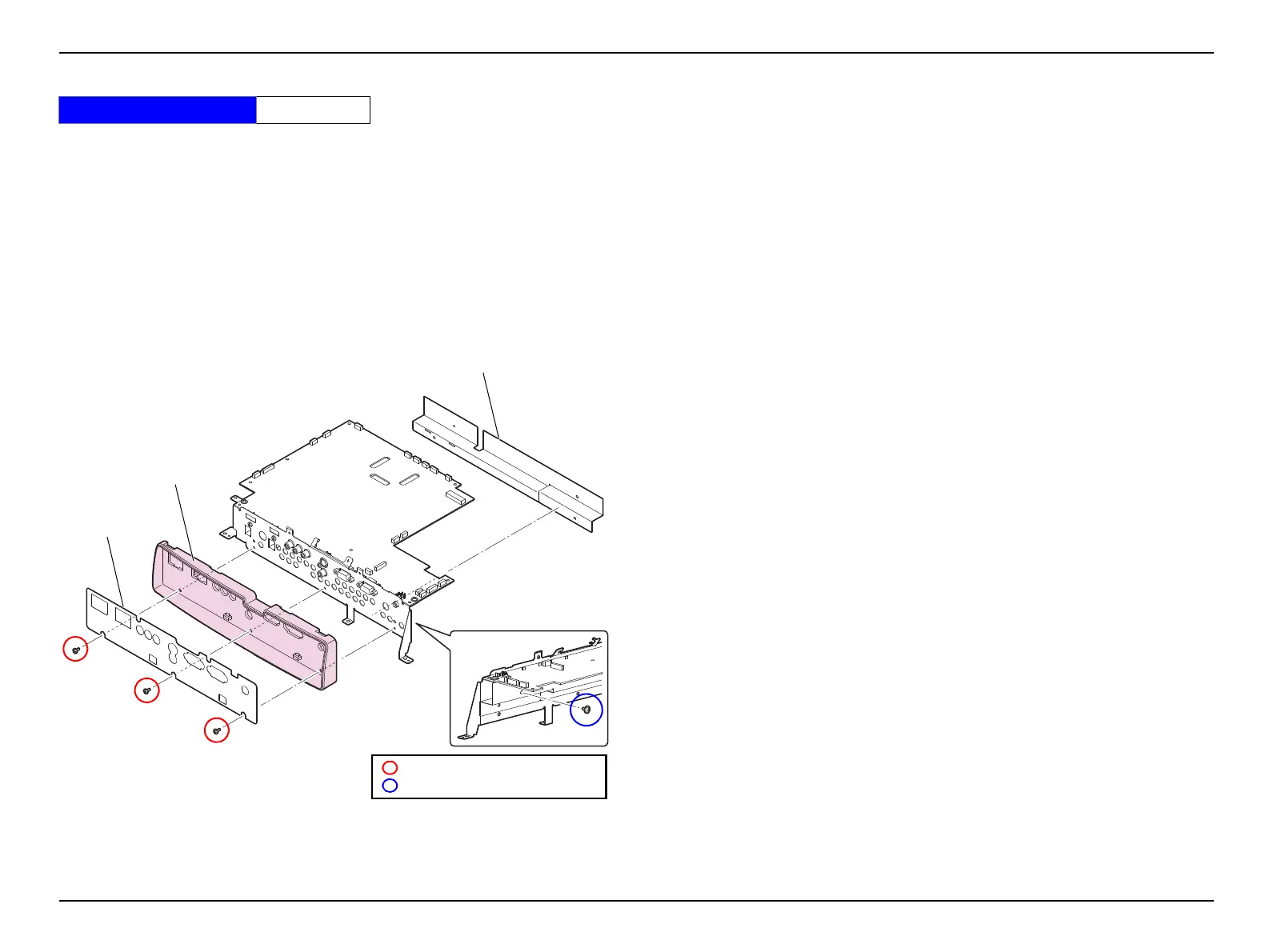

Figure 3-21.
Standard Operation Time 10 Min.
IF Label
IF Shading Sheet
IF Case
C.B.SCREW,3X6,F/ZB-3C
C.C.P-TITE SCREW,3X8,F/ZN-3C
