Epson EH-TW5500 Service Manual

EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 94 Revision A

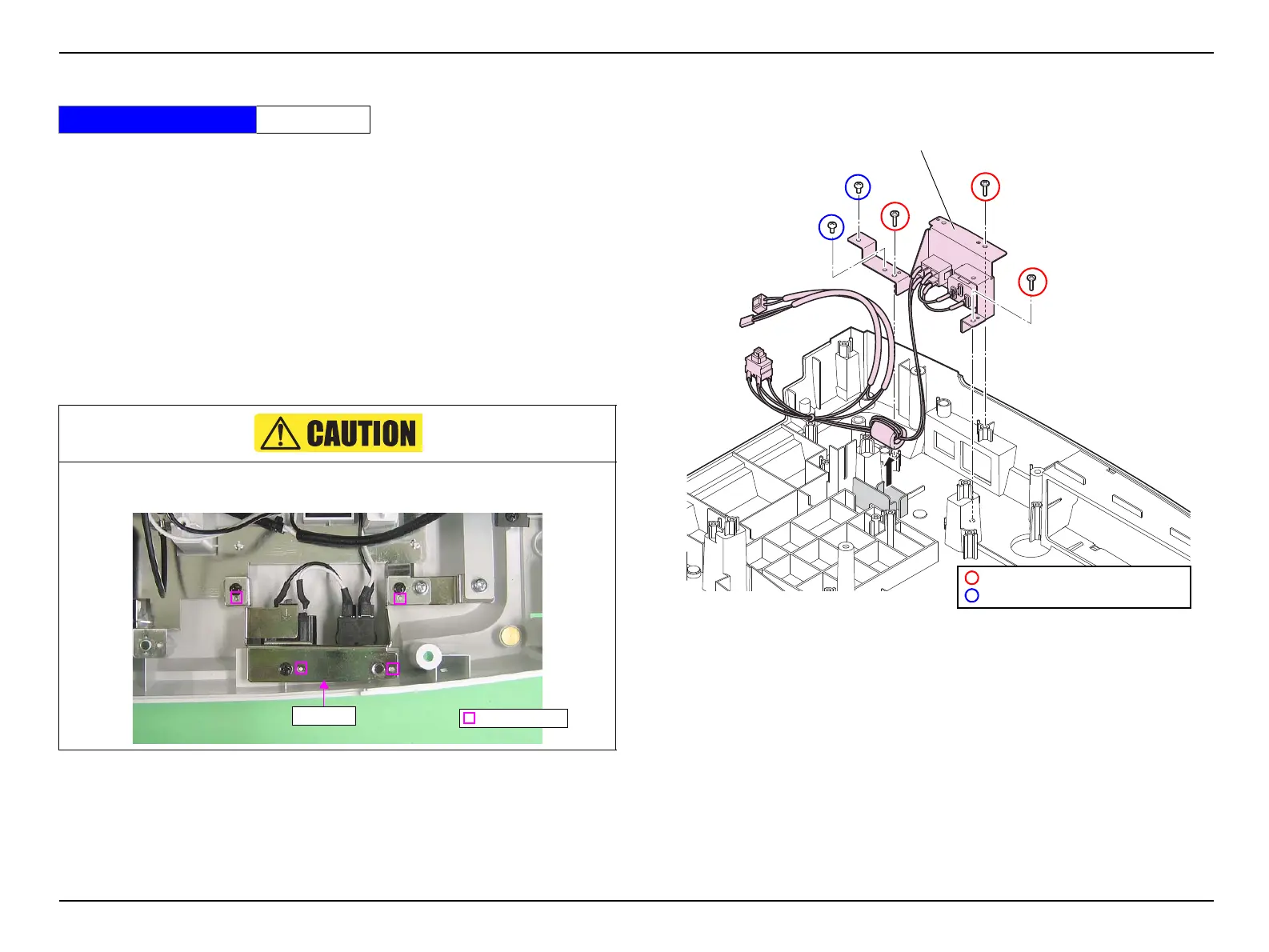

3.3.17 AC Cable
1. Remove the Air Filter Assembly. (p.54)
2. Remove the Lamp. (p.55)
3. Remove the Upper Case (assembly). (p.59)
4. Remove the MA Board (assembly). (p.68)
5. Remove the DR Board (EH-TW4500/5500 series only). (p.73)
6. Remove the Optical Engine (assembly). (p.75)
7. Remove the Lamp Fan. (p.83)
8. Remove the PS Fan. (p.67)
9. Remove the Inner EX Duct. (p.90)
10. Remove the five screws and remove the AC Cable.
Figure 3-41.
Standard Operation Time 19 Min.
When removing the AC Cable, take care not to damage the positioning pins (x4)
on the Lower Case shown below.
AC Cable
Positioning pin
AC Cable
C.B.P-TITE SCREW,3X10,F/ZB-3C
C.P.(O)SCREW,4X6,F/NI
