EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 95 Revision A

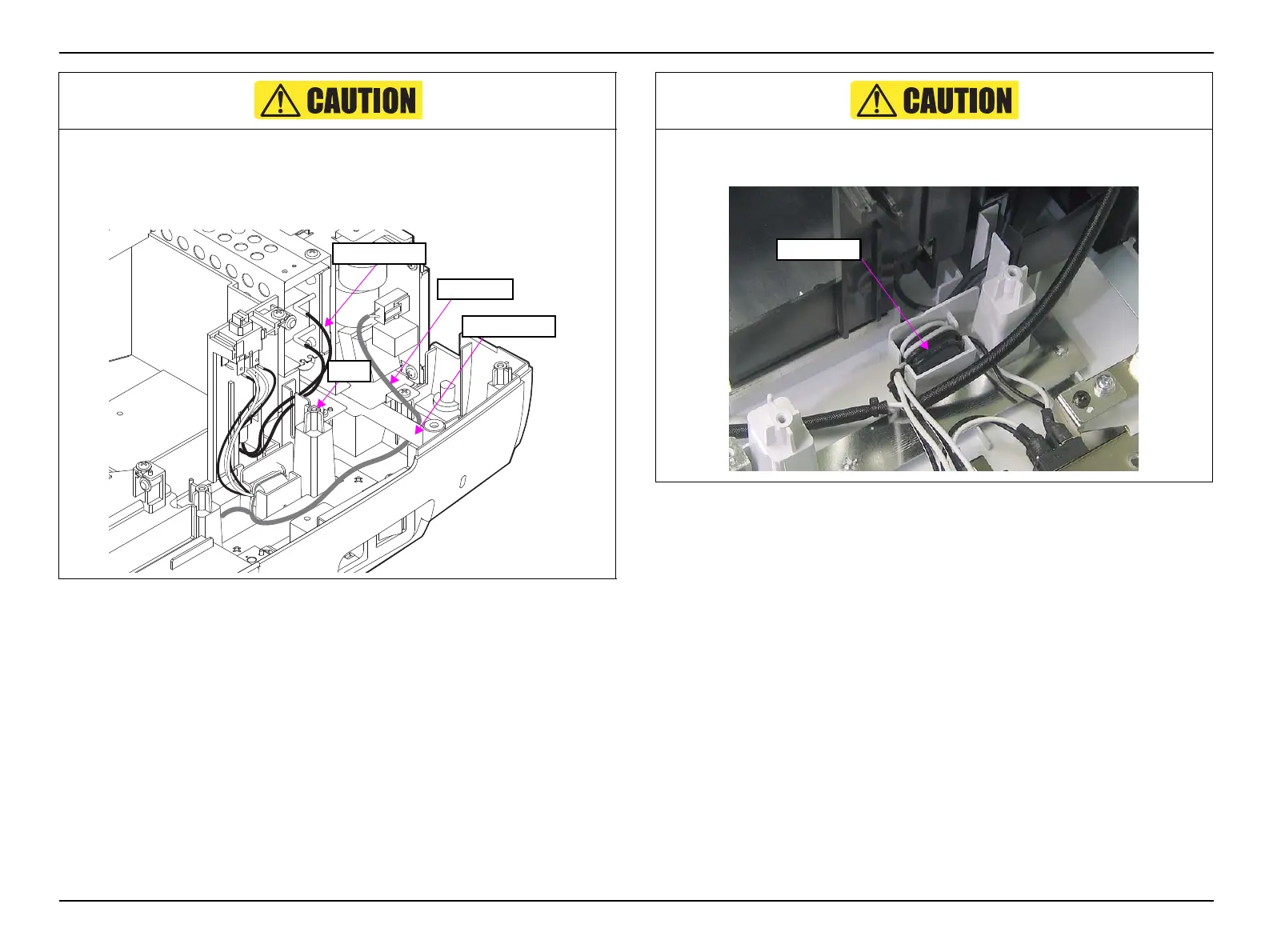

When installing the AC Cable, make sure of the following.
Route the AC Cable under the shield plate.
So as not to cross the AC Cable and the Lamp cable, route them in front and
in the rear of the screw boss.
Lamp cable
Boss
Shield plate
AC Cable
Secure the ferrite core of the AC Cable firmly into the attachment location
of the Lower Case.
