Epson EH-TW5500 Service Manual

EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 83 Revision A
3.3.10 Lamp Fan
1. Remove the Lamp. (p.55)
2. Remove the Side Cover L/Side Cover R. (p.57)
3. Remove the Upper Case (assembly). (p.59)
4. Remove the MA Board (assembly). (p.68)
5. Remove the LC Switch from the Inner EX Duct.

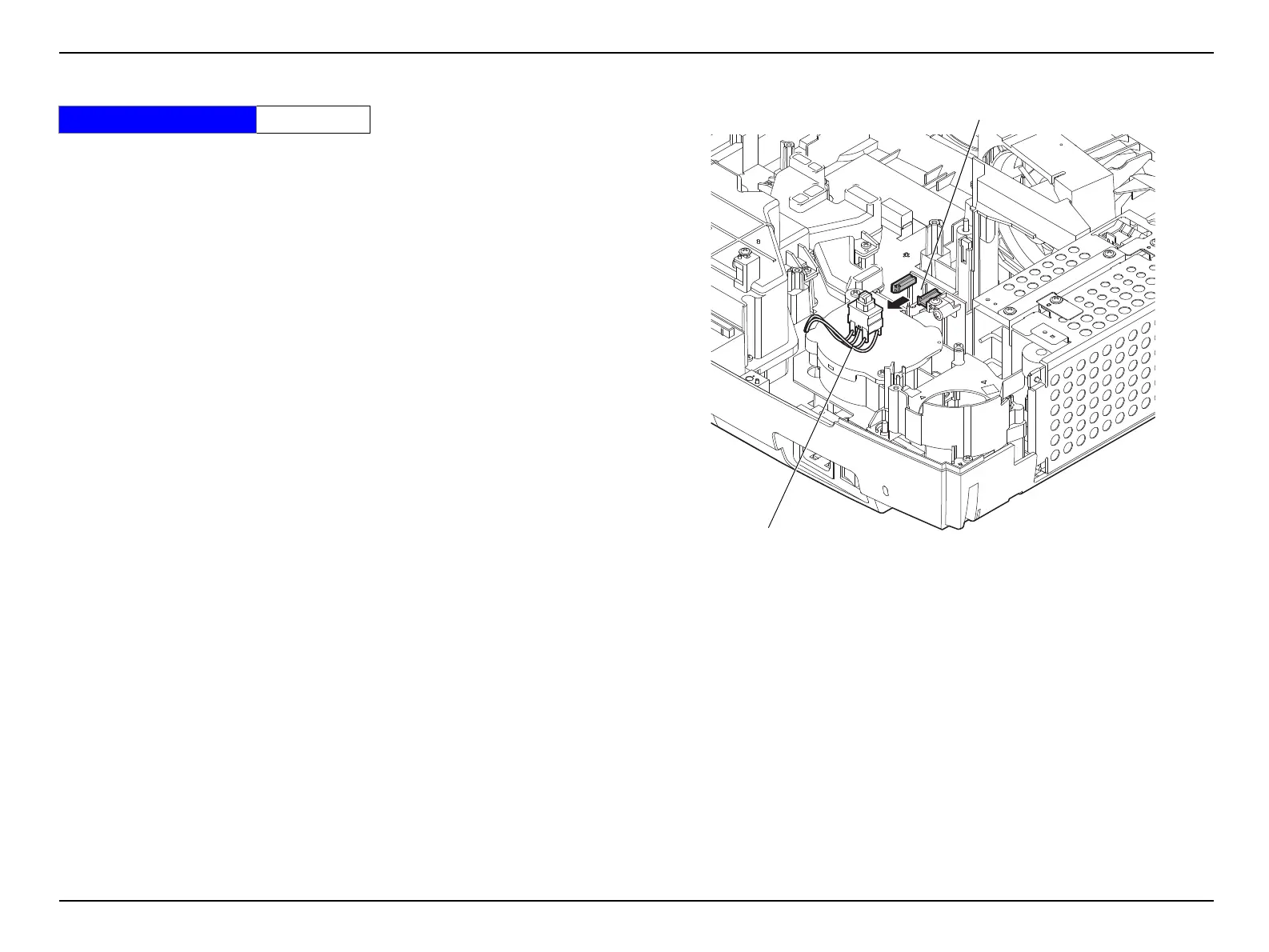

Figure 3-31.
Standard Operation Time 11 Min.
LC Switch
Inner EX Duct
