EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 57 Revision A
3.3.4 Side Case L/Side Case R
1. Remove the two screws and remove the Side Case L from the Upper Case.
2. Remove the three screws.
3. Disconnect the SW2 Cable from the SW2 Board and remove the Side Case R from
the Upper Case.

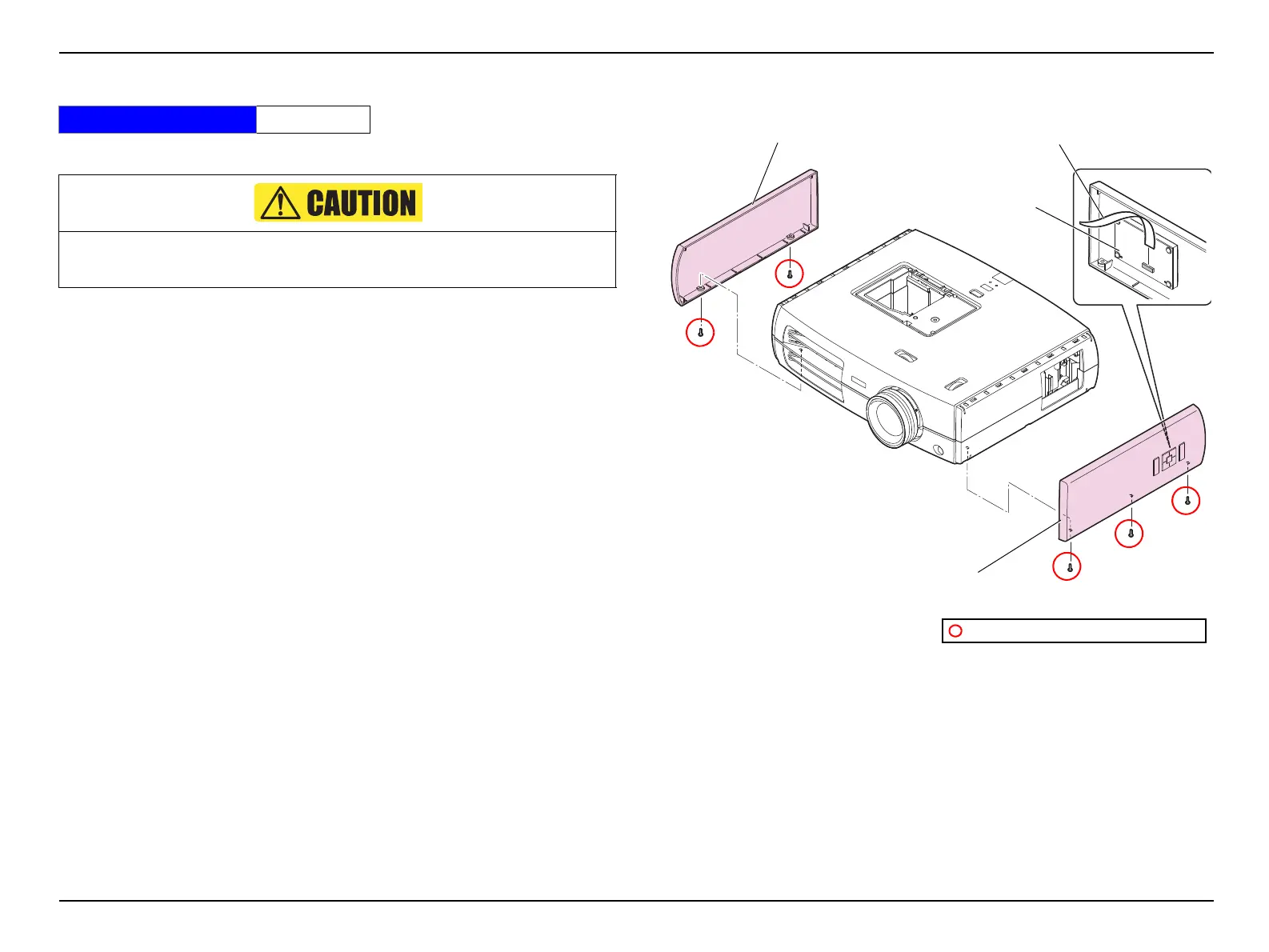

Figure 3-5.
Standard Operation Time 1 Min.
In the next step, make sure not to pull away the Side Case R too far because the
cables are connected to it.
SW2 Board
Side Case L SW2 Cable
Side Case R
C.B.P-TITE SCREW,4X10,F/ZB-3C
To Next Page
