Epson EH-TW5500 Service Manual

EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 64 Revision A

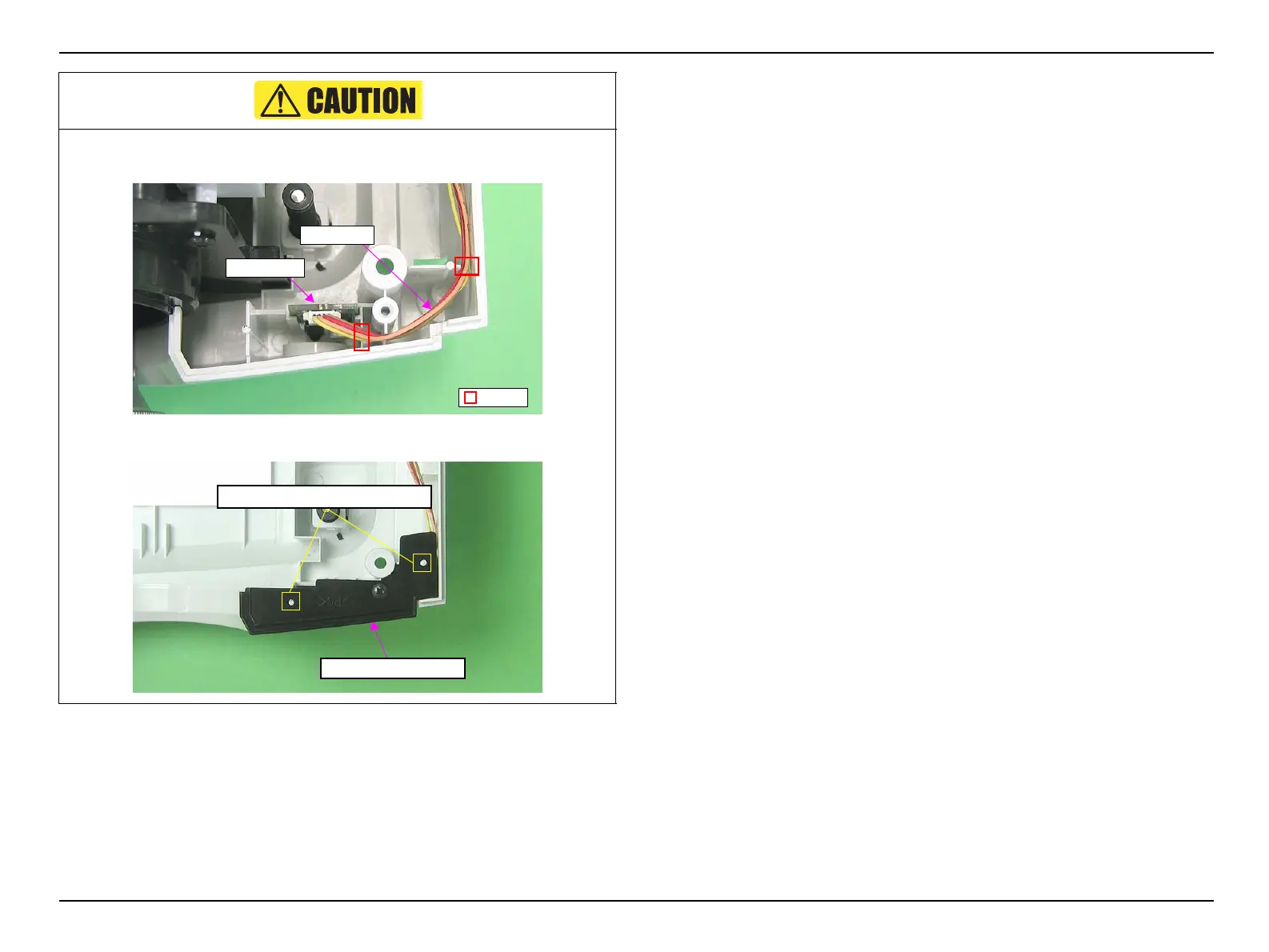

 When installing the RCF Board, route the RCF Cable into the grooves (x2)
on the Lower Case shown below.
 When installing the Decoration Plate R, make sure to align the positioning
holes (x2) with the guide pins (x2) on the Lower Case.
RCF Board
Groove
RCF Cable
Positioning holes and guide pins
Decoration Plate R
