Epson EH-TW5500 Service Manual

EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 69 Revision A
 EH-TW4500/5500 series’s Case

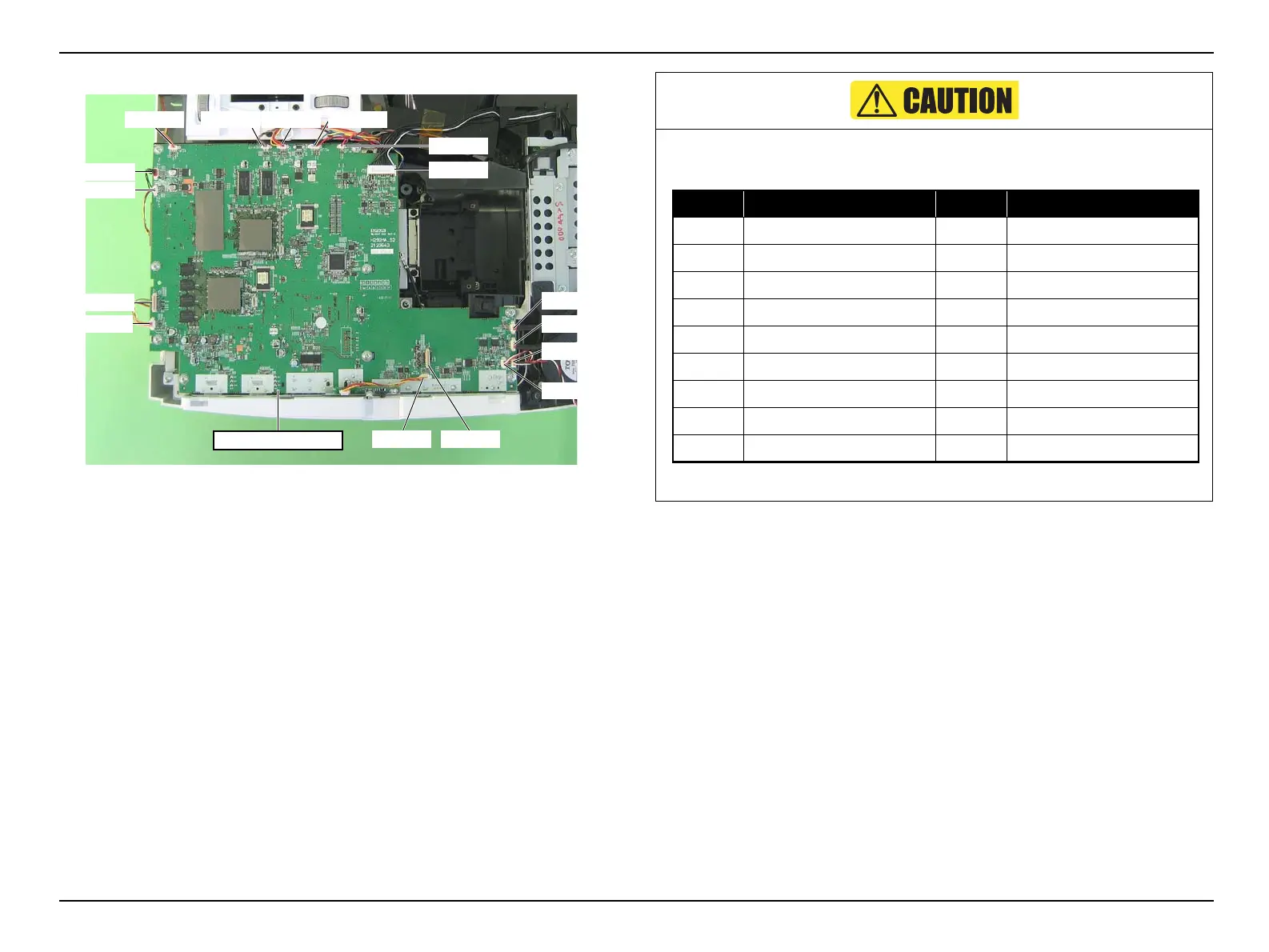

Figure 3-18.
CN1901
CN1700
CN1708
CN1905
CN1710
CN1707 CN1704
CN2100
CN1703
CN1701
CN1702
CN1903
CN1709
CN1705
CN1902 CN1904
MA Board (assembly)
Reference
Note* : CN1302 is located on the back of the board.
Table 3-3. Connector No. and its destination (EH-TW4500/5500 series)
CN No. Destination CN No. Destination
CN1302* DR Board CN1903 Ballast Assembly (SCI)
CN1700 Light Valve TH CN1904 SW1 Board
CN1701 TH Board (2) CN1901 RCF Board
CN1705 Lamp Fan CN1902 RCR Board
CN1707 EX Fan CN1905 SW2 Board
CN1708 INT Fan CN1703 CF Motor
CN1709 PS Fan CN1704 CF Switch
CN1702 TH Board (PS Ballast) CN2100 Power Assembly
CN1710 TH Board (1)
