EH-TW3500/4500/5500 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 88 Revision A
11. Remove the following parts from the INT Fan.
• INT Seal A
•INT Cushion
• Light Valve Cushion

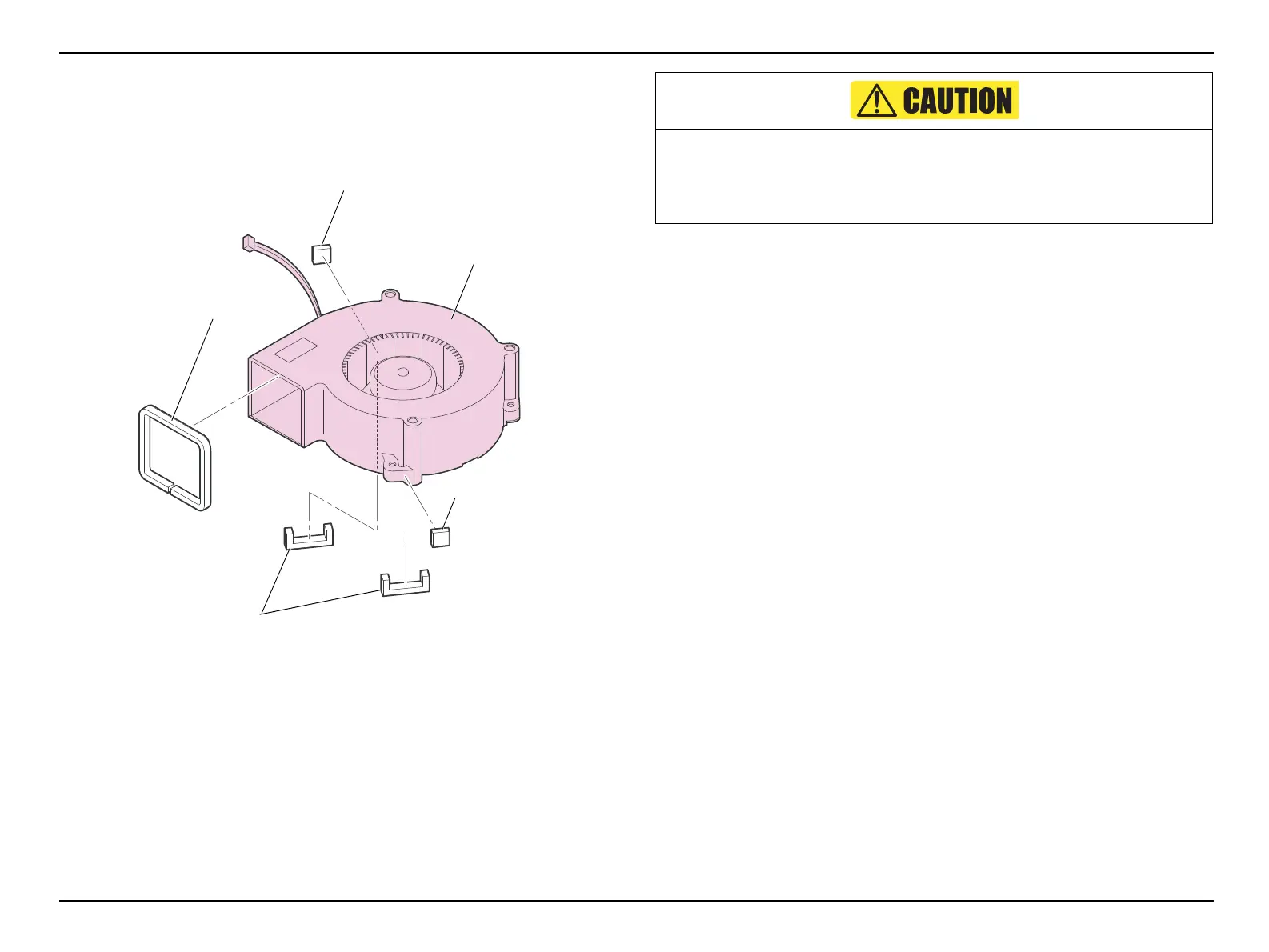

Figure 3-35.
INT Fan
Light Valve
Cushion
INT Cushion
INT Seal A
INT Seal A
 When reassembling the INT Fan, do not re-use the old INT Seal A or INT
Cushion, but make sure to use new ones.
 When attaching the INT Seal B2 to the INT Fan (assembly), do not use the
old one, but make sure to use a new one.
