Epson EH-TW6700W User Manual

Preparing
18

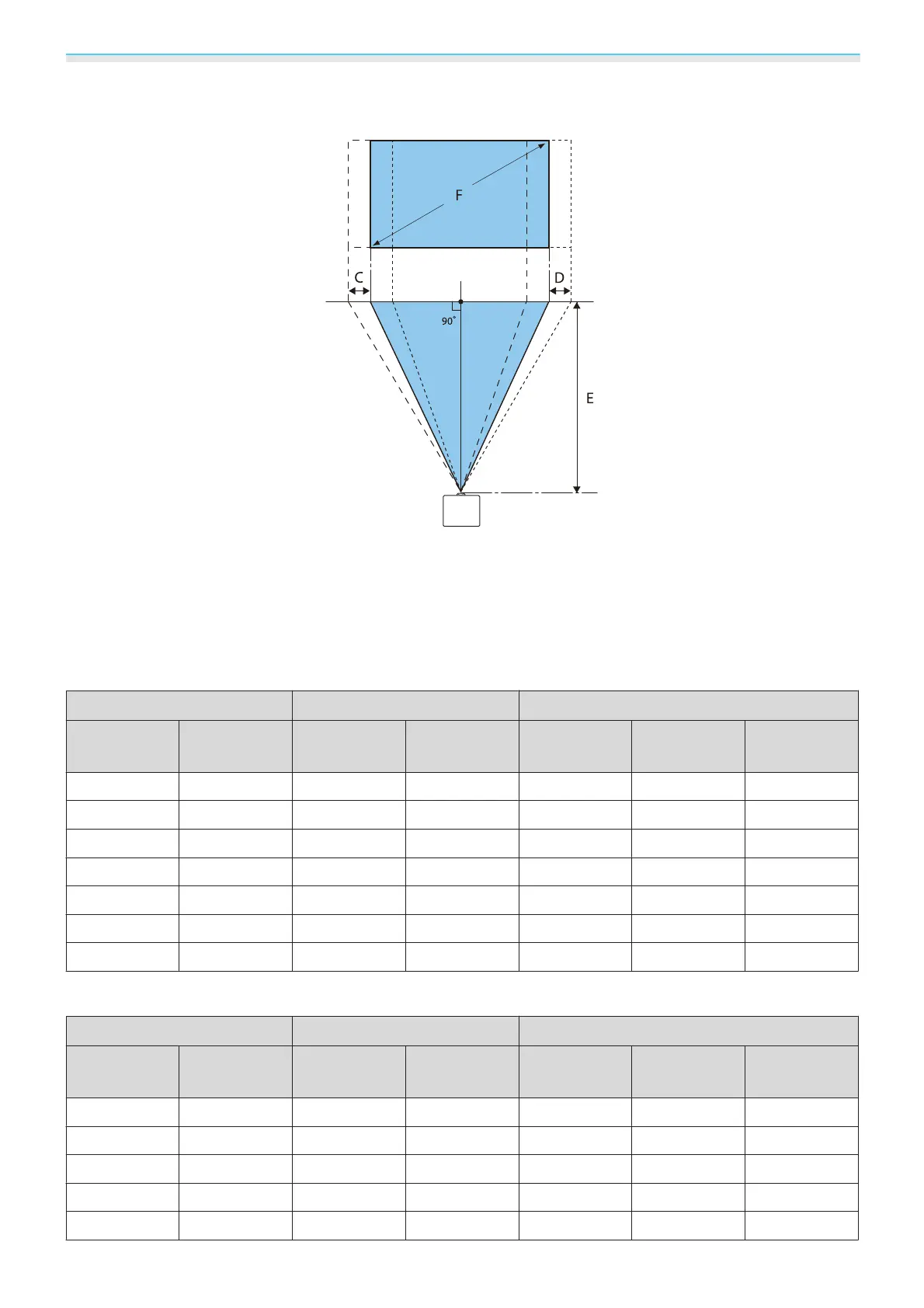

When adjusting the projection position horizontally in lens shift
C
：
Lens center movement distance when the projector is moved (when lens shift is set to maximum left)
D
：
Lens center movement distance when the projector is moved (when lens shift is set to maximum right)
E
：
Projection distance from the projector to the screen
F
：
Size of the projected image
Unit: cm
16:9 Screen Size Projection Distance (E) Lens Shift Maximum Values
*
F W x H Minimum
(Wide)
Maximum
(Tele)
Distance
(A)
Distance
(B)
Distance
(C, D)
40" 89 x 50 116 190 5 55 21
60" 130 x 75 176 286 7 82 32
80" 180 x 100 235 382 10 110 43
100" 220 x 120 295 478 12 137 53
120" 270 x 150 354 575 15 164 64
150" 330 x 190 443 719 19 205 80
180" 440 x 250 532 863 22 247 96
Unit: cm
4:3 Screen Size Projection Distance (E) Lens Shift Maximum Values
*
F W x H Minimum
(Wide)
Maximum
(Tele)
Distance
(A)
Distance
(B)
Distance
(C, D)
40" 81 x 61 143 233 6 67 26
60" 120 x 90 216 351 9 101 39
80" 160 x 120 288 468 12 134 52
100" 200 x 150 361 586 15 168 65
120" 240 x 180 434 704 18 201 78
