Adjusting the Projection Size
The size of the projection increases as the projector is moved away from the screen. Use the table below to
setup the projector at the optimum position from the screen. The values given here are for your reference only.

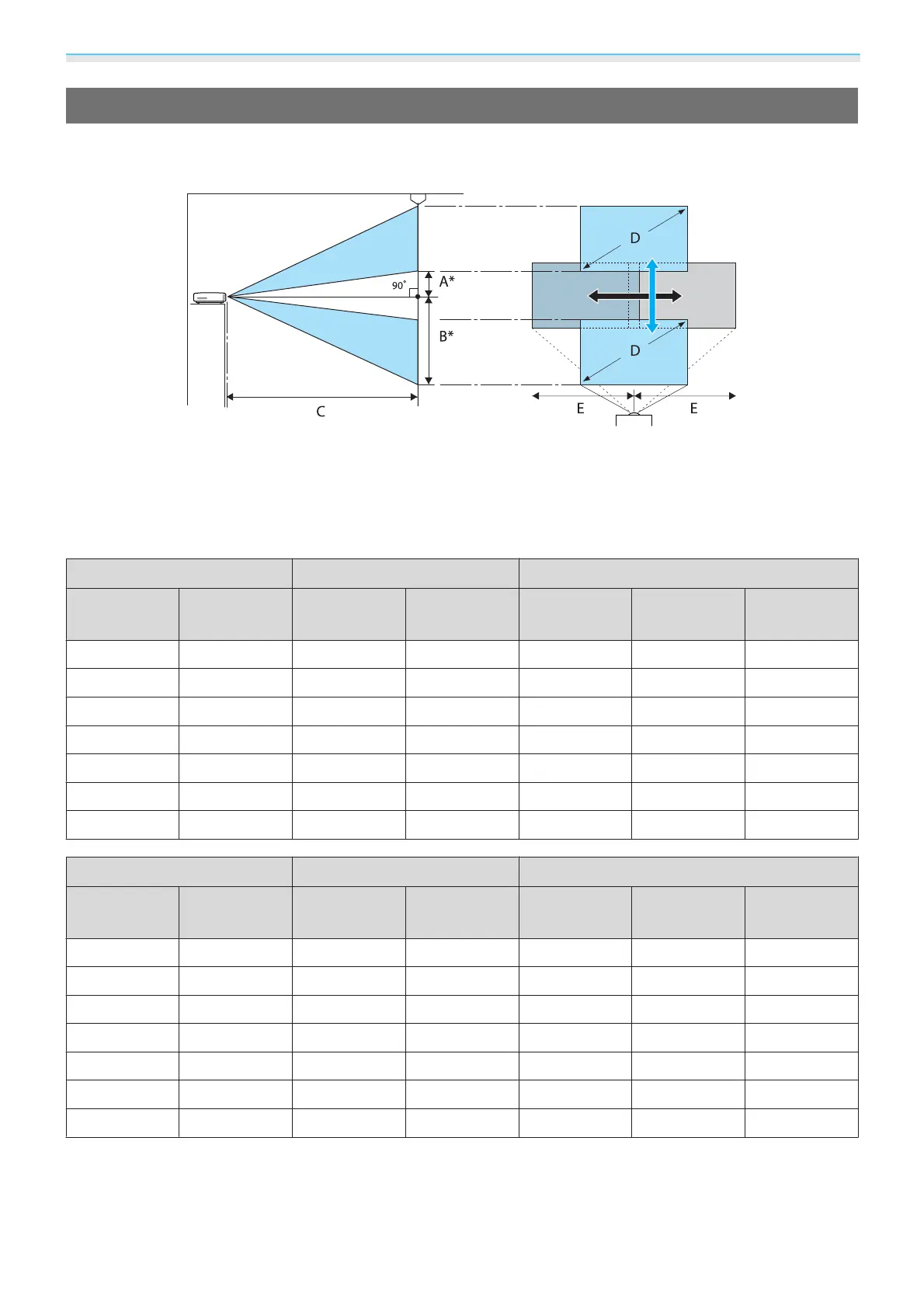

* Distance from the center of the lens to the edge of the projected image.
(A: When lens shift is raised to its highest level)
(B: When lens shift is lowered to its lowest level)
(E: When lens shift is moved to the far right or far left)
Unit: cm
16:9 Screen Size Projection Distance (C) Lens Shift Maximum Values
*
D W x H Minimum
(Wide)
Maximum
(Tele)
Distance (A) Distance (B) Distance (E)
40" 89 x 50 117 252 23 73 42
60" 130 x 75 177 380 34 109 63
80" 180 x 100 238 508 46 145 83
100" 220 x 120 298 636 57 181 104
120" 270 x 150 359 764 68 218 125
150" 330 x 190 450 956 85 272 156
180" 440 x 250 540 1148 103 327 188
4:3 Screen Size Projection Distance (C) Lens Shift Maximum Values
*
D W x H Minimum
(Wide)
Maximum
(Tele)
Distance (A) Distance (B) Distance (E)
40" 81 x 61 144 309 28 89 51
60" 120 x 90 218 466 42 133 76
80" 160 x 120 292 623 56 178 102
100" 200 x 150 366 779 70 222 127
120" 240 x 180 440 936 84 267 153
150" 300 x 230 551 1171 105 333 191
200" 410 x 300 736 1562 139 444 255
*
You can only adjust to the maximum value when moving in one direction. The values are reduced when moving
in a combination of directions.
