Epson FX-890II User Manual

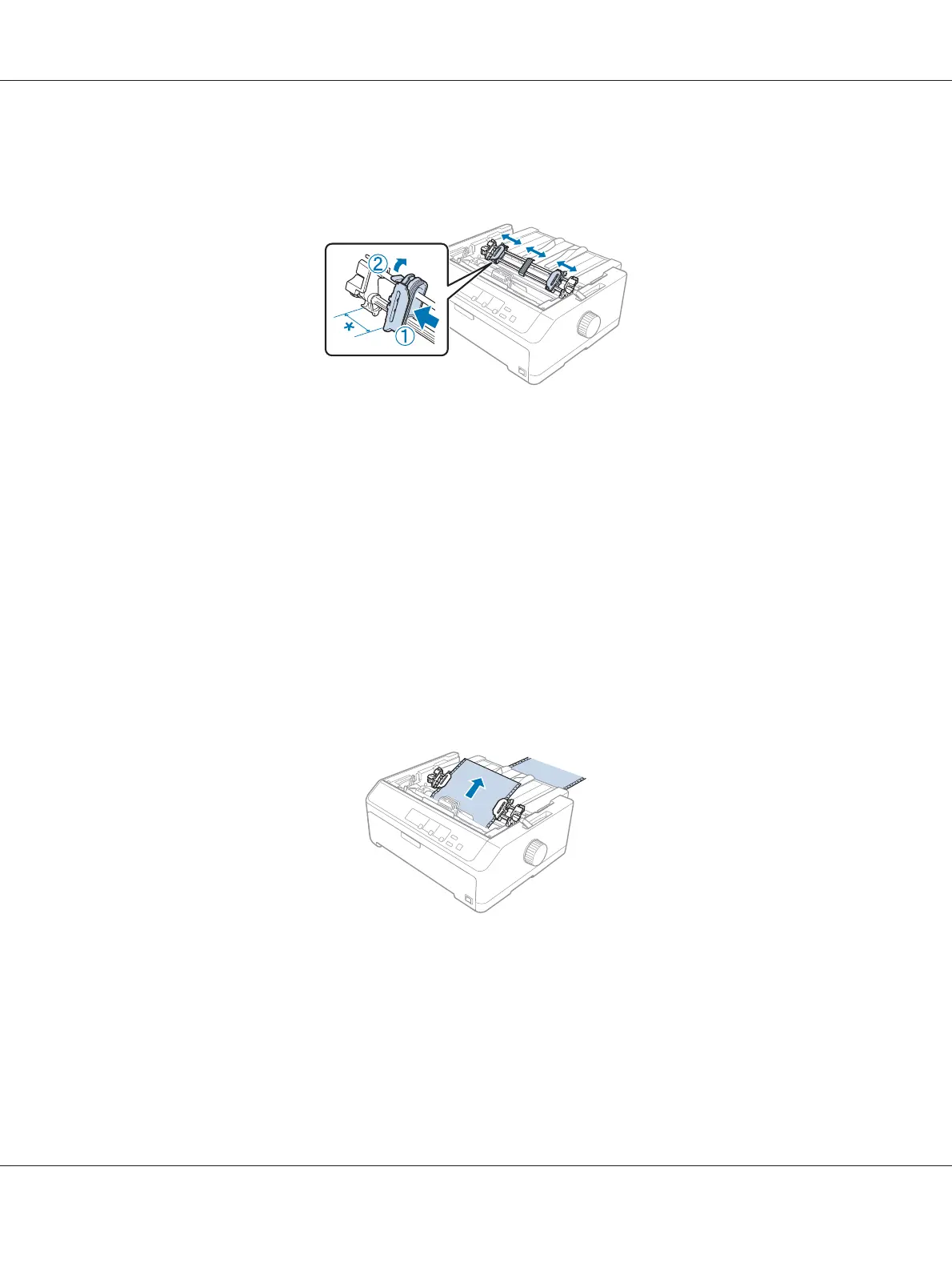

4. Slide the left sprocket approximately 12 mm (0.5 inch) from the far left position and push the lever
back to lock it in place. Then slide the right sprocket to match the width of your paper, but do not
lock it.
* approx. 12 mm (0.5 inch)
5. Make sure your paper has a clean, straight edge. Then open the sprocket covers.
Note:
Make sure the printer is off before you insert the paper in the paper slot. If you insert the paper while it
is on, a paper jam may occur.
6. Insert the paper into the rear, front, or bottom paper slot as shown in the illustration below until it
emerges between the platen and the ribbon guide. Then pull up the paper until the perforation
between the first and second pages is even with the top of the printer’s ribbon.
Rear slot:
Load paper in the rear slot with the printable side facing up.
FX-890II/FX-890IIN/FX-2190II/FX-2190IIN User’s Guide
Paper Handling 35

Epson FX-890II Specifications

General

Color	No
Character sets	ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Character pitch	10 cpi
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum print speed (LQ)	115 cps
Maximum print speed (draft)	463 cps
Maximum printing width (columns)	80
Product color	Black
Page description languages	ESC P, PPDS
Sound pressure level (printing)	55 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Mean time between failures (MTBF)	20000 h
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 60 %
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Cut sheet thickness range	0.12 - 0.46 mm
Continuous paper thickness range	0.46 - 0.46 mm
Standard interfaces	Parallel, USB 2.0

Weight and Dimensions

Depth	376 mm
Width	437 mm
Height	177 mm
