Epson FX-890II User Manual

Chapter 3

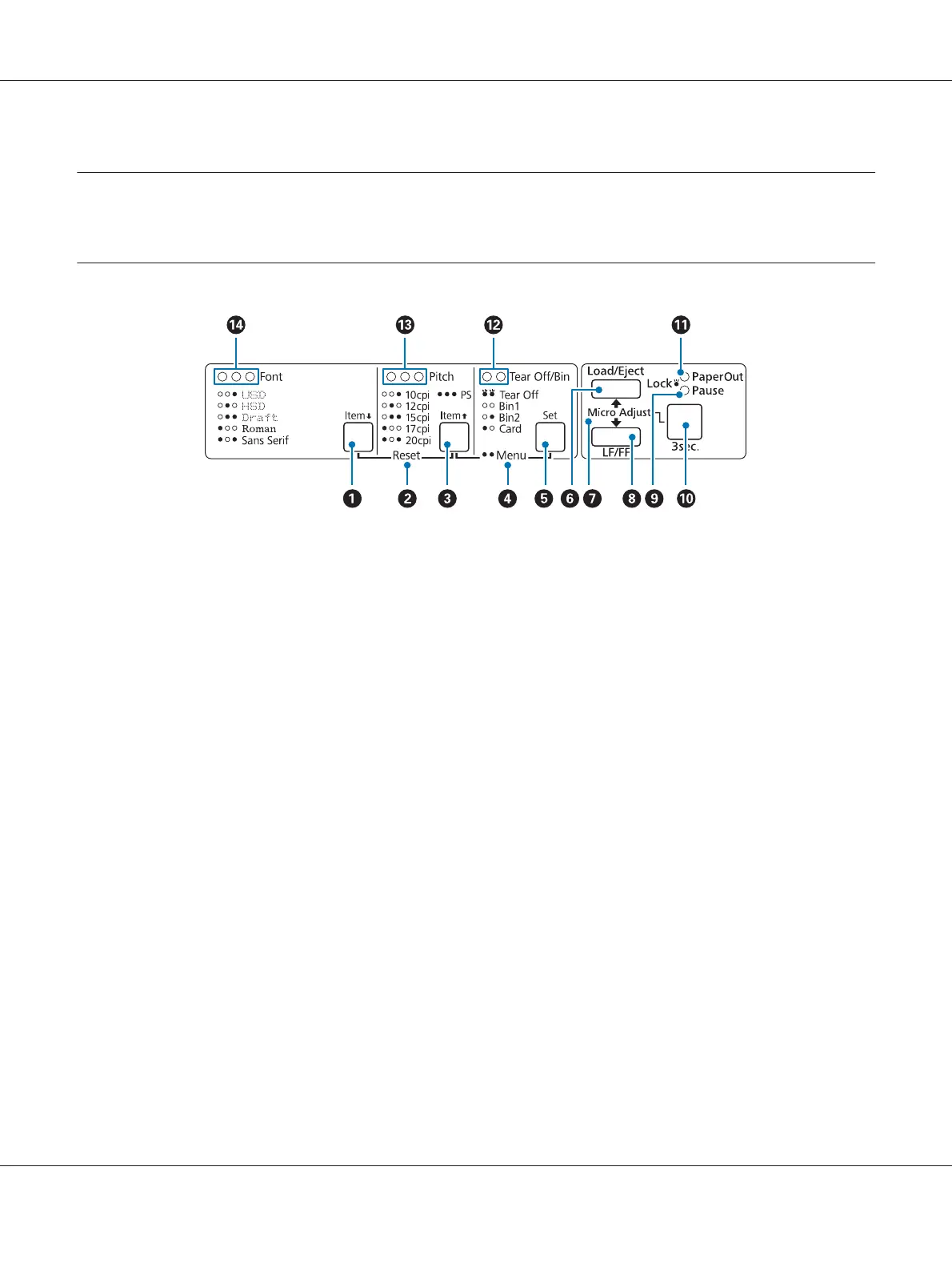

Control Panel
Buttons and Lights
1. Font (Item D ) button
❏ Selects one of the fonts. To select a font, see “Selecting a Font and Pitch” on page 90.
❏ When the printer enters the Default Setting mode, the button works as an ItemD button. You can
press the ItemD button to select the next menu. See “Changing default settings” on page 97.
2. Reset
When you press both the Font and Pitch buttons simultaneously, the printer clears buffer and returns
to its default settings.
3. Pitch (Item U ) button
❏ Selects one of the pitch settings. To select a pitch, see “Selecting a Font and Pitch” on page 90.
❏ When the printer enters the Default Setting mode, the button works as an ItemU button. You can
press the ItemU button to select the previous menu.
4. Menu
❏ When you press the Pitch and Tear Off/Bin buttons at the same time, the printer enters or exits
the Default Setting mode and you can set the various printer settings. See “About Your Printer’s
Default Settings” on page 92.
FX-890II/FX-890IIN/FX-2190II/FX-2190IIN User’s Guide
Control Panel 88

Epson FX-890II Specifications

General

Color	No
Character sets	ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Character pitch	10 cpi
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum print speed (LQ)	115 cps
Maximum print speed (draft)	463 cps
Maximum printing width (columns)	80
Product color	Black
Page description languages	ESC P, PPDS
Sound pressure level (printing)	55 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Mean time between failures (MTBF)	20000 h
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 60 %
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Cut sheet thickness range	0.12 - 0.46 mm
Continuous paper thickness range	0.46 - 0.46 mm
Standard interfaces	Parallel, USB 2.0

Weight and Dimensions

Depth	376 mm
Width	437 mm
Height	177 mm
