Epson FX-890II User Manual

FX-890II/FX-890IIN: A4 or 8 inches continuous paper
FX-2190II/FX-2190IIN: A3 Rotated or 13.6 inches continuous paper
Note:

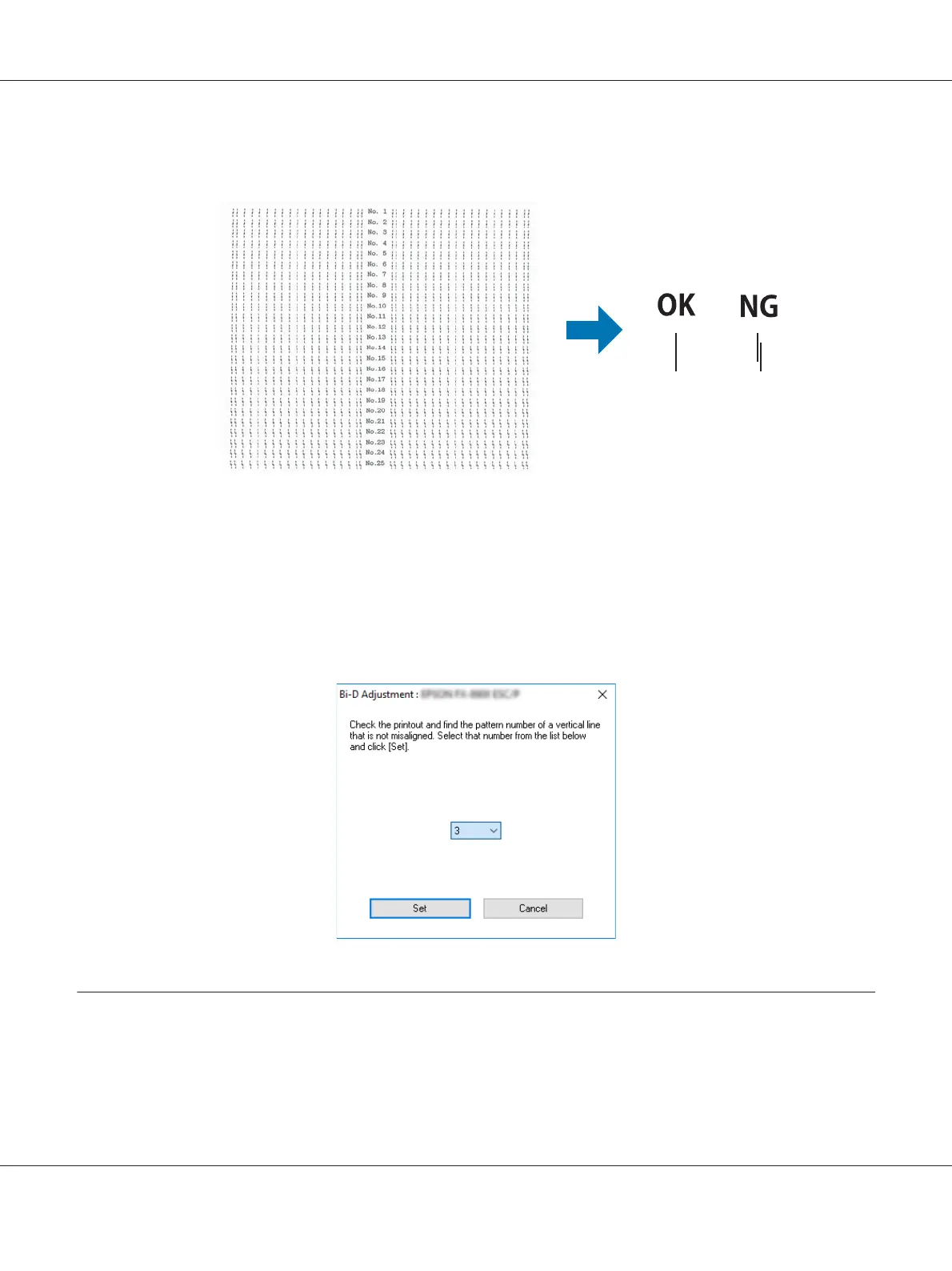

The image on the right above is an example of good and bad patterns in the print results.
4. Look at the adjustment patterns and find the vertical line that is aligned the best. Then, select the
corresponding line number in the Bi-D Adjustment window.
5. Click Set. The adjustment value will be stored in the printer.
Using Printer Setting
This utility tool allows you to display current settings stored in the printer, change settings of the
printer, and read settings stored in the file or save settings to the file.
FX-890II/FX-890IIN/FX-2190II/FX-2190IIN User’s Guide
Printer Software 74

Epson FX-890II Specifications

General

Color	No
Character sets	ISO 8859-15, Italic, PC437, PC850, PC858, Roman 8
Character pitch	10 cpi
Built-in barcodes	CODABAR (NW-7), Code 128 (A/B/C), Code 39, Industrial 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum print speed (LQ)	115 cps
Maximum print speed (draft)	463 cps
Maximum printing width (columns)	80
Product color	Black
Page description languages	ESC P, PPDS
Sound pressure level (printing)	55 dB
AC input voltage	120 V
AC input frequency	50 - 60 Hz
Mean time between failures (MTBF)	20000 h
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	30 - 60 %
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR
Cut sheet thickness range	0.12 - 0.46 mm
Continuous paper thickness range	0.46 - 0.46 mm
Standard interfaces	Parallel, USB 2.0

Weight and Dimensions

Depth	376 mm
Width	437 mm
Height	177 mm
